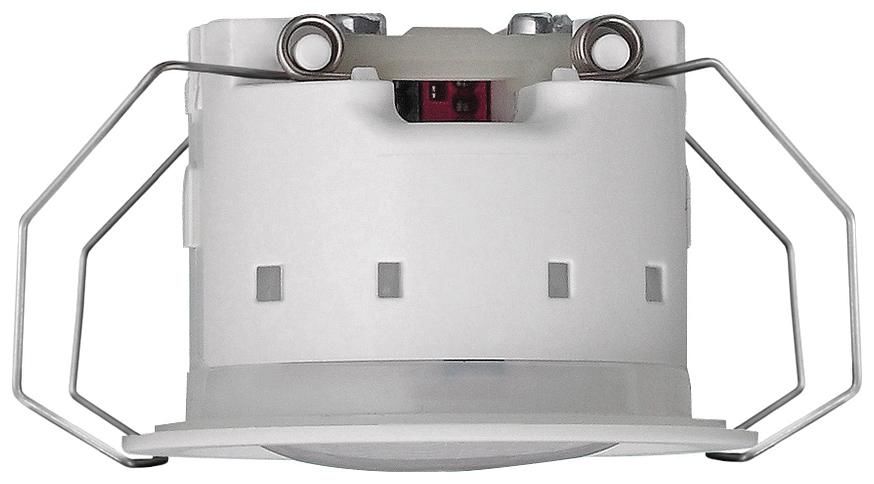

Gira 222500 Mini presence detector Comfort, KNX

Presence detector Mini Komfort for KNX presence detectors for presence monitoring (operating mode: presence detector), for motion detection (operating mode: ceiling monitor) or for monitoring by means of message telegrams (operating mode: detector) indoors or outdoors. The discreet design, the particularly flat construction and the flexible installation concept make the Mini presence detectors ideal for objects with high architectural demands. Features: Extremely flat installation. Clamp mounting on suspended ceilings. Ceiling mounting on solid ceilings in device box according to DIN 49073 using optional accessories. Surface mounting in surface-mounted device box (optional accessories). Protection class IP44 enables installation outdoors or in damp rooms. Design ring that can be painted over enables the color to be matched to the wall or ceiling. After removing the design ring, all operating elements (e.g. programming button) of the device can be easily reached from the front. This means that no removal is necessary for subsequent adjustment or programming via the ETS. Ceiling-mounted device with integrated KNX bus connection. PIR sensors: three sensors, integrated brightness sensor. Sensitivity of motion detection can be manually adjusted using the adjuster. Sensitivity can be configured using ETS. Sensitivity adjuster on the device can be deactivated using software. Display of motion detection (permanent or only in the walking test). Separate evaluation in the long-range of the three PIR sensors, each with a 120 detection range with overlap. Manual operation using IR remote control. A maximum of 5 + 2 function blocks can be configured. Function blocks 1 to 5 each have an adjustable function: ceiling monitor, presence detector, reporting mode. Function block 6: presence detector with light control. Function block 7: brightness sensor with limit value monitoring. Function block switching, e.g. for daytime or nighttime operation or weekday or weekend operation. Function blocks 1 to 5: individual device, main unit, extension unit adjustable. Adjustable operating mode with individual device as main unit: automatic, semi-automatic (manual ON automatic OFF or automatic ON manual OFF). Two outputs per function block (1 to 5) for ceiling monitor, presence detector function. Functions of ceiling monitor, presence detector per output: switching, staircase function, switching with forced position, dimming value transmitter, light scene extension, temperature value transmitter, brightness value transmitter, temperature operating mode. Ceiling monitor, presence detector: adjustable twilight level, twilight level via external communication object or via teach-in, additional transmission delay via external communication object, adaptive follow-up time (self-learning additional transmission delay), short-term presence function, feedback of twilight level, locking function, manual operation via touch sensor (separate communication object), switch-off brightness (with presence detector) via teach-in, measurement of the time period after the last movement. Function of presence detector with light control:Combination with presence detector function block or individual device, setpoint adjustable, setpoint specification via external communication object, setpoint shift via external communication object, teach-in function, feedback of the effective setpoint. Brightness sensor function with limit value monitoring: up to three limit values can be configured, switching functions, dimming value transmitter, light scene extension, hysteresis can be configured, limit value via external communication object or teach-in, locking function. Integrated temperature sensor for measuring the room temperature (from index level I02). Notes: The Mini presence detector is not suitable for alarm messages in VdS-compliant alarm systems.
Type: 222500
