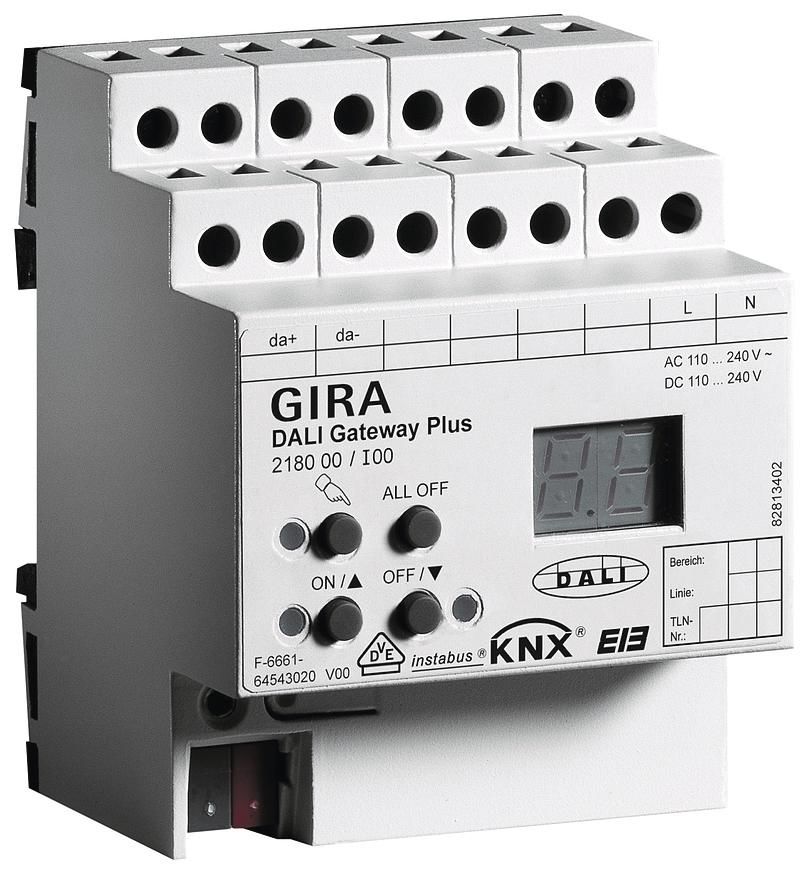

GIRA 218000 DALI Gateway Plus KNX EIB REG

DALI Gateway Plus for KNX REG plus Features: Compatible with DALI and DALI-2 standards. The DALI Gateway Plus forms the interface between a KNX installation and a digital DALI lighting system. Control of max. 64 DALI operating devices as individual control, group control in max. 32 groups or central control via broadcast telegram (group 17 - 32 each max. 2 operating devices). Manual operation of the devices also independent of the bus (also construction site operation with broadcast control). Energy saving function: Switching off the supply voltage of the DALI operating devices when switched off is possible (via additional switching actuator for KNX). 16 light scenes. Inclusion of groups in the light scenes possible. Effect control for max. 16 sequences in 1 to 500 runs (or infinitely) configurable. Feedback of DALI error status or short circuit and notification of supply voltage failure. Active or passive (object can be read out) cyclical feedback function. Collective feedback of all switching states possible. Feedback can be delayed after bus voltage returns. Group and device functions: Switching and brightness value: Active (sending on the bus when there is a change or cyclically) or passive (object can be read out) feedback functions. Brightness range can be set. Lamp-friendly switching on and off. Dimming behavior can be parameterized. Time functions (switch-on or switch-off delay, extended staircase function - early warning function in accordance with DIN 18015-2 or reduced continuous lighting). Lock function or alternatively forced position function can be parameterized for each group. With the lock function, groups of lights can flash. Reading the DALI device status via KNX. Operating hours counter as up and down counter with limit value evaluation. Online or offline configuration of the DALI devices with ETS plug-in. Replacement of a single defective DALI device during operation without ETS possible. Operation of emergency lights: Suitable for operation in emergency lighting systems. Control and monitoring of single-battery and centrally supplied DALI emergency lighting systems. Support of DALI emergency light converters according to EN 62386-202 (single battery-operated emergency lights with DALI interface): function test, continuous operation test, limited continuous operation test, query of battery charge level. Notes: DALI-2 support from index level I06. Operation of emergency lighting systems: The legal and normative requirements vary from country to country. In each case, the user must check whether the specific requirements are being met. VDE approval according to EN 60669-1, EN 60669-2-1. Planning and commissioning of the device from ETS 4.1 (recommendation) or with ETS 3 from version 'd'.
