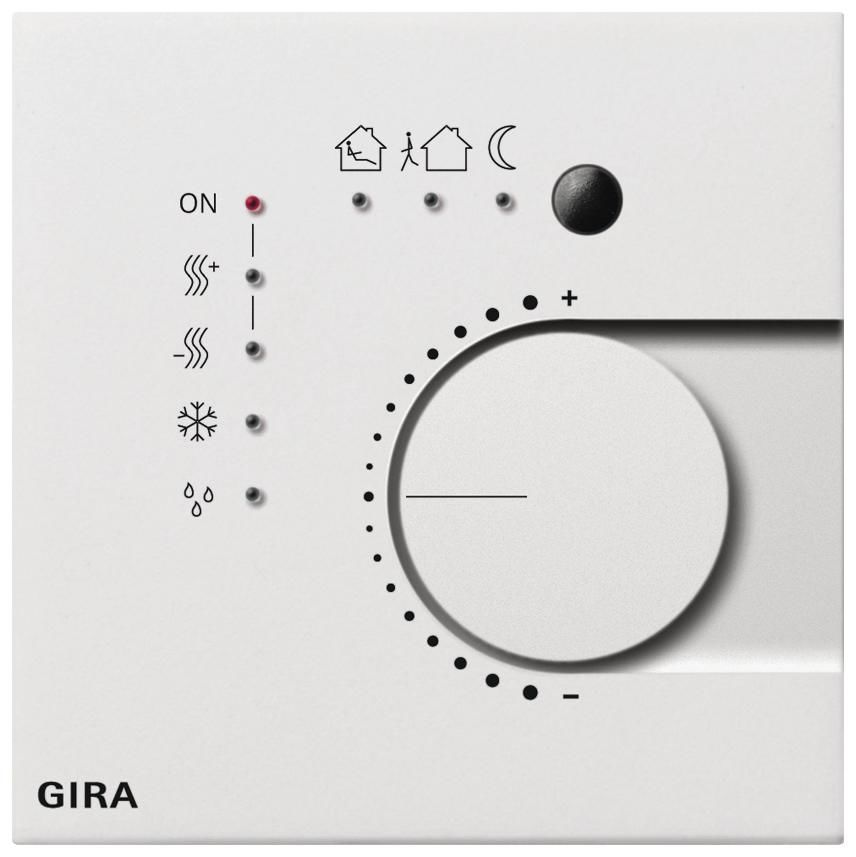

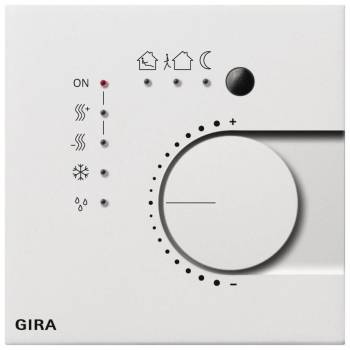

KNX / EIB Continuous regulator with push-button interface 4 times including bus coupler Flaechenschalter pure white glossy Product family: Heating, air conditioning, ventilation Product type: Controller The continuous controller UP combines the functions of a KNX / EIB bus coupler, a single-room temperature controller with setpoint and a binary input. There is a need for a separate bus coupler. The four binary input can be connected potential-free contacts. The input 1 can be used to connect a Fernfuehlers for the temperature measurement in the floor. Two entrances are configured as outputs (max. 0.8 mA).The control function provides single room temperature control. The controller detects an internal or external Temperature sensor the current room temperature and processed them with an adjustable temperature setpoint to a manipulated variable. It can thus actuators for modulating control than be driven with a switching control signal. With the thumbwheel for the temperature setpoint is moved. A Praesenztaster is used to switch between comfort and standby mode. The current states are indicated by LEDs on the continuous controller. For project design and commissioning of the unit ETS3.0d is recommended.Connecting the Corridors externern the use of a switch junction box is recommended. Controls: - 5 modes: comfort, standby, night, Frost-/Hitzeschutz- and controller inhibit (eg dew point) - Heating / Kuehlfunktionen: heating, cooling, heating and cooling, basic and additional heating, ground and Zusatzkuehlen - Preset control parameters for try from heating or Heatsink - Controller switched off (dew point) or control or operation of the controller can be blocked - Valve protection function (valve is opened cyclically every 24 hours) - Control modes: Continuous PI control, switching PI control (PWM) and switching 2-point control (on / off) - Temperature measurement over an internal and / or external sensor input (averaging for large premises) Corridors: - Free assignment of the functions switching, dimming, blind and value transmitter to the entrances - Blocker for blocking individual Corridors - Behaviour on bus voltage for each input can be configured separately - Telegram rate limitation - Switching function: two independent switching objects for each input and enabled individually, command for rising and falling edge independently adjustable (ON, OFF, TOGGLE, no reaction) - Dimming function: Single-surface and Zweiflaechenbedienung, time between dimming and switching and dimming step adjustable Telegram repetition and send stop telegram possible - Blind function: Command on rising edge adjustable (no function, UP, DOWN, TOGGLE), Operation concept configured (Step - Move - Step or Move - Step ), time between short-and long-time operation, slat adjustment - Value transmitter and light scene extension: edge (pushbutton as NO contact, push button as NC contact, switch) and value with edge configured, value adjustment with push over long push for encoder possible, light scene extension with / without Memory function - Function Temperature sensor: A channel button interface can be used as an external werden.Ausgaenge Temperature sensor for the thermostat: - Situated opposite the switching of max. 2 outputs Leitungslaenge inputs and outputs: max. Leitungslaenge 5 m Temperature sensor: max. 50 m Ambient temperature: -5 C to +45 C Protection:
IP 20
Type: 2100112
Quantity: 1 unit.
Questions & answers
What is the delivery time of Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white?
The article Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Gira 2100112 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white always at the best possible price. We can give you a discount of 2% on
Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white we can offer you a price of 336,64 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Gira 2100112 EIB Continuous regulator 2100 112, surface switch pure white via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
