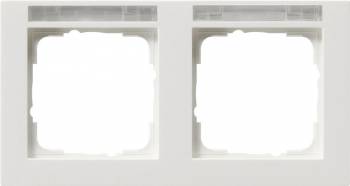

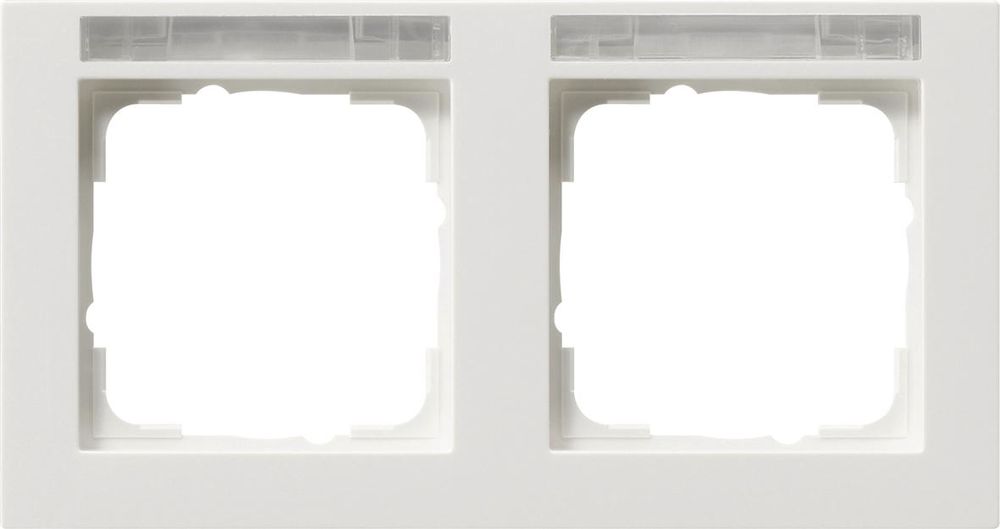

Gira 109229 frame 2f BSF pure white E2 horizontal

Your rating:
Average rating
product review for Gira 109229 frame 2f BSF pure white E2 horizontal
( 4.3 / 5 ) 7 ratings
Gira 109229
This image may differ from the desired article.
Gira 109229Gira 109229
18,72 EUR
( 22,28 EUR incl. VAT )
≈ £15.67  |  ≈ $20.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Gira 109229 frame 2f BSF pure white E2 horizontal
Datasheet:file_download Download
Lieske Part No.:432512
Mfg Part No: 109229
UPC/EAN: 4010337084129
Weight:0.032 kg
Type:109229
Graduated prices net
From piecesPrice per pieces
1517,74 EUR
3016,75 EUR
7015,77 EUR
10014,79 EUR

Product information for Gira 109229:

The Gira E2 cover frame with labelling field, type 109229, is a flush-mounted cover frame in white, glossy finish, specifically designed for installation in electrical installations. It is configured as a 2-way horizontal unit and serves for optical covering and identification of switch or push-button inserts. The surface is made of halogen-free, impact- and break-resistant thermoplastic, ensuring high mechanical stability and durability. The product is spray mist-tight, making it suitable for use in environments with increased humidity, and features a transparent viewing window that allows labelling of the installed units. This identification function is particularly important in facilities where clear documentation of the electrical installation is required, such as in administrative offices, commercial enterprises, airports, companies, and hospitals.

Applications
The cover frame is primarily intended for use in flush-mounted installations and is directly installed into the wall cladding. It is not designed for underfloor trunking boxes, but is suitable for installation in device mounting channels. Mounting is achieved via clamp fastening, ensuring quick and secure fixation within the installation channel. The horizontal orientation with two units in a row makes it ideal for arranging switches or push-buttons in a line.

Functions and Equipment in Detail
A central feature is the integrated labelling field with a transparent viewing window, enabling clear and legible identification of the functions of the installed units. This supports maintenance and identification of the installation. The surface is glossy and in pure white colour (similar to RAL 9010), providing a clean and professional appearance. The material is halogen-free and made of thermoplastic, enhancing safety in fire hazards and ensuring mechanical strength. The protection rating IP20 safeguards against entry of solid foreign objects larger than 12.5 mm and protects against finger contact, although it does not protect against moisture or spray mist.

Technology Explained Simply
The clamp fastening allows for easy and secure mounting in the installation channel without additional fastening materials. The material is break-resistant and spray mist-tight, meaning it is resistant to mechanical stress and humid environments such as kitchens or bathrooms. The transparent viewing window in the labelling field is designed to ensure that labels remain clearly visible without impairing the functionality of the underlying units.

Compatibility and Accessories
The cover frame is specifically designed for use in device mounting channels and is not suitable for surface-mounted enclosures or shallow surface-mounted constructions. Compatible accessories that can be used in combination with this frame include sealing kits such as the IP20 sealing kit for switches/push-buttons standard 55,E2 (article number 325400) or the IP20 sealing kit for socket KD (article number 025227). These sealing kits increase the protection rating and enable use in more humid environments, with the combination with cover frame 109229 being technically feasible provided the mounting conditions are met.

Installation and Mounting
Mounting is carried out in the installation channel using clamp fastening. The frame is intended for flush mounting and is installed into the wall cladding. The horizontal arrangement with two units allows for a clear and orderly arrangement of switches or push-buttons. The use of sealing kits requires precise fitting and depends on the specific installation situation.

Operational Advantages
The cover frame provides clear identification of the electrical installation, facilitating maintenance and identification of switches and push-buttons. The break-resistant and spray mist-tight design ensures high longevity and functionality even in demanding environments. The use of halogen-free thermoplastic enhances safety in fire hazards. The glossy white surface provides a professional appearance that integrates equally well into modern and traditional installations.

General
Number of units2
Mounting directionHorizontal
Number of units horizontal2
Number of units vertical2
MaterialPlastic
Material qualityThermoplastic
Surface protectionOther
Surface finishingGlossy
ColourWhite
RAL-number (akin)9010
Degree of protection (IP)IP20
Type of fasteningClamp mounting
With mounting gridno
Suitable for floor boxno
Suitable for wall ductyes
Suitable for built-in installationno
Label space/information surfaceyes
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Gira 109229, EAN: 4010337084129

Questions & answers

What is the delivery time of Gira 109229 frame 2f BSF pure white E2 horizontal?

The article Gira 109229 frame 2f BSF pure white E2 horizontal is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gira 109229 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Gira 109229 frame 2f BSF pure white E2 horizontal always at the best possible price. We can give you a discount of 2% on Gira 109229 frame 2f BSF pure white E2 horizontal if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Gira 109229 frame 2f BSF pure white E2 horizontal we can offer you a price of 17,74 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Gira 109229 frame 2f BSF pure white E2 horizontal

Gira 025227 sealing set IP44 System 55 for socket KD Gira LogoGira 025227 sealing set IP44 System 55 for socket KD The IP44 sealing set from Gira, type 025227, is a specially developed accessory for the installation of flush-mounted SCHUKO sockets with hinged cover in system 55. It is used in conjunction with ...

Lieske Part No.: 213884
Mfg Part No: 025227
4,68 EUR
Gira 025227 plus VAT
≈ £3.92  |  ≈ $5.14
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Gira 325400 sealing set IP44 switch/button standard 55,E2 Gira LogoGira 325400 sealing set IP44 switch/button standard 55,E2 Dichtungsset IP44 für Wippschalter, Wipptaster und Tastschalter Standard? 55, E1, E2

Lieske Part No.: 841700
Mfg Part No: 325400
5,98 EUR
Gira 325400 plus VAT
≈ £5.01  |  ≈ $6.57
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
