Gira 109123 frame 1f BSF anthracite E2

Your rating:
Average rating
product review for Gira 109123 frame 1f BSF anthracite E2
( 4.7 / 5 ) 10 ratings

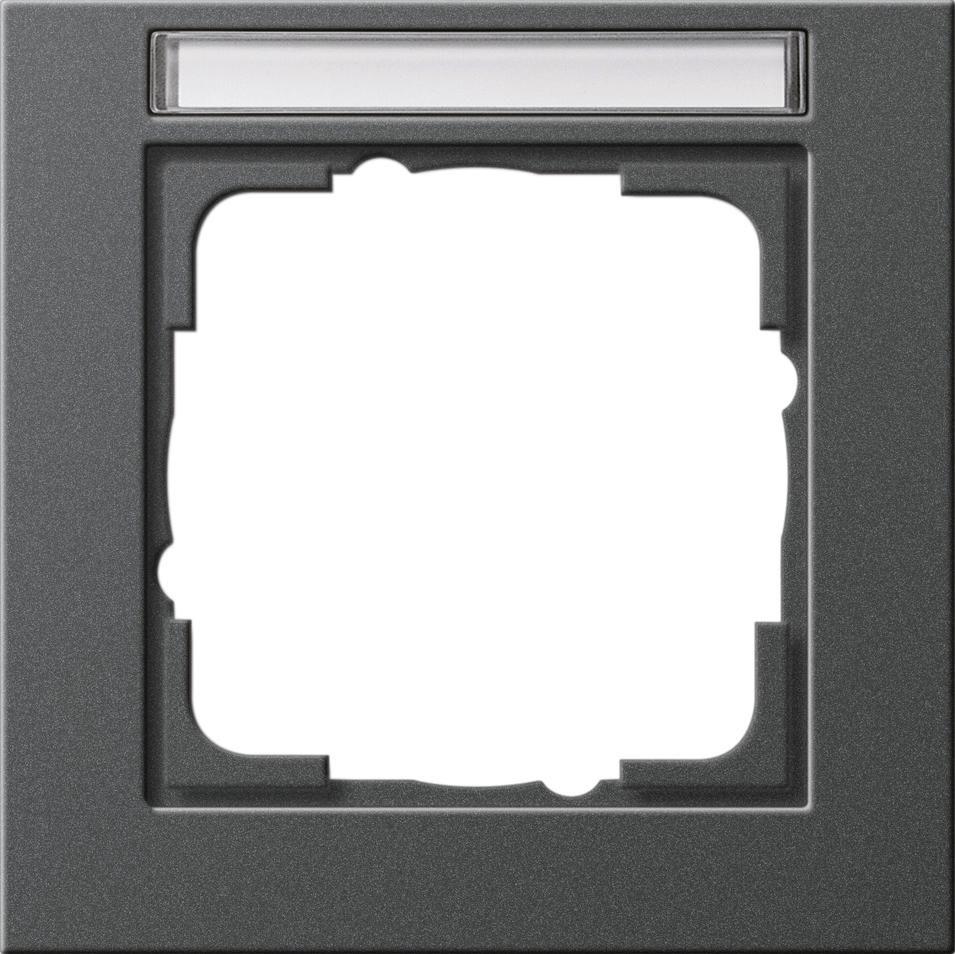

Gira 109123
This image may differ from the desired article.
12,15 EUR
( 14,46 EUR incl. VAT )
≈ £10.17  |  ≈ $13.35
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Gira 109123 frame 1f BSF anthracite E2
Datasheet:file_download Download
Lieske Part No.:483430
Mfg Part No: 109123
UPC/EAN: 4010337084044
Weight:0.016 kg
Type:109123
Graduated prices net
From piecesPrice per pieces
1511,60 EUR
3011,06 EUR
7010,51 EUR
1009,96 EUR

Product information for Gira 109123:

The Gira E2 cover frame with labelling field in anthracite is a flush-mounted component for the installation of switches and pushbuttons in the standard E2 system. It serves for optical covering and identification of installed units and is specifically designed for applications where clear documentation of the electrical installation is required, for example in administrations, commercial enterprises, airports, companies and hospitals. The product is made of halogen-free, impact- and break-resistant thermoplastic, ensuring high mechanical stability and safety under mechanical stress. The surface is finished in anthracite, allowing it to blend visually into modern and functional installations.

Applications
This cover frame is intended for indoor use and offers protection against splashing water, making it suitable for areas with increased humidity, provided there is no direct water exposure or immersion. It is not intended for use in underfloor ducts, but is suitable for equipment installation ducts. Installation is flush-mounted, with fastening achieved via a clamping technique. The mounting orientation can be either horizontal or vertical, and the unit is designed as a 1-way configuration.

Functions and Equipment in Detail
A central feature of the frame is the integrated labelling field with a transparent viewing window, enabling the function of installed switches or pushbuttons to be clearly and permanently identified. This supports maintenance and identification of installation components. The material is a thermoplastic that is halogen-free, which reduces smoke development and toxicity of emissions in case of fire. The surface is not transparent, but uniformly finished in anthracite.

Technical Explanation
The protection rating IP20 means the frame is protected against contact with fingers and against solid foreign objects with a diameter of 2.5 mm or more, but not against water or dust. This makes it suitable for dry indoor environments, but not for humid or wet areas. The break-resistant design of the plastic frame ensures it will not break even under mechanical stress, such as accidents or transport. The clamping fastening allows for quick and secure installation without additional tools.

Compatibility and Accessories
The cover frame is not compatible with surface-mounted enclosures or flat surface-mounted enclosures, as stated in the manufacturer’s notes. These sealing kits can be used to increase the protection rating in humid areas, but not in combination with this cover frame, as compatibility is not provided.

Installation and Mounting
Installation is flush-mounted, with the frame being clamped into the designated opening. Mounting is possible in both horizontal and vertical orientations. No mounting frame is integrated, and the unit is not intended for installation in built-in systems. Fastening is achieved via the clamping technique, ensuring secure and stable anchoring.

Operational Advantages
The use of the cover frame enables clear and permanent labelling of installed switches, facilitating maintenance and identification during operation. The break-resistant and splashing water-resistant design ensures high service life and reliability in indoor environments. The halogen-free material composition contributes to safety, especially in occupied rooms, where low smoke development in case of fire is important. The uniform anthracite finish supports visual harmony in modern installations.

General
Number of units1
Mounting directionHorizontal and vertical
Number of units horizontal1
Number of units vertical1
MaterialPlastic
Material qualityThermoplastic
Surface protectionOther
ColourAnthracite
Degree of protection (IP)IP20
Type of fasteningClamp mounting
With mounting gridno
Suitable for floor boxno
Suitable for wall ductyes
Suitable for built-in installationno
Label space/information surfaceyes
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Gira 109123, EAN: 4010337084044

Questions & answers

What is the delivery time of Gira 109123 frame 1f BSF anthracite E2?

The article Gira 109123 frame 1f BSF anthracite E2 is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gira 109123 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Gira 109123 frame 1f BSF anthracite E2 always at the best possible price. We can give you a discount of 2% on Gira 109123 frame 1f BSF anthracite E2 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Gira 109123 frame 1f BSF anthracite E2 we can offer you a price of 11,60 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
