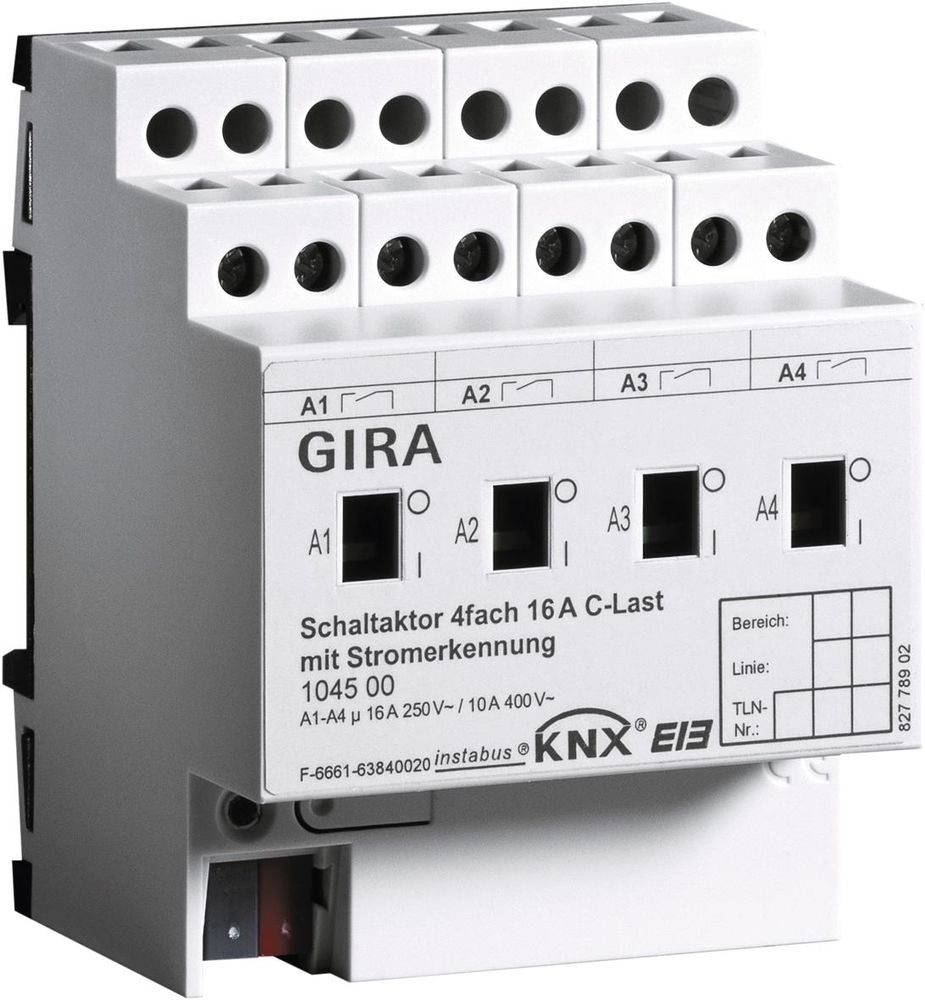

Gira 104500 switch 4-16A 1045 00, C-REG Instabus KNX / EIB

KNX / EIB switching actuator 4-gang 16 A with Handbetaetigung and current measurement for C loads KNX / EIB system DRA plus product family: Output Product type: Binary output 4x 4x REG switch actuators with integrated bus coupling. For switching of four Independently controllable groups of loads. The switching contacts of the switching actuator 4 C load are Specially designed for capacitive loads with character and consequent short-term high inrush currents (see technical data). The switch has a built-in power detection. May be a current measurement for each channel. Mounting on DIN rail. With manual switch for switching the relay (on / off) without parallel or KNX / EIB operation. No additional power supply. For project design and commissioning of the unit ETS3.0d is recommended. Multi-phase connection. Features: - Situated opposite the switching of the 4 outputs. - Handbetaetigung the relay independently from the bus / switch position indication. - NO or NC. - Central switching function - Sammelrueckmeldung to reduce bus load. - Active or passive (object readout) cyclical Rueckmeldefunktion. - Return codes can procrastinate after bus voltage. - Logical Verknuepfungsfunktion for each output. - Lock function for each channel configured. Alternatively forced setting function for each output. - Time functions (A, off delay, staircase light function - also with advance warning). - Inclusion in light scenes possible, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Operating hours counter with a limit function (over limit bus changeable) for each output. - Eingangsueberwachung to cyclical updates with safety. - Reactions after bus voltage failure and recovery and after an ETS programming operation for each channel.- Current detection: measurement of the load current for each channel. - Thresholds for Lastueberwachung (eg load failure). Switching contact: relay with 4 x potential-free normally-SWITCHING AC 230 V: 16 A / AC or 16 A 1/3 SWITCH AC 400 V AC: 10 A / 1 or 10 A AC / DC SWITCHING AC-3: 16 A / 24 V Max current: 600 A, 300 A 150 s, 600 s Power consumption: 3680 W resistive load consumption: 16 A max. 200 F capacitive load 230 V AC Power consumption: 3680 W incandescence Power input: 3680 W HV halogen-connection capacity: 2000 VA LV halogen, wound transformer power input: halogen 2500 W LV, Gira Tronic transformer connection power: 3680 VA fluorescent lamps , uncompensated Power rating: 3680 VA fluorescent lamps, dual circuit connection power: 2500 VA fluorescent lamps in parallel compensated power input: 3680 W mercury vapor lamps uncompensated Power input: 3680 W mercury vapor lamps in parallel compensated current detection: 0.25 to 16 0.75 to 4 mm stranded without: A sinusoidal current detection: 50/60 Hz connections: KNX / EIB about connecting and branch terminal 0595 00 connections: screw load about connections: 0.2 to 4 mm solid connections: 2 x 0.2 to 2.5 mm solid connections ferrule connections: Flexible with ferrule 0.5 to 2.5 mm Dimensions: DRA device with 4 modules Accor ding to VDE approved: EN 60669-1, EN 60669-2-1, EN 50428 type: 104500


Quantity: 1 unit.
