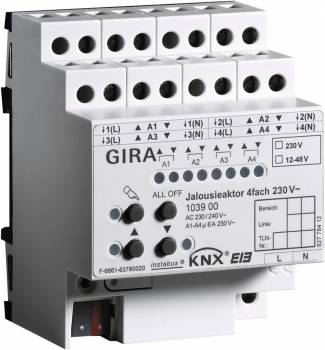

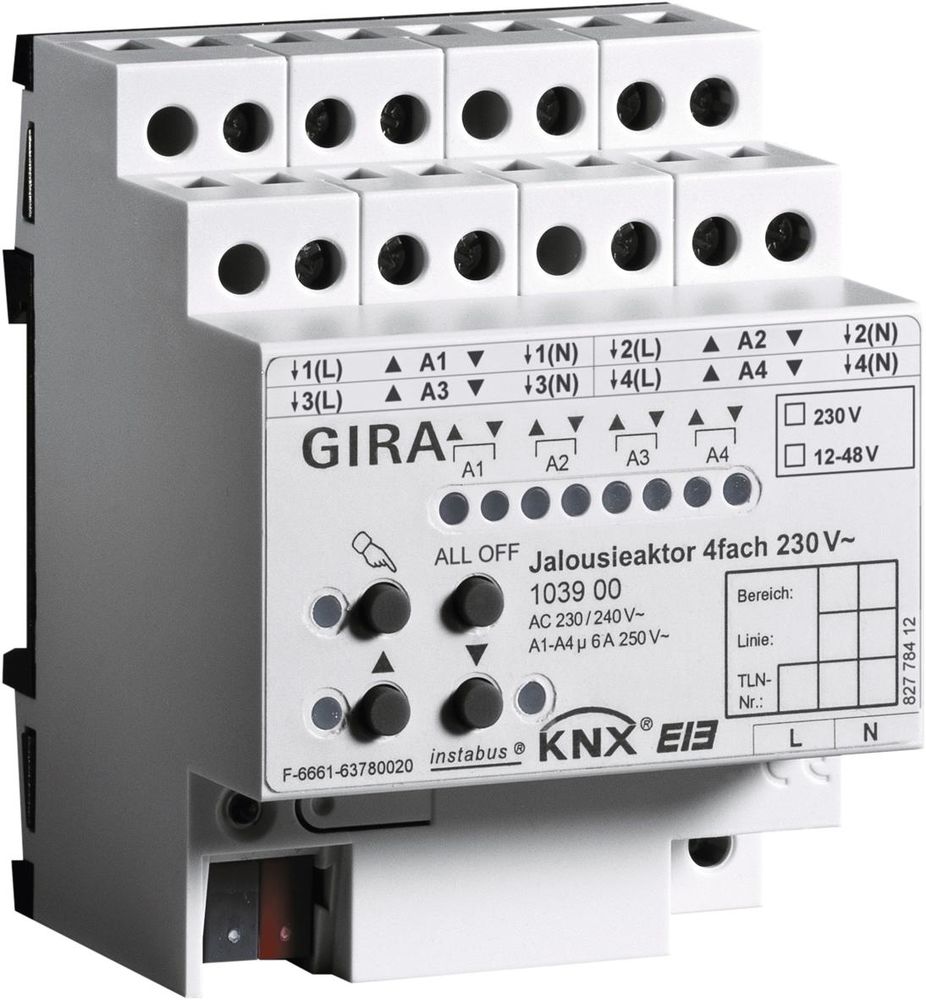

Gira 103900 Jalousiaktor 4-230VAC , Instabus KNX / EIB
|
277,20 EUR |
|||||||||||
|
( 329,87 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 718646 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103900 | ||||||||||
| UPC/EAN: | 4010337042211 | ||||||||||
| Weight: | 0.36 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Gira 103900:
DC 2-48 V with Handbetaetigung KNX / EIB system DRA plus product family: Blind Product Type: Blinds Shutter Actuator with Handbetaetigung and status display for each output. For control of electrically operated blinds, Rolllaeden, awnings, Lueftungsklappen or similar devices for mains voltage 23 V AC (4 channel) or low voltage
from 2 to 48 VDC (2-channel). For project design and commissioning of the unit is the ETS3. d recommended. Blind actuator with integrated bus coupler. Mounting on DIN rail. Connecting various external conductor. Features: - Independent control of 4 Jalousieausgaenge. - Automatic detection curtain travel time at 23 V AC drives with mechanical limit switches. - Hanging position directly controllable. - Slat position directly controllable. - Behaviour after bus voltage failure and recovery. - Separately configurable with Fahrzeitverlaengerung travel times for trips to the upper limit. - Central control of all Jalousieusgaenge possible. - FEEDBACK blind position or the position of the slats. Active or passive (object readout) cyclical Rueckmeldefunktionen. - Return codes can procrastinate after bus voltage. - Assignment to up to 5 different safety functions (3 wind alarms,
rain alarm,
frost alarm) or with cyclical monitoring. - Forced position function can be implemented for each shutter output. - Inclusion in scenes possible, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Sun protection function activated with fixed and variable blind or slat positions. - Advanced Sun Protection with extensive control functions. - Possible involvement in temperature management of the building. - Disabling of individual outputs manually or via bus. Operating voltage: AC 23 V, 5/6 Hz switching voltage AC: AC 23 V, 5/6 Hz SWITCHING AC 23 V: 6 A / AC
DC switching voltage: DC
2-48 V SWITCHING DC
2/24 V 6 A SWITCHING DC 48 V: 3 A connections: KNX / EIB about connection and branch terminal 595 connections: screw load about connections:, 5-4 mm finely stranded without ferrule connections: MPU with one from: 5 to 2.5 mm flexible with ferrules dimensions 4 TE VDE approved according to: EN 6669 -
, EN 6669-2 -
, EN 5428 Type:
39 Quantity:
ST.
