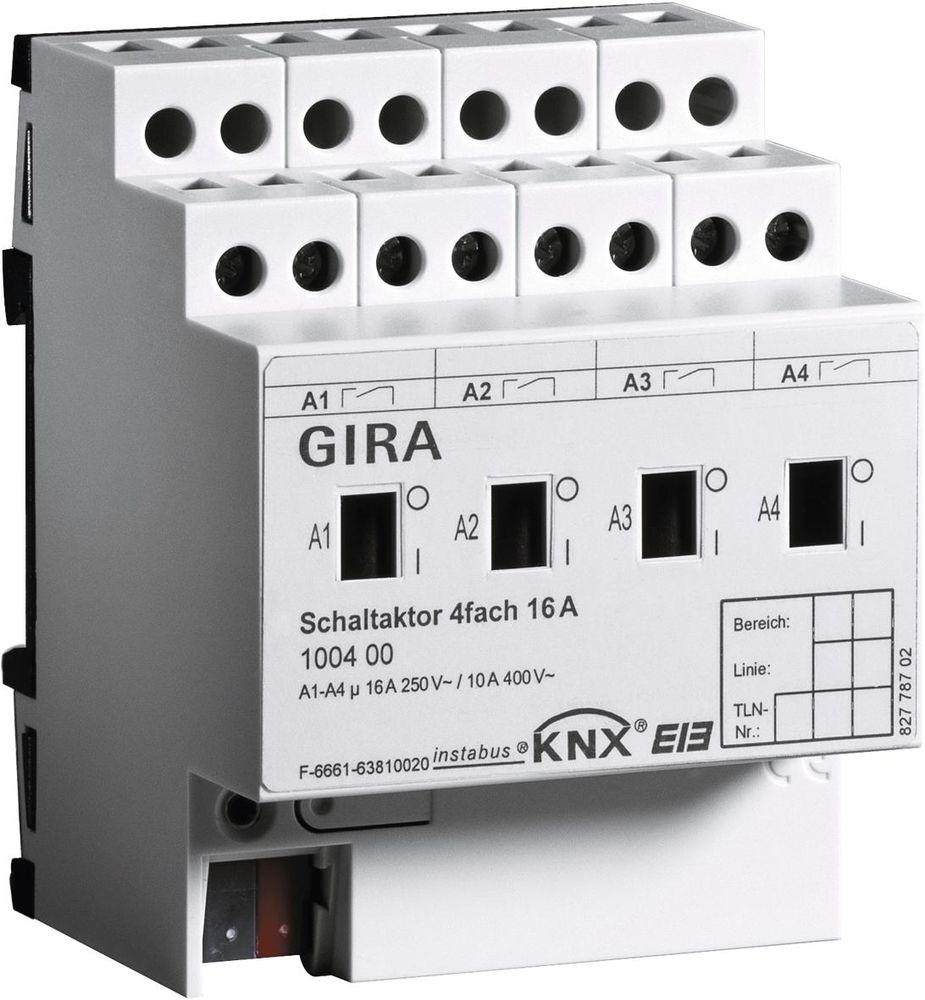

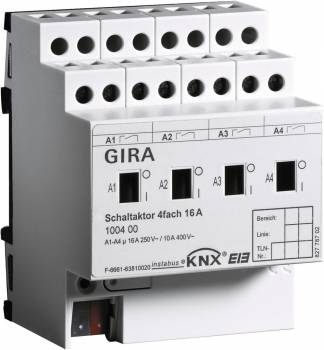

Gira 100400 Switch 4-16A 1004 00, manual operation REGplus Instabus KNX / EIB

KNX / EIB switching actuator 4-gang 16 A with Handbetaetigung KNX / EIB system DRA plus product family: Output Product type: Binary output 4x 4x REG switch actuators with integrated bus coupling. For switching of four independently controllable groups of loads. Mounting on DIN rail. With manual switch for switching the relay (on / off) without parallel or KNX / EIB operation. No additional power supply. For project design and commissioning of the unit ETS3.0d is recommended. Multi-phase connection. Features: - Situated opposite the switching of the 4 outputs. - Handbetaetigung the relay independently from the bus / switch position indication. - NO or NC. - Central switching function. - Sammelrueckmeldung to reduce bus load. - Active or passive (object readout) cyclical Rueckmeldefunktion. - Return codes can procrastinate after bus voltage. - Logical Verknuepfungsfunktion for each channel. - Lock function for each channel configured. Alternatively forced setting function for each output. - Time functions (A, off delay, staircase light function - also with advance warning). - Inclusion in light scenes possible, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Operating hours counter with a limit function (over limit bus changeable) for each output. - Eingangsueberwachung to cyclical updates with safety. - Reactions after bus voltage failure and recovery and after an ETS programming operation for each channel. Switching contact: relay with 4 x potential free normally-SWITCHING AC 230 V: 16 A / AC or 10 A 1/3 SWITCHING AC 400 V AC: 10 A / 1 or 6 A AC / DC SWITCHING AC-3: 16 A / 24 V Max current: 400 A, 200 A 150 s, 600 s Power consumption: 3600 W resistive load consumption: 16 A, max. 140 F Capacitive load AC 230 V Power consumption: 2500 W incandescence connection power: 2500 W HV halogen Power consumption: 1200 VA LV halogen, wound transformer power input: 1500 W LV halogen, Gira Tronic transformer connection power: 2500 VA fluorescent lamps, uncompensated Power rating: 2300 VA fluorescent lamps, dual circuit connection power: 1300 VA fluorescent lamps with parallel compensation Power consumption: 2000 W mercury vapor lamps uncompensated connection power: 2000 W mercury vapor lamps in parallel compensated connections: KNX / EIB about connection and branch terminal 0595 00 connections: load over screw connections: 0.2 to 4 mm Solid connections: 2 x 0.2 to 2.5 mm Solid connections: 0.75 to 4 mm stranded without ferrule connections: 0.5 to 2.5 mm Flexible with ferrule Dimensions: According to REG device with 4 modules VDE approval : EN 60669-1, EN 60669-2-1, EN 50428

Type: 100400
Quantity: 1 unit.
