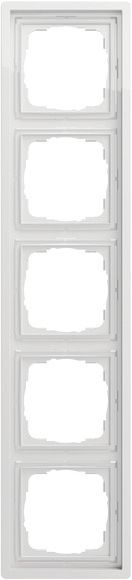

Gira 0215112 frame 5f pure white flush switch

Your rating:
Average rating
product review for Gira 0215112 frame 5f pure white flush switch
( 4.3 / 5 ) 6 ratings
Gira 0215112
This image may differ from the desired article.
Gira 0215112Gira 0215112
45,59 EUR 47,51 EUR
( 54,25 EUR incl. VAT )
≈ £38.16  |  ≈ $50.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x Gira 0215112 frame 5f pure white flush switch
Datasheet:file_download Download
Lieske Part No.:123443
Mfg Part No: 0215112
UPC/EAN: 4010337044079
Weight:0.062 kg
Type:0215112
Graduated prices net
From piecesPrice per pieces
1043,20 EUR
2540,80 EUR
5038,41 EUR
7536,02 EUR

Product information for Gira 0215112:

The Gira faceplate frame 0215112 is a 5-module unit in the colour pure white glossy, specifically designed for flush mounting installations. It serves as an aesthetic and functional cover for faceplate switches and is mounted directly on the wall, framing the switch units visually and protecting them from mechanical impacts. The frame is made of impact-resistant thermoplastic, with the pure white glossy colour variant containing at least 50% bio-circular plastic, indicating sustainable material use. The surface is glossy and offers a clean, modern appearance that fits into various interior designs.

Applications
This faceplate frame is intended for flush mounting and is suitable for both horizontal and vertical arrangements. It is not designed for installation in underfloor trunking, device installation channels, or for recessed installations. The standard protection rating is IP20, meaning it protects against contact with fingers and solid objects up to 12.5 mm, but not against water or dust. For applications in damp rooms or outdoor environments, it is not suitable on its own.

Functions and Equipment in Detail
The frame is designed as a 5-module unit, allowing it to accommodate five units side by side. Installation is done via clamp fastening, enabling quick and secure mounting on the wall. Dimensions are 83.3 mm width, 368.5 mm height, and 10.6 mm depth, with a corner radius of R 3. The surface is not transparent and does not feature any text fields or labelling areas. This is a pure faceplate frame without an integrated mounting frame or hinged cover. The colour corresponds approximately to RAL 9010, is halogen-free, and provides a glossy, pure white appearance.

Technology Explained Simply
The use of thermoplastic as the material ensures high mechanical stability and impact resistance, which is particularly beneficial in areas with frequent use. The clamp fastening allows for easy installation without additional tools. The use of at least 50% bio-circular plastic in the pure white glossy colour variant highlights the product’s ecological commitment. The IP20 protection rating is suitable for dry indoor environments where no direct water exposure or dust contamination is expected.

Compatibility and Accessories
When used in conjunction with the sealing flange IP20 (item 325100), the faceplate frame is also suitable for water-protected flush mounting, increasing the protection rating to IP20. This expands its application in damp areas such as bathrooms or kitchens. The sealing flange provides additional protection against splashing water and enables secure installation in environments with increased humidity.

Installation and Mounting
Mounting is done via clamp fastening to the wall, allowing the frame to be arranged horizontally or vertically. No additional mounting aids such as a mounting frame are required. Installation is performed directly on the wall, with the cover fully enclosing the switch units. The dimensions and clamp technology ensure secure and neat anchoring.

Operational Advantages
The faceplate frame provides a break-resistant, aesthetically pleasing cover for faceplate switches. The use of bio-circular plastic contributes to sustainability. The combination with the sealing flange IP20 extends the application range to damp rooms. The glossy surface in pure white ensures a modern appearance that integrates well into various interior designs. The clamp fastening allows for quick and easy installation without additional tools.

General
Number of units5
Mounting directionHorizontal and vertical
Number of units horizontal5
Number of units vertical5
MaterialPlastic
Material qualityThermoplastic
Surface protectionOther
Surface finishingGlossy
ColourWhite
RAL-number (akin)9010
Degree of protection (IP)IP20
Type of fasteningClamp mounting
With mounting gridno
Suitable for floor boxno
Suitable for wall ductno
Suitable for built-in installationno
Label space/information surfaceno
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Gira 0215112, EAN: 4010337044079

Questions & answers

What is the delivery time of Gira 0215112 frame 5f pure white flush switch?

The article Gira 0215112 frame 5f pure white flush switch is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gira 0215112 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Gira 0215112 frame 5f pure white flush switch always at the best possible price. We can give you a discount of 2% on Gira 0215112 frame 5f pure white flush switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Gira 0215112 frame 5f pure white flush switch we can offer you a price of 43,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
