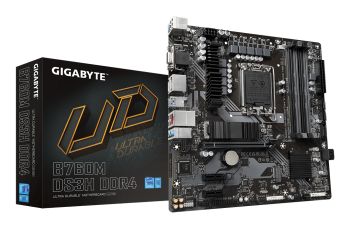

Gigabyte B760M DS3H DDR4 GIGA S1700/DDR4/2xDP-HDMI-VGA/Type-C/µATX
|
90,38 EUR |
|
|
( 107,55 EUR incl. VAT ) ≈ £75.65 | ≈ $100.77 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2029060 |
| Mfg Part No: | B760M DS3H DDR4 |
| UPC/EAN: | 4719331850876 |
| Weight: | 1.004 kg |
Product information for Gigabyte B760M DS3H DDR4:
! Wichtiger Hinweis wenn dieses Board in einem TERRA PC eingesetzt wird: Führen Sie vor endgültiger
Inbetriebnahme ein BIOS Update über die Wortmann AG Homepage (Treiberdatenbank) durch.
! Important notice if using this board in a TERRA System: BIOS update via Wortmann AG Homepage
(driver database) strictly required.
Inbetriebnahme ein BIOS Update über die Wortmann AG Homepage (Treiberdatenbank) durch.
! Important notice if using this board in a TERRA System: BIOS update via Wortmann AG Homepage
(driver database) strictly required.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Number of displays supported | 4 |
| On-board graphics card | |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Number of chassis fan connectors | 3 |
| Serial port headers | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Parallel connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Bundled software | Norton Internet Security |
| Batteries included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of Gigabyte B760M DS3H DDR4 GIGA S1700/DDR4/2xDP-HDMI-VGA/Type-C/µATX?
The article Gigabyte B760M DS3H DDR4 GIGA S1700/DDR4/2xDP-HDMI-VGA/Type-C/µATX is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte B760M DS3H DDR4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte B760M DS3H DDR4 GIGA S1700/DDR4/2xDP-HDMI-VGA/Type-C/µATX always at the best possible price. We can give you a discount of 2% on Gigabyte B760M DS3H DDR4 GIGA S1700/DDR4/2xDP-HDMI-VGA/Type-C/µATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
