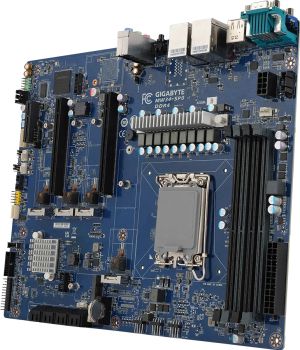

Gigabyte 9MW34SP0MR-00
Mainboard MW34-SP0 (retail)
|
-17% 432,06 EUR 521,34 EUR |
|
|
( 514,15 EUR incl. VAT ) ≈ £361.63 | ≈ $481.75 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195458 |
| Mfg Part No: | 9MW34SP0MR-00 |
| UPC/EAN: | 4719331839239 |
| Weight: | 1.314 kg |
Product information for Gigabyte 9MW34SP0MR-00:
Single Sockel 1700, ATX, W680, DDR4, 4x PCIe 4.0, M.2, 2x Gb-LAN, 2x USB 3.2, 2x USB 2.0, 8x SATA-6Gb/s, RAID, DisplayPort, HDMI, HD Audio
| Expansion slots | |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel W680 |
| Product colour | Blue |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA connectors | 8 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 6 |
| Number of EPS power connectors (8-pin) | 1 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 3200 MHz |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I225 |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i5 12th Gen, Intel Core i7 12th Gen, Intel Core i9 12th Gen |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Headphone outputs | 1 |
| Serial ports quantity | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 12 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of Gigabyte 9MW34SP0MR-00 Mainboard MW34-SP0 (retail)?
The article Gigabyte 9MW34SP0MR-00 Mainboard MW34-SP0 (retail) is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 9MW34SP0MR-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 9MW34SP0MR-00 Mainboard MW34-SP0 (retail) always at the best possible price. We can give you a discount of 2% on Gigabyte 9MW34SP0MR-00 Mainboard MW34-SP0 (retail) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
