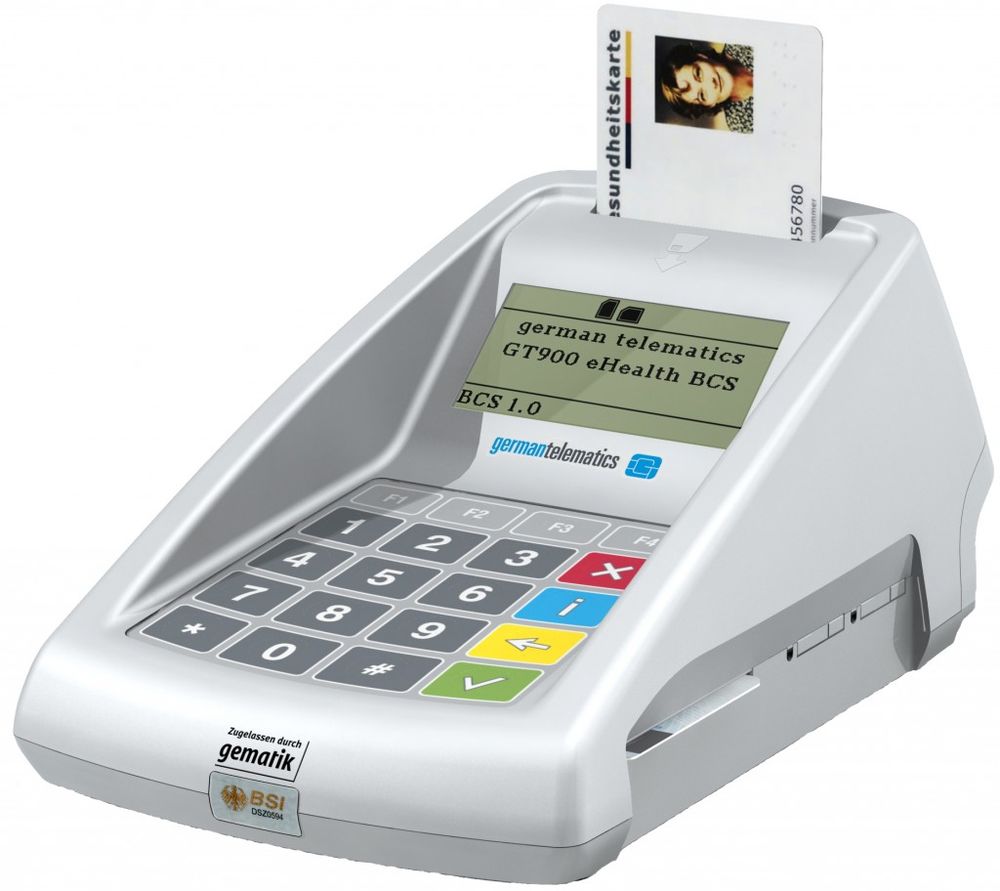

German telematics GT900 BCS USB eHealth card terminal GT900 USB BCS

eHealth Terminal GT900 BCS for basic rollout and online phase.

CPU / Processor: 32-bit high performance RISC / MIPS 200
Operating System: Linux 2.6 GT X
Memory: 32 MB SDRAM, 8 MB Flash
Interfaces:
USB, Serial, 1 x Full Speed ​​Host, USB 2.0 compatible, 1 x Full Speed ​​Client, USB
2.0 compatible, RJ45 10/100 Mbit / s auto-negotiation, auto MDI / MDIX, RS-232 (9-pole)
Chip cards:
health card, HBA, SMC, SM-KT, KVK, ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
Protocol support S = 8, S = 9, S = 10, T = 1
Contacting units:
1 Chip Card Connector (ISO 7816 ID-1) with lowering, cards gentle
Contacts (eGKund KVK)

200 000 mating cycles (ID 1Kontaktiereinheit) 1 smart card

Contacting ISO 7816 ID-1 (HBA) 2 Connectors (ISO 7816 ID-000) for SMC-A,
SMC-B and SM-KT, automatic card detection with short-circuit and thermal protection
User:
Large graphic display with backlight for user guidance
(Backlit monochrome, white)-contrast graphic display -
- 128 x 64 pixels large pictograms for status and status message safe state
- 20 key pad for secure PIN entry and navigation
- View protected PIN entry field
- Easy-care materials meet high hygienic and clinical claims
- Sole eHealth card terminal on the market with a membrane keyboard
- Easy to disinfect, since no gaps
- Complies with all hygiene requirements
Certifications and Approvals:
Common Criteria EAL 3 + certification and SigG approval by the Federal Office for Information Security
in Information Technology, SICCT (in preparation) eHealth BCS gematik certification, CE,
TÜV IT, MKT, chip cards (EMV Level 1/ISO7816)
Safety: BSI seal for quick visual inspection;-piercing in the housing; cryptographically secure firmware update possible for stage SICCT (eHealth)
Dimensions and weight: 190 x 110 x 90 mm, 670 g without power supply
Color: White, Black or Silver
Power Supply: AC adapter: Input :100-240VAC / 50-60Hz / 5VDC / 1A
Card Reader: 2 smart card reader for electronic health card, KVK and SMC-2 HBA slots
Signature: Prepared for comfort and stack signature
Environmental conditions: Operating: 0 ° to +50 ° C, storage -20 ° to +60 ° C, relative humidity: 5% to 95% (non-condensing)
Operating Systems: Windows ® 98SE, ME, NT, 2000, 7, Server 2003, XP, Vista, Mac OS X (in preparation), Linux, Solaris (in preparation)
Compatibility: KVK terminal; MKT / MKT + terminal; eHealth BCS terminal; SICCT terminal on the connector (after firmware update)
Country: Federal Republic of Germany
Environmental directives: RoHS, WEEE
