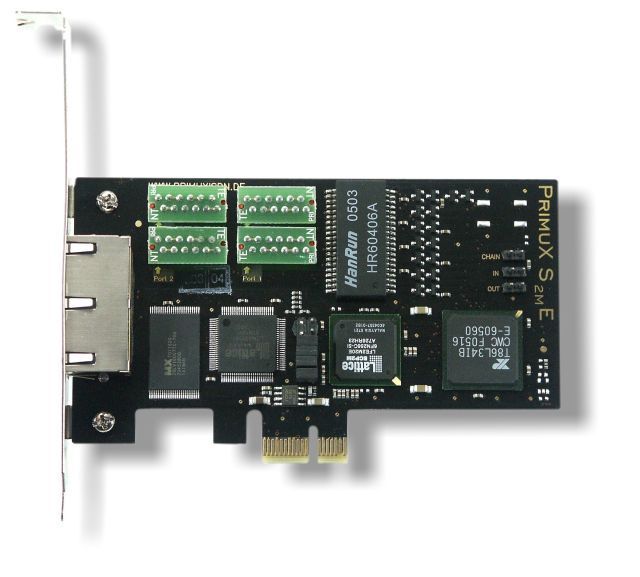

Gerdes PrimuX 1S2M PCI Express Controller NT Server

Gerdes PrimuX 1S2M/1PRI PCI-Express NT Server Controller
Areas of application
With 30 channels, it is well suited for exchanges and fax servers in larger companies. Good application possibilities for value-added services (0900 etc.) and fax broadcast.
Features
High-performance signal processor for low PC load and minimal delays. In the NT version, all connections can be configured as TE/NT.
Connection
1 primary multiplex connection. PrimuX 1S2M is available as a PCI and PCI Express (low-profile) version.
Technical data
Fully compatible with Windows 2000, XP, Vista, Server 2003, Server 08, Linux, single and dual processor systems, 32 and 64-bit operating systems
Dual-Mode CAPI 1.1/ 2.0, integrated network CAPI, convenient configuration program, Tracer
NDIS WAN MiniPort (for Internet and WAN connection)
Dynamic channel bundling and data compression according to Windows standard
Multi-adapter capable drivers. Different PrimuX cards can be operated at the same time.
Switching and conferencing. Full support, even across controllers.
Virtually delay-free and therefore echo-free voice communication (typically 8 ms)
Fax polling, compression (MR, MMR), ECM, DTMF detection
Support of all supplementary services in ISDN: Call number identification (CLIP, CLIR, COLP, COLR, KEY, MSN, DDI, SUB), call forwarding (TP, CFU, CFB, CFNR), call completion (CW, HOLD, ECT), charge information (AOC), three-party conference, large conference
External protocols: DSS1, 1TR6, NI-2
Can be switched between E1 via software and T1 protocols :
X.25 , and low-profile slot cover for the PCI Express version CD with comprehensive driver package, configuration and trace software, operating and installation instructions ++ ORDER-RELATED ARTICLE ++
