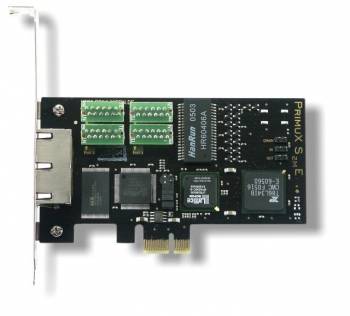

Gerdes 2413 PrimuX 4S2M PCI-Express server controller

Your rating:
Average rating
product review for Gerdes 2413 PrimuX 4S2M PCI-Express server controller
( 4.4 / 5 ) 17 ratings
Gerdes 2413
This image may differ from the desired article.
Gerdes 2413Gerdes 2413Gerdes 2413Gerdes 2413
6.102,65 EUR
( 7.262,15 EUR incl. VAT )
≈ £5,107.92  |  ≈ $6,706.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Gerdes 2413 PrimuX 4S2M PCI-Express server controller
Lieske Part No.:131738
Mfg Part No: 2413
UPC/EAN: 4032783241307
Weight:0.123 kg

Product information for Gerdes 2413:

The Gerdes PrimuX 4S2M PCI-Express Server Controller is a network adapter for ISDN applications, designed for use in servers or workstations as a plug-in card. It enables the integration of up to four primary multiplex ports, each of which can be configured as Terminal Equipment (TE) or Network Terminator (NT). Adaptation to various network topologies is achieved through switchability between the digital transmission standards E1 and T1, enabling use in different telecommunications environments. The controller is specifically designed for use in server systems and serves to connect ISDN networks with computer systems via a PCI-Express interface.

Applications

The Server Controller is suitable for use in corporate networks, call centers, or other environments where a stable and high-performance ISDN connection over multiple channels is required. Support for up to four primary multiplex ports makes it particularly suitable for applications with high communication demands, such as connecting multiple ISDN telephones, fax machines, or data terminal equipment over a common network. The configurability as TE or NT allows flexible adaptation to existing network infrastructures, whether in local networks or in conjunction with external ISDN providers.

Functions and Features in Detail

The controller features four digital interfaces, each functioning as a primary multiplex port. These ports are designed for digital data transmission over ISDN networks and support the protocols NI-2, 1TR6, DSS1/ETSI ISDN. Switchability between E1 and T1 enables adaptation to regional or national transmission standards. The integrated DTMF decoding allows detection of Dual-Tone Multi-Frequency signals, used for example during telephone calls for keypad input. The interface is provided via two network connections with RJ-45 connectors, enabling connection to ISDN networks.

Technology Explained Simply

The PrimuX 4S2M operates as an ISDN terminal adapter, installed in the computer via a PCI-Express x1 interface. It enables digital data transmission over ISDN networks, with data transmitted in packets via the ISDN interface. Support for protocols such as ITU T.30, T.70NL, T.90NL, V.110 (I.463), X.25, X.75, and HDLC ensures compatibility with various data transmission methods. Data compression via MMR and MR reduces transmission volume and improves data transmission efficiency. The use of RJ-45 connectors enables a standardized and reliable connection to ISDN networks.

Compatibility and Accessories

The Server Controller is designed for use in systems with a PCI-Express x1 slot. It is compatible with operating systems such as Microsoft Windows 2000/XP/Vista/7, Windows Server 2003/2008, as well as Linux. Use in combination with other Server Controllers from the PrimuX series, such as the PrimuX 2S2M/2PRI NT Server Controller or the PrimuX 1S2M/1PRI PCI-Express Server Controller, enables extended network integration. Combining it with additional PrimuX modules can increase the number of available ISDN ports and expand network capacity.

Installation and Mounting

Installation is performed by inserting the PCI-Express card into a free PCI-Express x1 slot in the server or workstation. After installation, appropriate driver installation is required to activate the communication functions of the controller. Configuration of the ports as TE or NT, as well as selection between E1 and T1, is done via the system's software control. Connection to ISDN networks is made via the RJ-45 connectors, with cabling required to comply with applicable standards.

Operational Advantages

Using the Gerdes PrimuX 4S2M offers high flexibility in network configuration through port configurability and switchability between E1 and T1. Support for multiple ISDN protocols and data compression methods ensures efficient and reliable data transmission. Integration into existing server systems is achieved via a standardized PCI-Express interface, simplifying installation and maintenance. The five-year warranty provides additional security for operation in corporate environments.

General
Number of primary multiplex ports4
Port configurabilityas TE or NT
Switchabilitybetween E1 and T1
Interface typePCI Express x1
Network connection2 x RJ-45
Supported protocolsNI-2, 1TR6, DSS1/ETSI ISDN, ITU T.30, T.70NL, T.90NL, V.110 (I.463), X.25, X.75, HDLC
Data compressionMMR, MR
Operating system compatibilityLinux, Microsoft Windows 2000/XP/Vista/7, Windows Server 2003/2008
DTMF decodingYes
