FRITZ! GmbH 20003047 AVM FRITZ!Box 6670 Cable content_copy

Wi-Fi 7 and Smart Home - the next generation of cable connectionsWith the FRITZ!Box 6670 Cable, AVM is launching the first all-in-one router for cable connections with Wi-Fi 7 and Zigbee. Wi-Fi 7 is faster and significantly more efficient: the FRITZ!Box 6670 Cable effortlessly handles multiple parallel applications such as 4K streams, video conferences and cloud applications. A special highlight is the integration of the Zigbee wireless standard for a versatile smart home. The integrated DOCSIS 3.1 cable modem for ultra-fast gigabit speeds is suitable for all cable connections. Innovative Wi-Fi mesh functions and a telephone system for cordless telephones round off the portfolio of the new FRITZ!Box Cable. It also has an integrated TV tuner that enables the TV signal to be streamed in the home network via WLAN.The new WLAN generation Wi-Fi 7The FRITZ!Box 6670 Cable brings the high WLAN speed of Wi-Fi 7 to the cable connection. The new Wi-Fi 7 standard offers advantages on the already used frequency bands 2.4 and 5 GHz and offers powerful WLAN mesh. The combination of low latency and high throughput enables powerful wireless communication for future real-time applications such as virtual reality, cloud computing and gaming. And current applications also benefit from faster connections, even over long distances and for many mobile devices.Smart Home - Central via DECT ULE and Zigbee, prepared for MatterUsing the FRITZ!Box 6670 Cable, Zigbee LED lamps and DECT ULE lamps from various manufacturers can be easily integrated into the FRITZ!Box Smart Home and controlled via an app. The integration of Matter, the new IP-based smart home standard, is being planned. This means that smart home apps from other manufacturers can control FRITZ!'s smart products centrally in their app. Smart home devices such as the FRITZ!DECT 302/301 radiator controller, the FRIT switchable sockets and the FRITZ!Box 7770 are controlled via the integrated DECT base station.

Highlights

• WLAN router with integrated cable modem for all cable connections
• Support for DOCSIS 3.1 (backwards compatible with DOCSIS 3.0)
• Secure Internet use thanks to a pre-configured firewall
• My FRITZ! - Secure remote access to the home or company network via VPN
• Parental controls with time budget, BPjM module, black and white list
• 2 x 2 Wi-Fi 7
• Wi-Fi 7 up to 2,880 Mbit/s (5 GHz) and 720 Mbit/s (2.4 GHz)
• Expands the home network with WLAN Mesh
• Compatible with the WLAN standards IEEE 802.11a/g/n/ac/ax/be
• WLAN encryption with WPA3/WPA2
• WPS (Wi-Fi Protected Setup)
• WLAN can be switched on and off at a specific time using buttons and connected telephones
• WLAN guest access - secure surfing for friends and visitors
• Smart home functions for electricity, heat, light and more (DECT ULE)

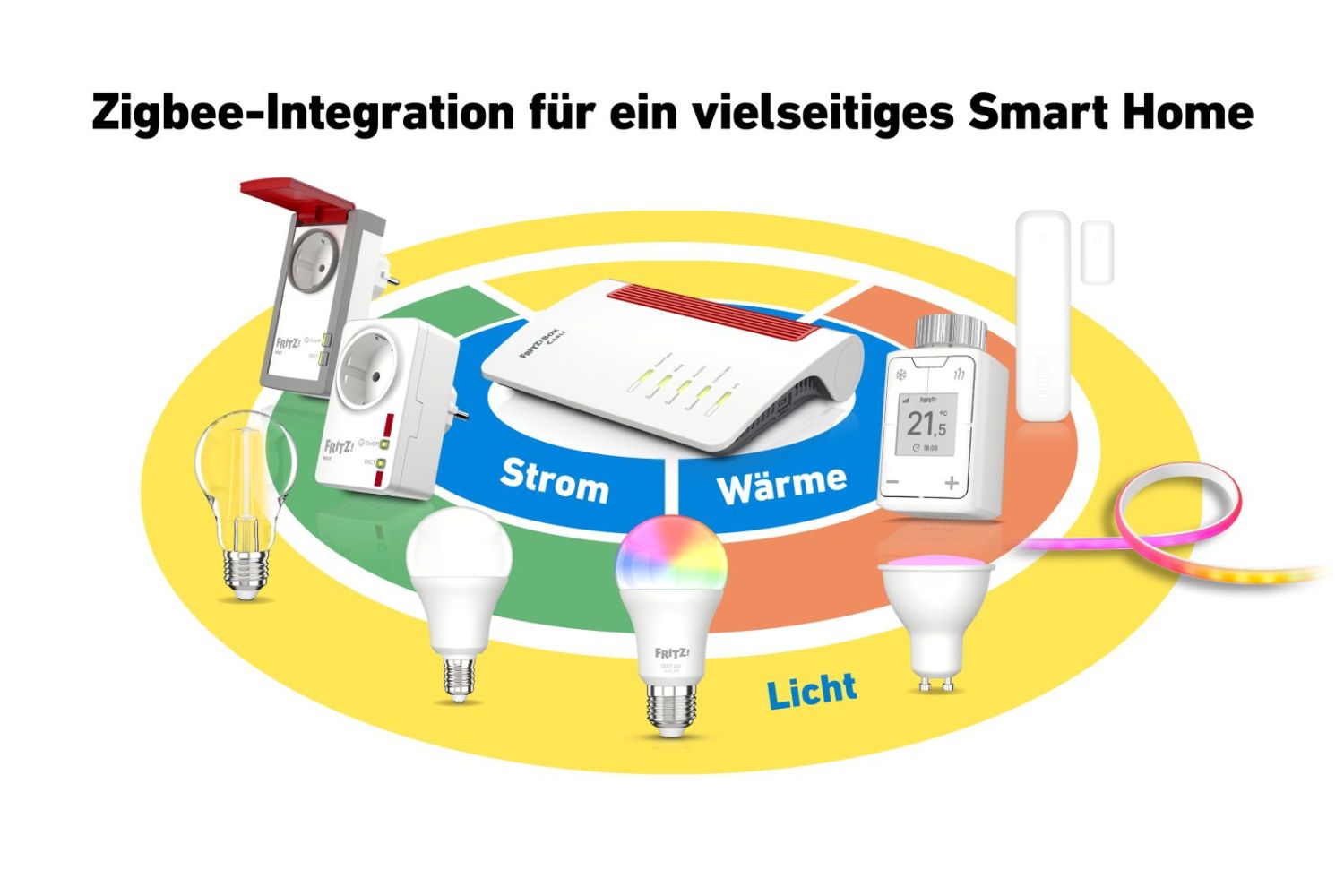

• Integrates LED lamps and other devices via Zigbee
• Simultaneously transmits four digital free TV programs from the cable connection to PC, smartphone and tablet
• 1 x USB for printers and storage in the network (USB 2.0)
• FRITZ!NAS - a shared storage for all data in the home network
• Media server distributes music, pictures and films in the home network (DLNA/UPnP AV)
• Telephone system for the cable connection
• Integrated DECT base for up to 6 cordless telephones
• Connection for an analogue telephone, fax or answering machine
• 5 integrated answering machines including voice-to-mail
• Manage phone book contacts locally or online (Google, Apple, Telekom)
• Fax function including email forwarding (fax-to-mail)
• Call list, number blocking, speed dial, call forwarding
• 1 USB 2.0 port for storage media (NAS), network printers and mobile sticks
• 1 ultra-fast 2.5 Gigabit LAN connection and 4 Gigabit LAN connections for extended applications such as NAS
• 1 analog telephone connection

Product type

• Stationary router
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, small IT and telecommunications equipment B2C > Specifications
• Area of application: Indoor
• Modem type: Cable

Shipping

• WEEE: 86990390

Packaging

• Total packaging weight: 1129 g

Connections

• USB standard: 2.0
• Total number of copper ports: 5
• Data interfaces: USB
• Number of analog interfaces: 1

Functions

• DHCP server
• Hotspot
• VPN
• UTM functionality: Network firewall, VPN support, translation of network addresses (NAT)
• Wall-mountable
• Telephony functionality: integrated
• Number of DECT devices: 6
• DECT-ULE
• Media server
• Parental controls

Power supply

• Power supply unit: integrated

Data transmission

• WLAN
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6E, IEEE 802.11be - WiFi 7, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• Security standard: WEP, WPA, WPA2, WPA3, WPS
• WLAN frequency band: dual band
• Bandwidth: 2.5G-Base-T
• WPS
• time-controlled WLAN

Basic properties

• Color: white, red
• Height: 63 mm
• Length/depth: 191 mm
• Width: 254 mm
• Weight: 657 g

Scope of delivery

• FRITZ!Box 6670 Cable
• Power supply unit
• 1.5 meter coaxial cable
• 1.5 meter LAN cable
• Installation instructions
