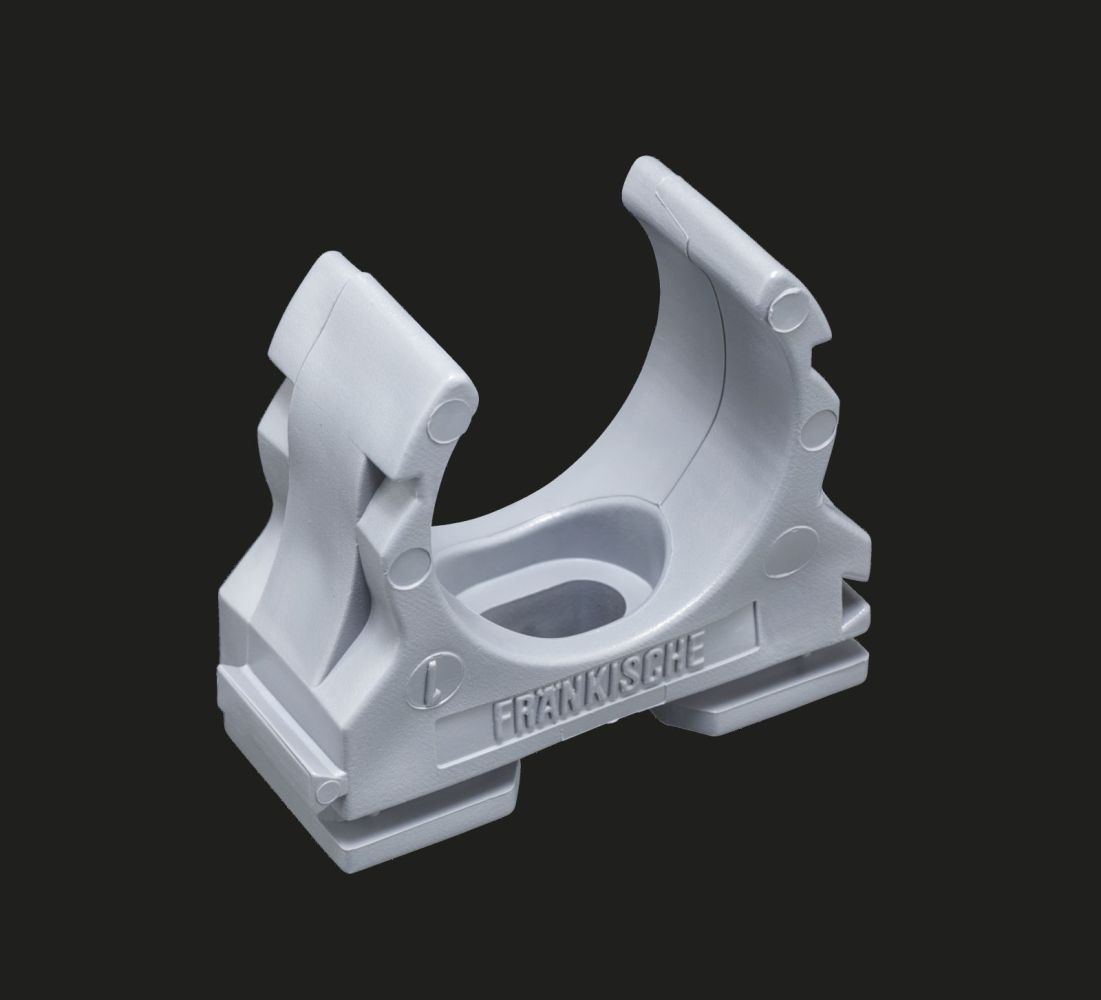

Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey

Your rating:
Average rating
product review for Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey
( 4.6 / 5 ) 11 ratings
Fränkische Rohrwerke 22370050
This image may differ from the desired article.
Fränkische Rohrwerke 22370050Fränkische Rohrwerke 22370050Fränkische Rohrwerke 22370050
79,80 EUR 83,16 EUR
( 94,96 EUR incl. VAT )
≈ £66.79  |  ≈ $87.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 25 pieces
In Stock: >5 pieces
1x Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey
Datasheet:file_download Download
Lieske Part No.:457019
Mfg Part No: 22370050
UPC/EAN: 4013960180206
Weight:0.388 kg
Type:clipfix 50
Graduated prices net
From piecesPrice per pieces
671,42 EUR
1263,04 EUR
2454,66 EUR
3646,28 EUR

Product information for Fränkische Rohrwerke 22370050:

The clipfix 50 is a plastic clamp from manufacturer Fränkische Rohrwerke, specifically designed for securing plastic conduit pipes in electrical installations. The product is made of polypropylene and is available in grey (RAL 7035). It is non-flame propagating and is used for secure anchoring of pipes such as isofix-EL-F, FPKu-EM-F, FPKu-ES-F, as well as all corrugated pipes. The clamp is designed for a nominal size of 50 mm and allows the fixation of a single pipe.

Applications
The clipfix 50 is used in electrical installations, particularly for securing installation conduits in indoor and outdoor environments. It is suitable for installations in screed, prefabricated construction, concrete, wood, soil, under plaster, on plaster, and outdoors. The clamp is also intended for applications in the machine construction industry and for hot asphalt installations. Standard installation spacing is 90 cm; however, when using clipsib securing brackets, spacing can be reduced to 60 cm. The specified spacing applies for temperatures up to 40 °C; for temperatures up to 50 °C, spacing must be reduced accordingly.

Functions and Equipment in Detail
The clamp can be mounted and arranged in series on a C-profile rail with a width of 10 mm, enabling modular and flexible installation on profiles. Fixation is achieved via screw holes, ensuring secure attachment to the substrate. For nominal sizes 40, 50, and 63, clipsib securing brackets are included, enhancing stability under increased loads. The clamp is not UV-resistant, meaning it may experience material degradation under prolonged direct sunlight exposure.

Technology Explained Simply
The clipfix 50 is made of polypropylene, a robust plastic known for its high mechanical strength and chemical resistance. The clamp is non-flame propagating, meaning it does not contribute to fire spread in case of fire. The standard grey colour (RAL 7035) is commonly used for installation accessories in electrical engineering. The clamp is designed for a maximum of one pipe and can be mounted on C-profile rails. Dimensions are 62 mm in width and 56 mm in height.

Compatibility and Accessories
The clamp is compatible with plastic conduit pipes isofix-EL-F, FPKu-EM-F, FPKu-ES-F, as well as all corrugated pipes. As an accessory, the M50 Quick-Clamp PP light grey RAL7035 is available, also suitable for securing installation conduits. The use of clipsib securing brackets for nominal sizes 40, 50, and 63 is recommended to enhance fixation security.

Installation and Mounting
Mounting is done by securing to a C-profile rail (10 mm) using screws. The clamp can be arranged in series or stacked, enabling flexible and modular installation. Under extreme conditions such as vibration, high temperatures, overhead installations, or heavy loads, the specified clamp spacing must be significantly reduced or replaced with metal securing brackets (ASG-E) to ensure installation safety.

Operational Advantages
The clipfix 50 provides secure and stable fixation of installation conduits. Modular mounting on C-profile rails enables flexible and efficient installation. The use of clipsib securing brackets for nominal sizes 40, 50, and 63 increases fixation security. The clamp is non-flame propagating, improving fire safety of the installation. Installation spacing is adjusted according to application conditions to ensure secure and stable fixation.

The item price shown refers to 25 pieces Fränkische Rohrwerke 22370050
Delivery form
Width62 mm
Height56 mm
Minimum quantity25
Pallet content4000
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyethylene (PE)
Surface protectionOther
Max. number of tubes1
Mounting typeScrew hole
ColourGrey
ClosedJa
Suitable for protective hosesJa
TackableJa
With inlayNo
With wall sealNo
UV resistantNo


Product data sheet
Datasheet for Fränkische Rohrwerke 22370050, EAN: 4013960180206

Questions & answers

What is the delivery time of Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey ?

The article Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 22370050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey we can offer you a price of 71,42 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 22370050 Fränkische clipfix 50 plastic clamp grey is offered by us in a sales unit of 25 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
