Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling

Your rating:
Average rating
product review for Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling
( 4.4 / 5 ) 18 ratings

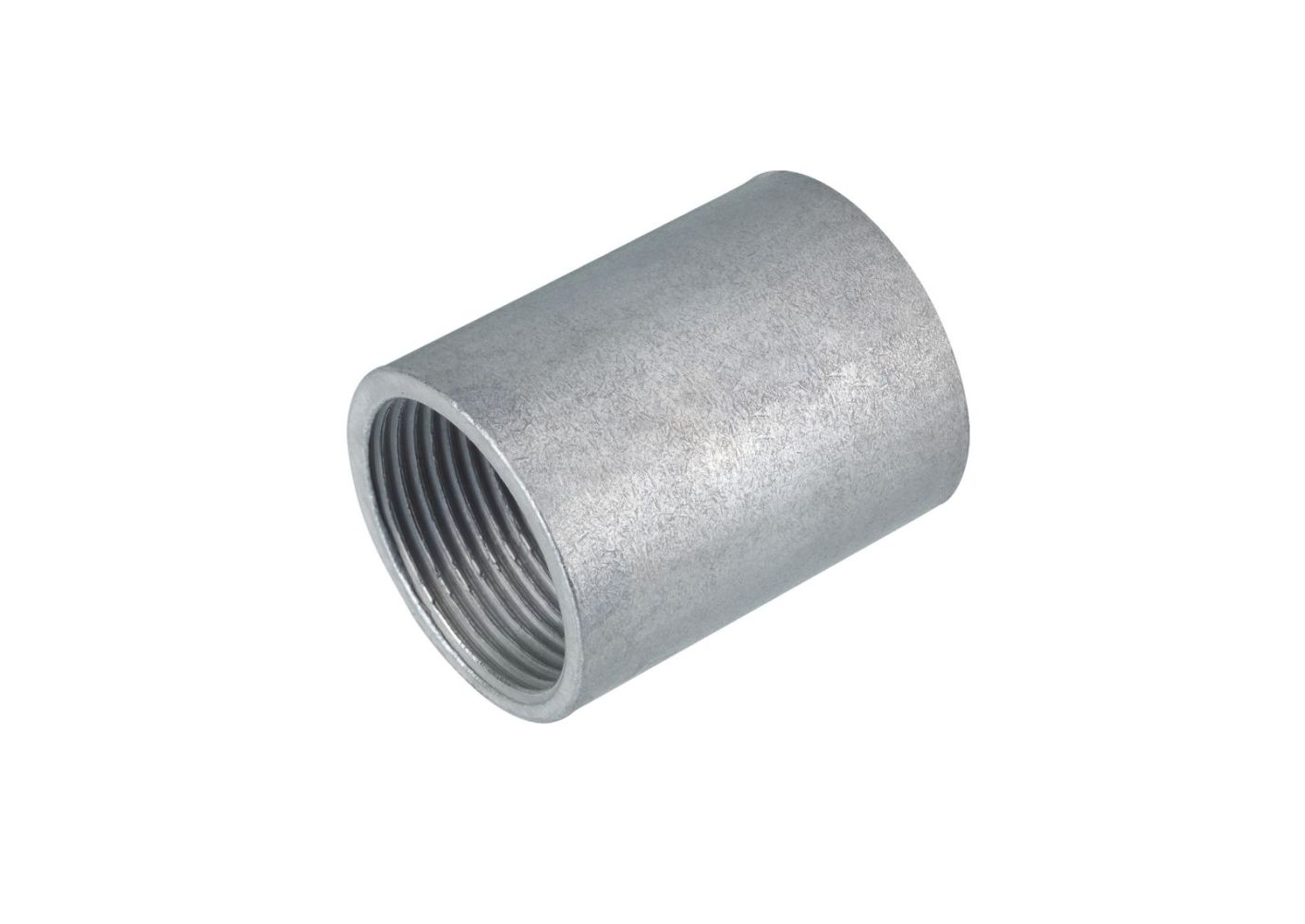

Fränkische Rohrwerke 20450020
This image may differ from the desired article.
Fränkische Rohrwerke 20450020Fränkische Rohrwerke 20450020Fränkische Rohrwerke 20450020
7,28 EUR 7,58 EUR
( 8,66 EUR incl. VAT )
≈ £6.09  |  ≈ $8.00
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling
Datasheet:file_download Download
Lieske Part No.:580532
Mfg Part No: 20450020
UPC/EAN: 4013960166231
Weight:0.123 kg
Type:SM-E-V 20 verzinkt Zn-Ni
Graduated prices net
From piecesPrice per pieces
256,46 EUR
505,64 EUR
1004,82 EUR
2504,00 EUR

Product information for Fränkische Rohrwerke 20450020:

The Fränkische SM-E-V 20 verzinkt Zn-Ni is a steel pipe threaded coupling, specifically developed for use in electrical installation applications. It is made of rolled mild steel and is galvanically/electrolytically zinc-coated, with the surface coated with a zinc-nickel alloy. This version ensures high corrosion resistance and is particularly suitable for use in environments with increased humidity or outdoors. The coupling features internal threading and is designed for connecting zinc-coated steel pipes of type Staro threaded-ES-V, as well as flexible steel pipes FFS-ES and FFSK-ES-UV. The use is system-tested, meeting the requirements for functional integrity (E30/E60/E90).

Applications
The SM-E-V 20 verzinkt Zn-Ni is suitable for use in various areas of electrical installation, including machine construction, hot asphalt, screed installation, prefabricated construction, outdoor use, in concrete, on wood, in soil, under plaster, and on plaster. The UV resistance makes it suitable for outdoor applications where exposure to sunlight must be considered. The coupling is designed for the installation of circuits with functional integrity, meaning it maintains its function even under increased thermal loads, such as during fires.

Functions and Equipment in Detail
The threaded coupling is equipped with internal threading, enabling a secure and tight connection between two pipe sections. The surface is not polished or brushed, but protected by the galvanic zinc-nickel coating. The coupling is not two-piece, not separable, not eccentric, and does not feature a locking function. There is no inspection opening or sealing, as the connection is sealed by the thread and material properties. The color of the coupling corresponds to the typical zinc appearance, resulting from the galvanic coating.

Technology Explained Simply
The use of rolled mild steel ensures high mechanical strength and shape stability of the coupling. The galvanic zinc-nickel coating provides additional corrosion protection against environmental influences such as moisture, acids, alkalis, and solvents. The UV resistance protects the material from degradation due to ultraviolet radiation, which is particularly important for outdoor applications. Standardization is according to DIN EN 61386-1 and DIN EN 61386-21, which define general and specific requirements for electrical installation pipe systems. The coupling is therefore suitable for use in electrical power and information lines.

Compatibility and Accessories
The SM-E-V 20 verzinkt Zn-Ni is specifically designed for connecting with steel pipes Staro threaded-ES-V, FFS-ES, and FFSK-ES-UV. These pipes are also zinc-coated and designed for use in electrical installations. The accessory mentioned is the threaded nipple SN-E-V, which can be used to extend or connect pipe sections. The coupling is not equipped with seals, as the sealing function is provided by the thread and material properties.

Installation and Mounting
Mounting is done by screwing the coupling into the internal threads of the pipes to be connected. The connection is mechanically stable and tight, without requiring additional sealing materials or adhesives. The coupling is not separable, so the connection is made solely by the thread. Installation follows standard procedures for electrical installation pipe systems, with compliance required with standards DIN EN 61386-1 and DIN EN 61386-21.

Operational Advantages
The SM-E-V 20 verzinkt Zn-Ni offers high mechanical stability and corrosion resistance, extending the lifespan of the installation. The UV resistance enables outdoor use without material degradation. Functional integrity (E30/E60/E90) ensures that the circuits remain operational even under increased thermal loads. System-tested use guarantees compliance with required safety standards. The coupling is suitable for use in various environments, increasing its flexibility.

Chemical Properties
The coupling is resistant to oils, paints, water, weak alkalis, and solvents. It is conditionally resistant to acids, strong alkalis, and sulfur. The material is halogen-free, low smoke, and non-flame propagating, providing additional safety benefits. The high-speed properties enable efficient processing and installation.

Standards and Approvals
The coupling complies with standards DIN EN 61386-1 and DIN EN 61386-21, which apply to electrical installation pipe systems. Manufacturing is carried out according to DIN VDE V 0604-2-100, DIN EN 61034-2, and DIN EN 61386-1. The risk analysis confirms that the product has been manufactured and tested according to harmonized standards, with all safety-relevant tests being fulfilled. There is no further risk from the product.

Application Areas
The coupling is suitable for use in machines, hot asphalt, screed, prefabricated construction, outdoors, in concrete, on wood, in soil, under plaster, and on plaster. The versatility of application areas makes it a universal component in electrical installation.

Accessories
The accessory includes the threaded nipple SN-E-V, which can be used to extend or connect pipe sections. The coupling itself is not equipped with seals, as the sealing function is provided by the thread and material properties.

Material Properties
The coupling is made of rolled mild steel and is galvanically/electrolytically zinc-coated. The surface is coated with a zinc-nickel alloy, ensuring high corrosion resistance. The coupling is halogen-free, low smoke, and non-flame propagating. The high-speed properties enable efficient processing and installation. The UV resistance protects the material from degradation due to ultraviolet radiation.

Safety and Testing
The coupling has been manufactured and tested according to harmonized standards DIN EN 61386-1 and DIN EN 61386-21 in accordance with EU harmonization regulations. All safety-relevant tests have been fulfilled. There is no further risk from the product.

Application Areas
The coupling is suitable for use in machines, hot asphalt, screed, prefabricated construction, outdoors, in concrete, on wood, in soil, under plaster, and on plaster. The versatility of application areas makes it a universal component in electrical installation.

Accessories
The accessory includes the threaded nipple SN-E-V, which can be used to extend or connect pipe sections. The coupling itself is not equipped with seals, as the sealing function is provided by the thread and material properties.

Material Properties
The coupling is made of rolled mild steel and is galvanically/electrolytically zinc-coated. The surface is coated with a zinc-nickel alloy, ensuring high corrosion resistance. The coupling is halogen-free, low smoke, and non-flame propagating. The high-speed properties enable efficient processing and installation. The UV resistance protects the material from degradation due to ultraviolet radiation.

Safety and Testing
The coupling has been manufactured and tested according to harmonized standards DIN EN 61386-1 and DIN EN 61386-21 in accordance with EU harmonization regulations. All safety-relevant tests have been fulfilled. There is no further risk from the product.

Delivery form
Outer diameter23 mm
Minimum quantity50
Base unit quantityPiece
Technical data
MaterialMetal
Material qualitySteel
Surface protectionGalvanic/electrolytic zinc plated
Quality of surface coatingGalvanic zinc-nickel coated
ModelThread
ColourZinc
Seal materialNo sealing
UV resistantJa
Surface polishedNo
Surface brushedNo
With lock functionNo
Two pieceNo
With inspection opening and coverNo
With outer threadNo
With inner threadJa
SeparableNo
EccentricNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20450020, EAN: 4013960166231

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling ?

The article Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20450020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling we can offer you a price of 6,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
