Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible

Your rating:
Average rating
product review for Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible
( 4.5 / 5 ) 102 ratings

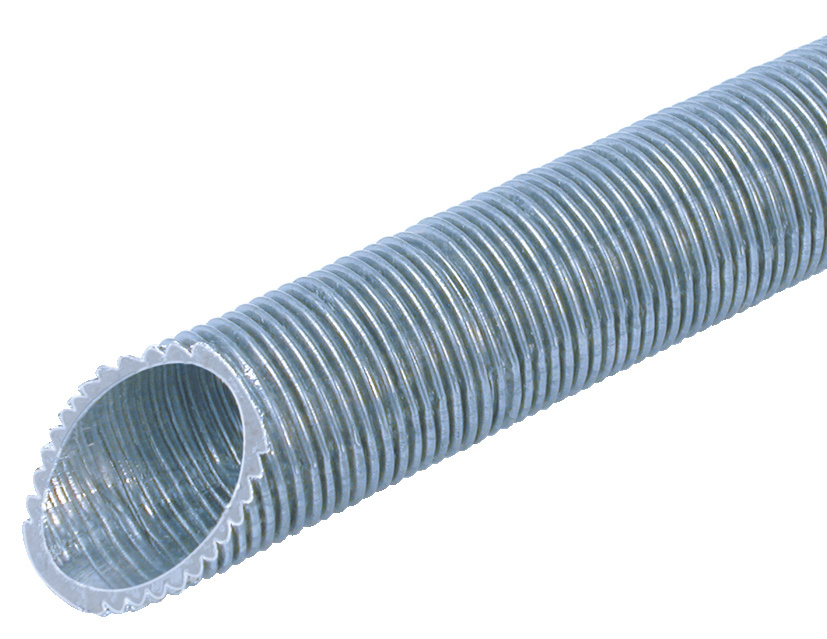

Fränkische Rohrwerke 20110020
This image may differ from the desired article.
Fränkische Rohrwerke 20110020Fränkische Rohrwerke 20110020Fränkische Rohrwerke 20110020Fränkische Rohrwerke 20110020
876,85 EUR 913,77 EUR
( 1.043,45 EUR incl. VAT )
≈ £733.92  |  ≈ $963.66
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 25 meters
In Stock: 1 meters
1x Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible
Datasheet:file_download Download
Lieske Part No.:218270
Mfg Part No: 20110020
UPC/EAN: 4013960178562
Weight:6.025 kg
Type:FFS-ES 20

Product information for Fränkische Rohrwerke 20110020:

The Fränkische Rohrwerke FFS-ES 20 is a heavy, flexible steel pipe made of galvanised strip steel, specifically designed for use in electrical installation systems. It features a tight ribbing and an intermediate layer of special insulation, ensuring high mechanical stability and thermal resistance. The pipe is equipped with a single-sided threaded coupling (SM-E-V), enabling a secure connection to other pipe sections. It is used for surface and recessed installations in residential and industrial construction, as well as for laying in hot asphalt. The pressure resistance class corresponds to heavy class 4 according to EN 61386-1, with a minimum load of 1250 N over 5 cm. The temperature resistance reaches up to +250 °C, allowing laying in hot asphalt layers. The surface is galvanised/electrolytically zinc-coated, providing low corrosion protection both internally and externally.

Applications
The FFS-ES 20 is suitable for a wide range of installation situations. It can be laid under plaster, on plaster, in concrete, in screed, in hot asphalt, and on wood. Laying in the ground is not intended. Outdoor use is not recommended according to the manufacturer's information. The pipes are intended for machine and plant installations, as well as for use in prefabricated construction. The high pressure resistance makes them particularly suitable for areas with mechanical stress, such as in industrial plants or when laying in screed and asphalt floors.

Functions and Equipment in Detail
The pipe is made of rolled strip steel and is flexibly corrugated, enabling flexible installation. The tight ribbing ensures high stiffness and stability, while the intermediate layer of special insulation provides additional protection against mechanical stress. The single-sided coupling (SM-E-V) allows for a secure and tight connection to other pipe sections. The surface is galvanised, providing corrosion protection rated as low. The pipe's colour corresponds to the typical zinc tone.

Technology Explained Simply
The pressure resistance of 1250 N over 5 cm corresponds to heavy class 4 according to EN 61386-1, protecting the pipe against mechanical loads, such as those occurring during laying in screed or asphalt. The temperature resistance up to +250 °C allows laying in hot asphalt, where high temperatures occur during processing. The galvanic zinc coating provides corrosion protection, which is however rated as low. The pipe is not flame-propagating, providing additional safety during installation. The electrical conductivity enables effective shielding of cables and conductors.

Compatibility and Accessories
The FFS-ES 20 is compatible with the threaded coupling SM-E-V 20450020, used to connect multiple pipe sections. This coupling is also made of galvanised steel and matches the internal diameter of the pipe. The combination of pipe and coupling enables a secure and tight connection, meeting the requirements of standards VDE 0605 and DIN EN 61386-22. The use of appropriate accessories ensures proper installation and prevents mechanical damage or leaks.

Installation and Mounting
The pipe can be laid both under plaster and on plaster. Installation in concrete, screed, hot asphalt, and on wood is possible. Laying in the ground is not intended. Mounting is done by bending and connecting with the single-sided coupling. The bending deformation is flexible, allowing adaptation to the specific installation situation. The minimum quantity is 25 metres, with a pallet content of 1000 metres. The delivery form is specified in metres.

Operational Advantages
The high pressure resistance and thermal resistance up to +250 °C make the FFS-ES 20 a robust pipe for demanding operating conditions. The electrical conductivity enables effective shielding of cables and conductors. Use in hot asphalt and screed is possible, expanding the range of applications. Connection with the SM-E-V coupling ensures a secure and tight joint. Conformity with standards EN 61386-1 and EN 61386-22 guarantees the product's quality and safety. Laying in various materials such as concrete, screed, and wood expands application possibilities in construction.

The item price shown refers to 25 meters Fränkische Rohrwerke 20110020
Delivery form
Minimum quantity25
Pallet content1000
Base unit quantityMetre
Technical data
MaterialSteel
Material qualitySteel (strip steel rolled)
Surface protectionGalvanic/electrolytic zinc plated
Quality of surface coatingGalvanic zinc coated
ModelPliable corrugated
Connection 1Inner thread metric
Connection 2Tube end
ColourZinc
Pressure resistance class per EN 61386-1heavy (Class 4, 1250 N)
Inner diameter16 mm
Outer diameter20 mm
Surface polishedNo
Surface brushedNo
Flush-mounted installationJa
Surface mountingJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (bitumen, hot asphalt)Ja
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Installation on woodJa
Suitable for hollow wall installationJa
Suitable for underground installationNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20110020, EAN: 4013960178562

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible ?

The article Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20110020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible is offered by us in a sales unit of 25 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you




Fitting accessory for Fränkische Rohrwerke 20110020 Fränkische FFS-ES 20 steel pipe from strip steel with tight corrugation flexible

Fränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling Fränkische Rohrwerke LogoFränkische Rohrwerke 20450020 Fränkische SM-E-V 20 verzinkt Zn-Ni steel pipe threaded coupling The Fränkische SM-E-V 20 verzinkt Zn-Ni is a steel pipe threaded coupling, specifically developed for use in electrical installation applications. It is made of rolled mild steel and is ...

Lieske Part No.: 580532
Mfg Part No: 20450020
Type: SM-E-V 20 verzinkt Zn-Ni
7,28 EUR 7,58 EUR
Fränkische Rohrwerke 20450020 plus VAT
≈ £6.09  |  ≈ $8.00
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
