Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black

Your rating:
Average rating
product review for Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black
( 4.4 / 5 ) 16 ratings

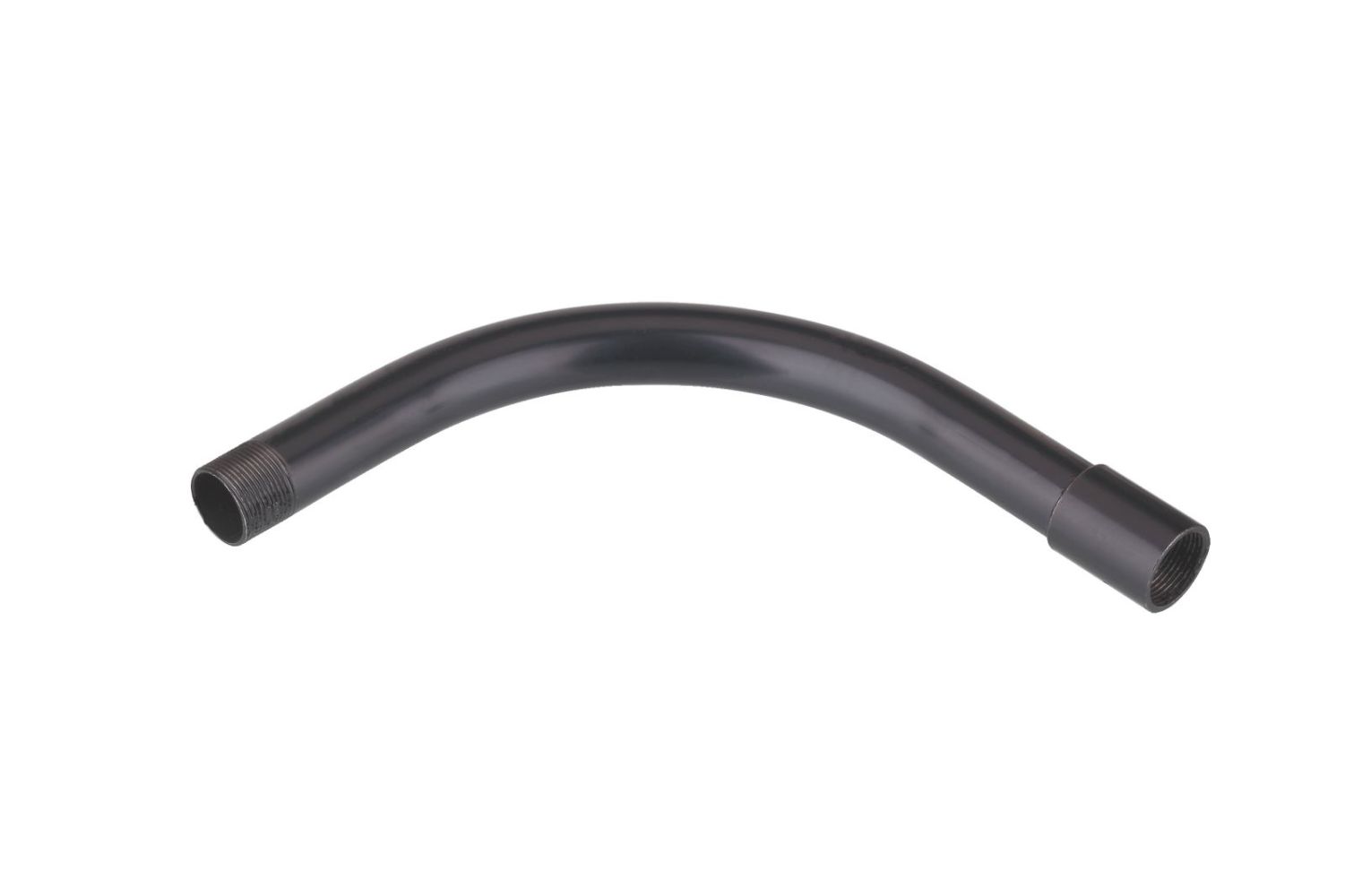

Fränkische Rohrwerke 20260032
This image may differ from the desired article.
Fränkische Rohrwerke 20260032Fränkische Rohrwerke 20260032Fränkische Rohrwerke 20260032
37,19 EUR 38,76 EUR
( 44,26 EUR incl. VAT )
≈ £31.13  |  ≈ $40.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black
Datasheet:file_download Download
Lieske Part No.:550859
Mfg Part No: 20260032
UPC/EAN: 4013960165609
Weight:0.123 kg
Type:SB-E 32 lackiert
Graduated prices net
From piecesPrice per pieces
1033,84 EUR
2530,50 EUR
5027,15 EUR
7523,80 EUR

Product information for Fränkische Rohrwerke 20260032:

The SB-E 32 lacquered is a steel pipe threaded elbow from the SB-E product series, manufactured by Fränkische Rohrwerke. It serves as a connection component for the lacquered steel pipe Staro threaded-ES in the field of electrical installation. The component is made of rolled mild steel and features a baked-on lacquer coating in black, ensuring an even surface finish and protection against corrosion. The elbow is threaded on both sides and includes a screwed-on coupling (SM-E) on one side, enabling a secure and tight connection. The construction is non-flexible and has a 90° angle, making it suitable for rectangular cable runs in installations.

Applications
The SB-E 32 lacquered is designed for use in various installation scenarios, including machine construction, prefabricated construction, screed installation, concrete, wood, soil, under plaster, on plaster, and outdoors. The material properties and surface treatment make it suitable for applications involving mechanical stress and temperature fluctuations. Outdoor use is possible, however, the surface is not UV-resistant, which may lead to discoloration or degradation of the lacquer coating under prolonged sun exposure.

Functions and Equipment in Detail
The threaded elbow has an outer diameter of 32 mm and an inner diameter of 29 mm. The coupling provides a mechanically stable connection required for the installation of electrical cables in pipe systems. The baked-on lacquer ensures an even, black-colored surface that protects against corrosion. The design as a threaded elbow with coupling allows for easy assembly and disassembly, with the connection secured by the thread. The construction is not made in two parts, but is manufactured as a single unit.

Technology Explained Simply
The product is made of steel, providing high mechanical strength and pressure resistance. The baked-on lacquer offers additional corrosion protection, although it is not UV-resistant. The temperature resistance is described as extreme, meaning the component remains functional even at high temperatures. Standardization is carried out according to DIN EN 61386-1 and DIN EN 61386-21, which apply to electrical installation pipe systems. DIN EN 61386-21 refers to special requirements for rigid electrical installation pipe systems.

Compatibility and Accessories
The SB-E 32 lacquered is specifically designed for connection with the lacquered steel pipe Staro threaded-ES. The coupling (SM-E) is an integral part of the elbow and serves for secure connection.

Installation and Mounting
Mounting is done by screwing the coupling onto the steel pipe Staro threaded-ES. The threaded connection enables a mechanically stable and tight joint. Installation is possible in various environments, including in screed, concrete, soil, and outdoors. The installation is typically carried out in conjunction with other components of the Staro system to ensure continuous cable routing.

Operational Advantages
The high pressure resistance and temperature resistance of the SB-E 32 lacquered ensure long service life and reliability in operation. The baked-on lacquer protects the steel pipe from corrosion, securing functionality over time. Use in various installation scenarios, including outdoors, expands application possibilities. The threaded connection with coupling allows for easy and secure installation, which is straightforward for electricians. Compliance with DIN EN 61386-1 and DIN EN 61386-21 ensures adherence to European safety requirements for electrical installation pipe systems.

Delivery form
Outer diameter32 mm
Inner diameter29 mm
Minimum quantity20
Pallet content480
Base unit quantityPiece
Technical data
MaterialMetal
Material qualitySteel
Surface protectionLacquered
Quality of surface coatingOther
ModelThread
ColourBlack
Angle of bow90 °
UV resistantNo
Surface polishedNo
Surface brushedNo
With sleeveJa
Two pieceNo
With inspection opening and coverNo
FlexibleNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20260032, EAN: 4013960165609

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black ?

The article Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20260032 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Fränkische Rohrwerke 20260032 Fränkische SB-E 32 lacquered steel pipe threaded elbow black we can offer you a price of 33,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
