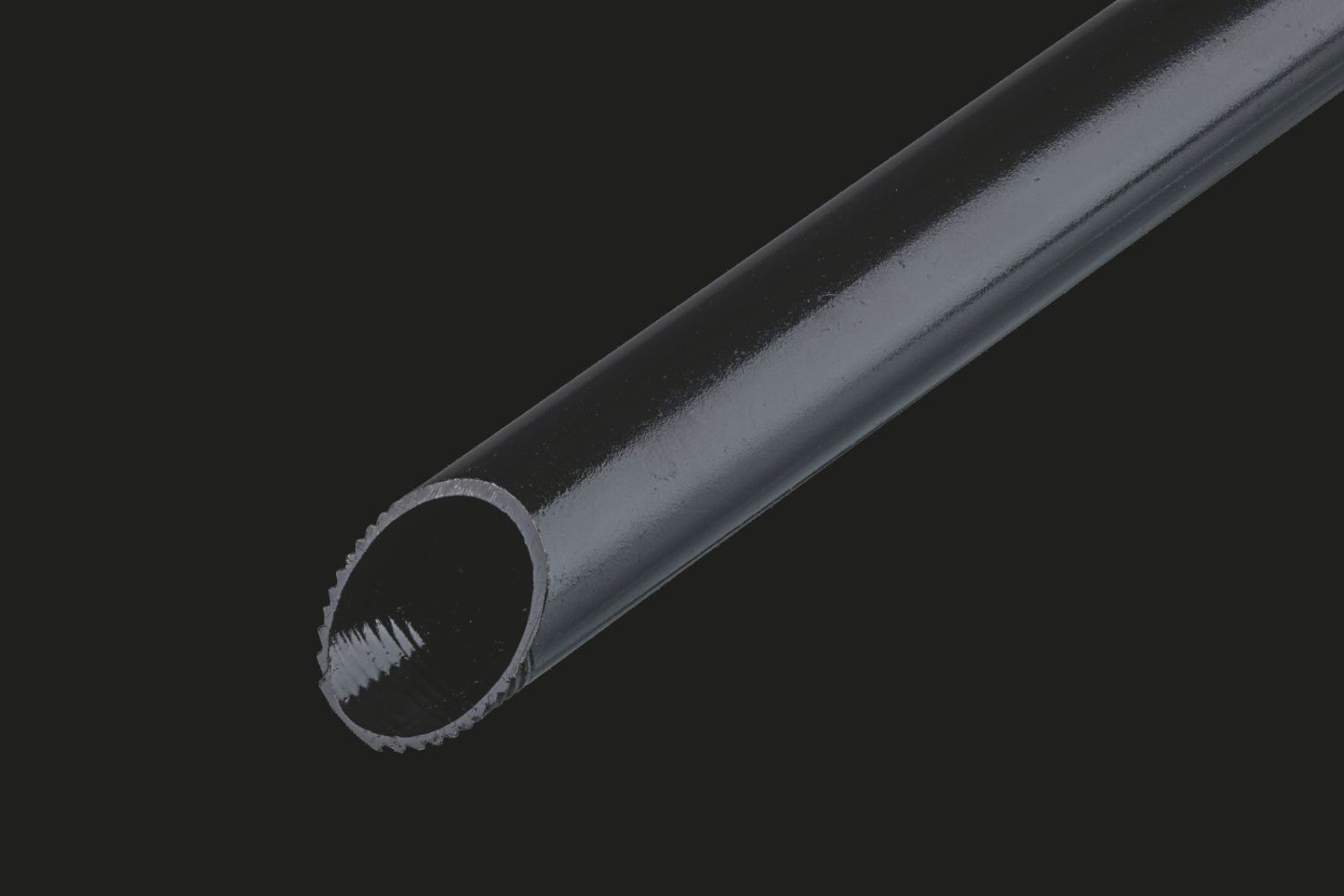

Fränkische Rohrwerke 20210032 Stapa threaded pipe M32 3 m with threaded coupling black
|
93,96 EUR 97,92 EUR |
|||||||||||
|
( 111,81 EUR incl. VAT ) ≈ £78.64 | ≈ $103.26 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Sales unit: 3 meters | |||||||||||
| In Stock: >25 meters | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 196411 | ||||||||||
| Mfg Part No: | 20210032 | ||||||||||
| UPC/EAN: | 4013960165463 | ||||||||||
| Weight: | 3.51 kg | ||||||||||
| Type: | Staro Gewinde-ES 32 schwarz lackiert | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Fränkische Rohrwerke 20210032:
Applications
This product is intended for use in machine and plant installations as well as in prefabricated construction. It is particularly suitable for installations requiring high mechanical load capacity and long-term corrosion protection. Installation in screed, on wood, or in hollow walls is possible, while outdoor and soil installation is not permitted. Use in concrete is also allowed, making it especially suitable for industrial and commercial environments.
Functions and Equipment in Detail
The Staro threaded-ES 32 features very high pressure resistance, corresponding to pressure resistance class 5 (very heavy) according to EN 61386-1, with a minimum load of 4000 N over 5 cm. The surface is lacquered, providing medium corrosion protection both internally and externally. Temperature resistance ranges from -45 °C to +250 °C, making the pipe suitable for use in extreme environments. The baked-on lacquer ensures a durable colour and protective layer, enhancing mechanical stability and protection against external influences.
Technology Explained Simply
The pipe is made of steel (rolled mild steel) and offers high strength and stability. The baked-on lacquer provides a uniform, durable surface that protects against mechanical stress and corrosion. The metric threads on both ends allow for secure and tight connections with other pipe sections or fittings. The integrated coupling (SM-E) on one side simplifies installation and ensures a firm connection that remains stable even under high loads. The classification 55561 according to VDE 0605 and DIN EN 61386-21 confirms suitability for installations requiring functional integrity (E30/E60/E90), which is relevant for fire protection requirements.
Compatibility and Accessories
Various accessories are compatible with this product, facilitating installation and connection. These include the plastic end cap E-Ku-E 32 in grey (article number 25995032) and in black UV-resistant (article number 25996032), as well as the steel pipe threaded elbow SB-E 32 lacquered (article number 20260032). These components enable flexible and secure routing of cables and support integration into existing installation systems.
Installation and Mounting
Mounting is done by screwing the threads at the ends of the pipe to corresponding fittings or other pipe sections. The integrated coupling (SM-E) on one side simplifies the connection and ensures a stable joint. Installation is possible in both in-situ and surface applications, as well as in concrete, screed, and hot asphalt. Installation in soil or outdoors is not intended. The bar length is 3 metres, with a minimum order quantity of 21 metres per delivery.
Operational Advantages
The Staro threaded-ES 32 offers high mechanical strength and pressure resistance, making it suitable for demanding installations. Temperature resistance from -45 °C to +250 °C allows use in various environments. Corrosion protection provided by the baked-on lacquer ensures long service life and low maintenance. Suitability for functional integrity (E30/E60/E90) makes it particularly suitable for fire protection requirements. Use in concrete, screed, and hot asphalt demonstrates the product’s versatility in industrial and commercial electrical installations.
Accessories and Alternatives
Compatible accessories include the plastic end cap E-Ku-E 32 in grey (25995032) and in black UV-resistant (25996032), as well as the steel pipe threaded elbow SB-E 32 lacquered (20260032). These components support flexible and secure cable routing and enable easy integration into existing installation systems.
Practical Use
The Staro threaded-ES 32 is used in industrial and commercial electrical installations where high mechanical loads and long service life are required. Its use in concrete, screed, and hot asphalt demonstrates its versatility. Suitability for functional integrity (E30/E60/E90) makes it particularly suitable for fire protection requirements. Installation is simple and secure, thanks to the double-threaded ends and the integrated coupling (SM-E). The pipe is supplied in bar lengths of 3 metres, with a minimum order quantity of 21 metres per delivery.
Accessories and Alternatives
Compatible accessories include the plastic end cap E-Ku-E 32 in grey (25995032) and in black UV-resistant (25996032), as well as the steel pipe threaded elbow SB-E 32 lacquered (20260032). These components support flexible and secure cable routing and enable easy integration into existing installation systems.
Practical Use
The Staro threaded-ES 32 is used in industrial and commercial electrical installations where high mechanical loads and long service life are required. Its use in concrete, screed, and hot asphalt demonstrates its versatility. Suitability for functional integrity (E30/E60/E90) makes it particularly suitable for fire protection requirements. Installation is simple and secure, thanks to the double-threaded ends and the integrated coupling (SM-E). The pipe is supplied in bar lengths of 3 metres, with a minimum order quantity of 21 metres per delivery.
The item price shown refers to 3 meters Fränkische Rohrwerke 20210032
| Delivery form | |
| Minimum quantity | 21 |
| Pallet content | 735 |
| Base unit quantity | Metre |
| Technical data | |
| Material | Steel |
| Material quality | Steel (mild steel rolled) |
| Surface protection | Lacquered |
| Quality of surface coating | Other |
| Model | Rigid |
| Connection 1 | Inner thread metric |
| Connection 2 | Outer thread metric |
| Colour | Black |
| Pressure resistance class per EN 61386-1 | very heavy (Class 5, 4000 N) |
| Inner diameter | 28 mm |
| Outer diameter | 32 mm |
| Surface polished | |
| Surface brushed | |
| Flush-mounted installation | |
| Surface mounting | |
| Suitable for concrete installation | |
| Machine and plant installation | |
| Suitable for subsurface installation (bitumen, hot asphalt) | |
| Suitable for subsurface installation (screed)) | |
| Outdoor installation | |
| Installation on wood | |
| Suitable for hollow wall installation | |
| Suitable for underground installation | |
