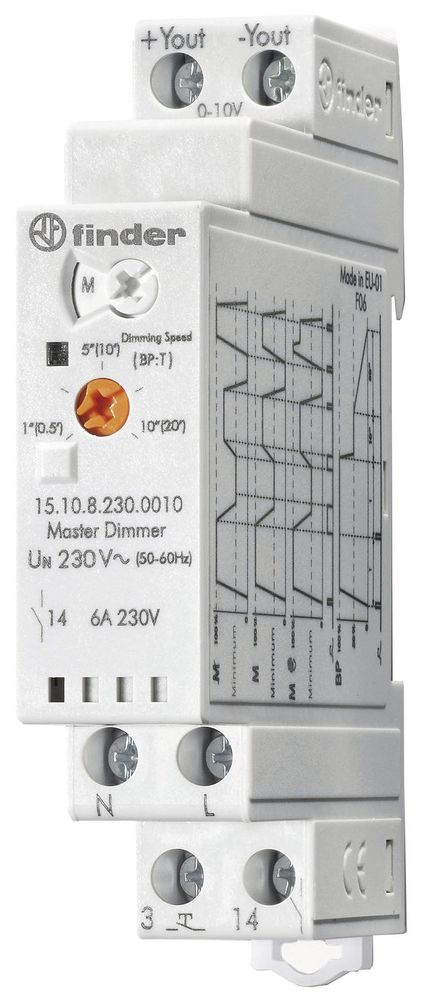

Finder 151082300010 Electronic dimmer master
|
-6% 69,84 EUR 74,59 EUR |
|||||||||||
|
( 83,11 EUR incl. VAT ) ≈ £58.46 | ≈ $76.75 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 296558 | ||||||||||
| Mfg Part No: | 151082300010 | ||||||||||
| UPC/EAN: | 8012823393001 | ||||||||||
| Weight: | 0.054 kg | ||||||||||
| Type: | 15.10.8.230.0010 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Finder 151082300010:
Applications
The dimmer is designed to control up to 32 Slave-Dimmers (Type 15.11), enabling central, decentralized, or combined lighting control in larger rooms or buildings. It can also directly control a 0–10 V load, for example an electronic ballast (EB). The application is for indoor use only, as the protection rating IP 20 does not offer protection against water or dust. The ambient temperature must be between –10 °C and +50 °C.
Functions and Features in Detail
The dimmer offers several adjustable functions: it can be operated with or without Memory function, where the last brightness level is stored. A special Memory function for energy-saving lamps ensures safe and disturbance-free operation of these lamps. The stairwell lighting function with pre-warning via dimming down complies with DIN 18015-2 and ensures gentle light shutdown to avoid startling users. The dimming speed is adjustable and can be varied between 1.5 and 10 seconds. The dimming characteristic can be selected as linear dimming or stepwise dimming.
Technology Explained Simply
The dimmer operates with a 0–10 V/1–10 V output signal, which can be used to control Slave dimmers or connected directly to a 0–10 V load (e.g. EB). With a 0–10 V signal, the maximum current load is +35 mA; with a 1–10 V signal, it is –35 mA. The output contact is a make contact rated 6 A/230 V AC, intended for switching the load (e.g. EB). The maximum inrush current is 30 A at 230 V AC; if exceeded, an additional relay or contactor is required. The supply voltage is in the range of 110 to 230 V AC (50/60 Hz), with the operating range at 0.8 to 1.1 times the nominal voltage. The standby power consumption is 0.5 W.
Compatibility and Accessories
The dimmer is designed for use with Slave dimmers Type 15.11, which are controlled via the 0–10 V/1–10 V signal. The Slave dimmers support various load types, including dimmable energy-saving lamps, LED lamps, incandescent lamps, halogen lamps, and conventional transformers. Suitable accessories include connection bridges (e.g. 022.18), spacers (022.09), DIN rail (100 cm), waterproof connectors (e.g. S21-COMP-00751 to S21-COMP-00755), and device holders for 48,3 cm ( 19 inch ) racks (T150 mm/3HE, front mounting). These components enable flexible installation and wiring.
Mounting and Installation
The dimmer is mounted on a DIN rail with 35 mm width. Mounting is done using cage clamps, which allow for secure and quick connections. Installation requires an electrical connection to the supply voltage (110–230 V AC) as well as wiring for load control. The number of connectable light switches is limited to a maximum of 15, with each switch having a current consumption of ≤ 1 mA.
Operational Advantages
The dimmer offers automatic frequency adaptation (50/60 Hz) and ensures lamp-friendly switching on and off. The adjustable dimming speed and the choice between linear and stepwise dimming allow application-specific customization. The stairwell lighting function with pre-warning increases safety in public and residential areas. Compatibility with various lamp types and transformers expands the range of applications. The thermal overload protection function and the integrated thermal fuse protect the device against short circuits and overloads.
| General | |
| Product type | Master Dimmer |
| Degree of protection | IP 20 |
| Supply voltage | 110 - 230 V AC |
| Frequency | 50/60 Hz |
| Output signal | 0–10 V/1–10 V |
| Max. current load (0–10 V) | +35 mA |
| Max. current load (1–10 V) | -35 mA |
| Output contact | 1 make contact (NO) |
| Max. load current | 6 A |
| Voltage at output contact | 230 V AC |
| Max. starting current | 30 A |
| Stand-by power consumption | 0.5 W |
| Dimming speed | 1.5 - 10 s |
| Memory function | Adjustable |
| Dimming method | phase cut, phase cut |
| Number of slave dimmers | up to 32 |
| Number of connectable pilot lights | 15 |
| Ambient temperature | -10 - +50 °C |
| DIN rail | 35 mm |
| Terminal technology | cage clamps |
| Stairwell lighting function | |
| Memory for energy-saving lamps | |
