Faber Kabel 113380400000 N2XSY medium voltage 1x240 RM/25 12/20kV, 12/20kV according to VDE 0276-620
|
64,70 EUR |
|||||||||||
|
incl. 23,26 EUR copper surcharge ( 76,99 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 218496 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 113380400000 | ||||||||||
| UPC/EAN: | 4046725027027 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Faber Kabel 113380400000:
Application:
For laying underground, outdoors, indoors and in cable ducts for power plants, industry and distribution networks.The cable is easy to lay even on difficult routes due to its good laying properties.

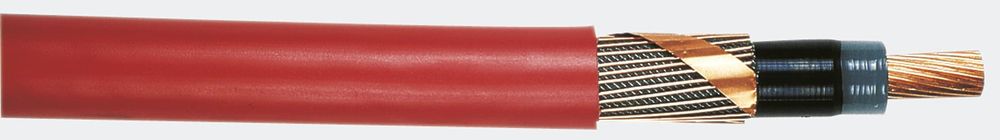

Structure:
Conductor: Bare copper conductor in accordance with VDE 0295,
(RM) round, multi-wire
(>50 mm² are compressed)
extruded inner conductive layer
Core insulation: VPE (cross-linked polyethylene)
extruded outer conductive layer
conductive tape
Shield: Copper wires and cross-conducting spiral
made of copper
foil
Outer sheath: Red PVC
Technical data:
Nominal voltage: 6/10 kV, 12/20 kV and 18/30 kV
Test voltage: 21 kV AC/5 min. at Uo/U=6/10 kV
30 kVAC/5 min. at Uo/U=12/20 kV
45 kV AC/5 min. at Uo/U=18/30 kV
Temperature range: -5 °C - +70 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +90 °C (max.)
Bending radius: 15 x cable diameter
Flame retardancy: according to VDE 0472 T.
804 test type B (=IEC 332-1).
Type: N2XSY 1X240,0 RM/25
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
