Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620
|
53,55 EUR |
|||||||||||
|
incl. 18,51 EUR copper surcharge ( 63,72 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 985900 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 113090400000 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Faber Kabel 113090400000:
Application:
For laying underground, outdoors (however, the cable mustbe protected from sunlight), indoors and in cable ducts for power stations, industrial and distribution
networks. When laying in cable ducts and indoors, it must
be taken into account that the PE sheath is not flame-retardant according to VDE 0472 T. 804, test type B.
The cable is
suitable for unfavourable operating conditions, in particular if
the penetration of water in the longitudinal direction
is to be avoided after mechanical damage.

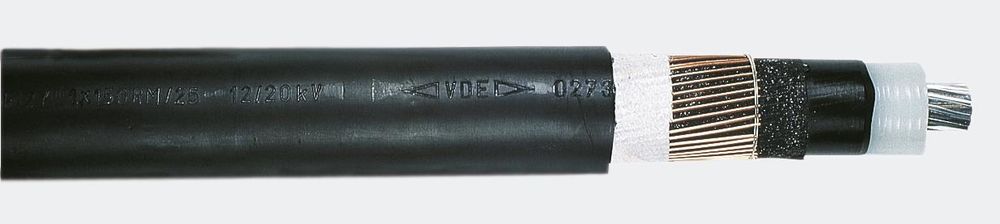

Structure:
Conductor: bare copper conductor in accordance with VDE 0295,
(RM) round, multi-wire
(> 50 mm² are compacted)
extruded inner conductive layer
Core insulation: VPE (cross-linked polyethylene)
extruded outer conductive layer
Gap sealing (conductive tape
and expansion tape)
Shield: copper wires and cross-conductive spiral
made of copper
Filling mixture
Outer sheath: black PE
Technical data:
Nominal voltage: 6 /10 kV, 12/20 kV and 18/30 kV
Test voltage: 15 kV AC/5 min. at Uo/U=6/10 kV
30 kV AC/5 min. at Uo/U=12/20 kV
45 kV AC/5 min. at Uo/U=18/30 kV
Temperature range: -20 °C - +70 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +90 °C (max.)
Bending radius: 15 x cable diameter.
Type: N2XS(F)2Y 1X185 RM/2
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620?
The article Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Faber Kabel 113090400000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620 always at the best possible price. We can give you a discount of 2% on Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620 we can offer you a price of 51,45 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Faber Kabel 113090400000 N2XS (F) 2Y 1x185 RM/25 12/20kV, medium voltage according to VDE 0276-620 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
