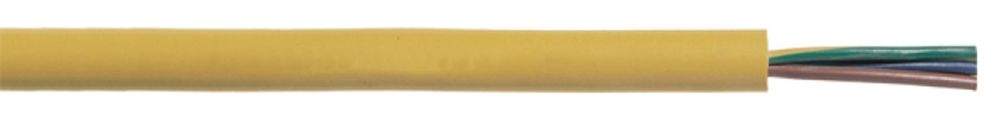

Faber Kabel 050237 NSSHÖU-J 5G35 var. Heavy rubber hose line
|
84,07 EUR |
|
|
incl. 19,98 EUR copper surcharge ( 100,04 EUR incl. VAT ) ≈ £72.22 | ≈ $96.34 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >5 meters | |
| Lieske Part No.: | 1313067 |
|---|---|
| Mfg Part No: | 050237 |
| UPC/EAN: | 4046725093442 |
| Weight: | 1700 kg |
Product information for Faber Kabel 050237:
For very high mechanical stresses, e.g. in underground mining, in open-cast mining, on construction sites and in industry, in dry and damp rooms and outdoors, also for fixed installation, e.g. Application conditions to be determined in each individual case.
Construction
Conductor: tinned copper strand,
fine-wire class 5
Core insulation: rubber compound in accordance with
VDE 0207 T. 20
Core identification: in accordance with VDE 0293-308
Cores twisted with optimal
lay lengths
Outer sheath: rubber compound in accordance with
VDE 0207 T. 21
Sheath color: yellow
Technical data
Nominal voltage: 0.6/1 kV
Test voltage: 3 kV
Insulation resistance: 20MOhm x km at 20 °C
Temperature range: -20 °C - +80 °C (when laying)
-40 °C - +80 °C (after laying)
Operating temperature: +90 °C (max.)
Bending radius: 5 x cable diameter (min.)
for free laying
Fire behavior: in accordance with VDE 0472 T. 804
test type B (=IEC 332-1)
Oil resistance: in accordance with VDE 0472 T. 803
test type A
Flame retardancy: VDE 0482-332-1-2
IEC 60332-1.
Type: NSSHÖU-J 5G35 var.
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Faber Kabel 050237 NSSHÖU-J 5G35 var. Heavy rubber hose line?
The article Faber Kabel 050237 NSSHÖU-J 5G35 var. Heavy rubber hose line is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Faber Kabel 050237 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Faber Kabel 050237 NSSHÖU-J 5G35 var. Heavy rubber hose line always at the best possible price. We can give you a discount of 2% on Faber Kabel 050237 NSSHÖU-J 5G35 var. Heavy rubber hose line if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
