ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole

Your rating:
Average rating
product review for ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole
( 4 / 5 ) 1 ratings
ESL 2CDS271001R0165
This image may differ from the desired article.

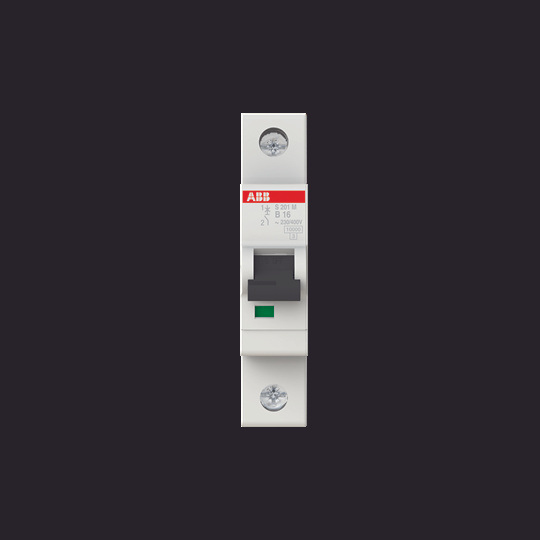

ESL 2CDS271001R0165ESL 2CDS271001R0165
29,92 EUR
( 35,60 EUR incl. VAT )
≈ £25.04  |  ≈ $32.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole
Lieske Part No.:521977
Mfg Part No: 2CDS271001R0165
UPC/EAN: 4016779549455
Weight:0.115 kg
Type:S201M-B16
Graduated prices net
From piecesPrice per pieces
1027,00 EUR
2524,09 EUR
5021,17 EUR
7518,25 EUR

Product information for ESL 2CDS271001R0165:

The S201M-B16 circuit breaker from the S 200 M series by ESL is a 1-pole circuit protection switch that protects cables and conductors against overload and short circuit. It is designed for use in electrical installations and complies with relevant standards and construction regulations, including DIN VDE 0630-430 and DIN VDE 0630-530. The protection function is achieved through a thermal-magnetic tripping mechanism, which automatically disconnects the circuit in the event of sustained overload or sudden short circuit. The series is designed for use in installation boxes and enclosures and is suitable for applications in building electrical systems as well as industrial installations.

Applications

The S201M-B16 is designed for use in electrical systems with nominal voltages up to 250 V/AC and a nominal current of 16 A. It is typically used in distribution enclosures, flush or surface-mounted installations to protect individual circuits such as lighting, sockets or appliance connections. Compliance with standards DIN VDE 0100-11, IEC/EN 60947-1, DIN VDE 0100-101, IEC/EN 60947-2, as well as UL and CSA 22.2 No. 235, makes it suitable for worldwide use, particularly in countries with strict safety requirements for electrical installations.

Functions and Equipment in Detail

A central feature of the S201M-B16 is the patented connection terminal, which enables secure and easy connection. The terminal is operated via a pressure plate, ensuring a stable and reliable connection to conductors with cross-sections up to 35 mm². The connection opening for the conductors is positioned above the connection opening for the phase bar, simplifying wiring and improving visibility of the connections. The connection terminal is insulated and meets protection class IP20, providing protection against finger contact and against solid foreign objects up to 12.5 mm.

Technology Explained Simply

The circuit breaker operates on the principle of thermal and magnetic tripping. In case of overload, a bimetal strip heats up and disconnects the contact after a certain time. In the event of a short circuit, a high current activates an electromagnet, which immediately disconnects the contact. The nominal current of 16 A means that the switch does not trip at a continuous current of 16 A, but only at higher values. The rated switching capacity of 10 kA describes the maximum short-circuit power that the switch can safely interrupt. These values are crucial for selecting the correct switch depending on the installed wiring and network voltage.

Compatibility and Accessories

The S201M-B16 is part of the S 200 M series, which offers an extensive range of accessories. This includes, for example, additional modules for remote tripping, indicators or additional protection functions that can be added depending on the application. Compatibility with other components of the series enables modular expansion of enclosures and distributions. The mounting width is 18 mm, allowing installation on standard installation rails.

Mounting and Installation

Mounting is carried out in a suitable enclosure or distribution box, taking into account the mounting width of 18 mm. The connection terminal allows direct connection of conductors with cross-sections up to 35 mm², with the insulation of the terminal ensuring protection class IP20. Wiring is done by pressing the pressure plate, which securely fixes the conductor in the terminal. The positioning of the connection openings simplifies work during wiring, especially in complex installations.

Operational Advantages

The S201M-B16 offers high reliability through triple quality inspection before delivery, ensuring that each device meets the requirements for quality and performance. The patented connection terminal reduces installation time and minimizes error sources during wiring. Compliance with international standards and approvals enables use in various markets without additional modifications. Clear marking and easy handling facilitate maintenance and replacement during operation.

General
Nominal current16 A
Rated switching capacity10 kA
Number of poles1
Degree of protectionIP20
Terminal clamppatented pressure plate
Conductor cross sectionup to 35 mm²
ApprovalsDIN VDE 0100-11, IEC/EN 60947-1, DIN VDE 0100-101, IEC/EN 60947-2, UL, CSA 22.2 No. 235


Questions & answers

What is the delivery time of ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole?

The article ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS271001R0165 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole always at the best possible price. We can give you a discount of 2% on ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of ESL 2CDS271001R0165 S201M-B16 circuit breaker 16 A 1-pole we can offer you a price of 27,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
