Equip 255105 Patch cable E2000/APC->LC/APC 5.00 m SM Duplex OS2 yellow, content_copy

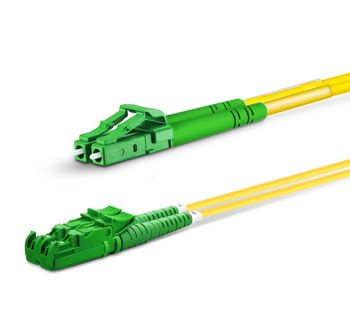

The Equip E2000/APC fiber optic cable, LC/APC, singlemode (SM), provides reliable and high-performance data transmission for professional networking applications. With a cable length of 5.0 meters and an OS2 fiber type, it is specifically designed for high-speed and long-distance communication. The connection is made via an E-2000/APC connector on one end and an LC/APC connector on the other, both angled and polished to minimize back reflections and ensure excellent return loss. This ensures stable optical performance and minimal insertion loss, making it particularly advantageous in data centers, telecommunications networks, and enterprise networks. The cable is yellow, making it easily identifiable as a singlemode cable within the network, and is made of low-smoke, halogen-free jacket material (LSZH), which produces lower toxicity and smoke emission in case of fire. It is designed for full-duplex transmission and is ideal for applications where signal integrity and long-term reliability are critical.

Certificates
Compliance certificates	REACH, RoHS
Features
Cable length	5 m
Fibre optic type	OS2
Cable shape	Round
Connector 1	E-2000
Connector 2	LC
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Yellow
Core diameter	9 µm
Cladding diameter	125 µm
Fiber mode structure	Single-mode
Jacket material	Low smoke zero halogen (LSZH)
Full duplex
Logistics data
Customs product code (TARIC)	8544700000
Country of origin	China
Master (outer) case width	400 mm
Master (outer) case length	300 mm
Master (outer) case height	400 mm
Master (outer) case gross weight	11.5 kg
Products per master (outer) case	200 pc(s)
Packaging data
Package width	275 mm
Package depth	18 mm
Package height	175 mm
Package weight	64 g
Weight & dimensions
Weight	53 g

---
