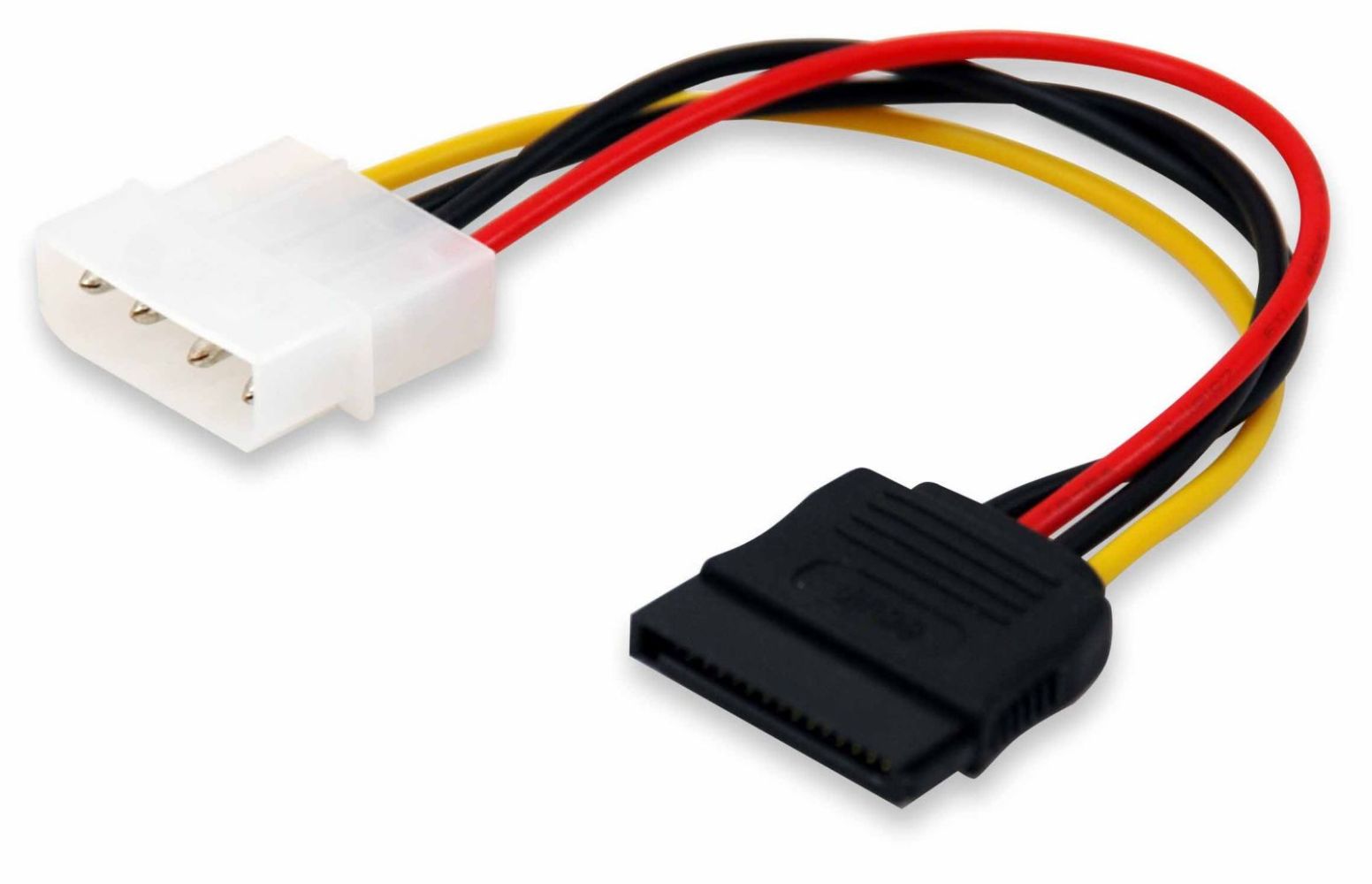

Equip 112050 Power cable SATA 15-pin to 5.25 inch black 0.15 m PVC polybag content_copy

This product is a power supply cable from the brand equip, specifically designed for internal use within computer enclosures. It is used to transmit electrical power from an existing Molex power supply connector (5.25-inch plug) to a SATA 15-pin plug, which connects to SATA-compatible storage devices such as hard drives or SSDs. The cable length is 0.15 meters, suitable for use in compact computer enclosures where short connections optimize space and reduce cable clutter.

Applications
This cable is used in computers where a SATA-compatible drive must be connected to a power supply unit that only provides Molex connectors. It is particularly useful in systems using older power supply standards but integrating modern SATA drives. The cable is intended for use exclusively within the internal area of the computer enclosure, as it is designed as an internal power cable.

Functions and Features in Detail
One end of the cable features a Molex plug (4-pin), which connects to the 5.25-inch power supply socket. The other end has a SATA 15-pin plug, which supplies power to SATA drives. Both connectors are straight, enabling a direct and stable connection. The connectors are fitted with gold-plated contacts, ensuring reliable electrical conductivity and corrosion protection. The contacts have a maximum resistance of 3 Ohms, ensuring efficient power transmission.

Technology Explained Simply
The cable is made of 18 AWG (American Wire Gauge) wire, designed for sufficient current-carrying capacity. The individual conductors are color-coded: yellow (for +12 V), black (for ground), and red (for +5 V), matching the standard color coding for power supply cables. The insulation is made of PVC, providing good mechanical stability and heat resistance. Electrical testing includes 100% open-short and miswiring tests, as well as a minimum insulation resistance of 20 MΩ, ensuring the cable’s reliability and safety. The connection between connectors and cable is made using crimping technology, providing a mechanically stable and electrically reliable connection.

Compatibility and Accessories
The cable is compatible with SATA 15-pin connectors used in hard drives, SSDs, and other SATA-compatible storage devices. The other end fits standard Molex sockets (5.25-inch plug), commonly found on many PC power supplies. It is specifically designed for use in computers where power must be transferred from a power supply unit to a SATA drive. No additional components or accessories are included, as it is designed as a standalone power supply cable.

Installation and Mounting
Installation involves simply plugging the Molex connector into the corresponding socket on the power supply unit and inserting the SATA 15-pin connector into the power socket of the SATA drive. Due to the short cable length of 0.15 m, it is important to plan the component positioning within the enclosure to avoid excessive tension or bending of the cable. The straight shape of the connectors facilitates installation and ensures a secure connection.

Operational Advantages
The cable enables the use of modern SATA drives in systems that only offer Molex connectors. The short cable length reduces cable clutter inside the enclosure and improves airflow. The gold-plated contacts and robust PVC insulation ensure long service life and reliable power delivery. Compliance with the ROHS directive indicates that the product was manufactured in an environmentally friendly manner. Power is supplied via the cable (similar to PoE, but here for power only, not data), enabling power delivery without requiring additional power sources.

Product Color and Appearance
The cable is multicolored, with individual conductors colored in standard yellow, black, and red. The connectors are black, typical for internal computer components. The cable jacket is made of PVC, providing good mechanical stability.

Features
Cable length	0.15 m
Connector 1	Molex (4-pin)
Connector 2	SATA 15-pin
Connector 1 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Multicolour
AWG wire size	18
Logistics data
Harmonized System (HS) code	84733080
Packaging data
Package width	100 mm
Package depth	16 mm
Package height	175 mm
Package weight	18 g
Weight & dimensions
Width	20 mm
Depth	10 mm
Height	150 mm
Weight	15 g

---
