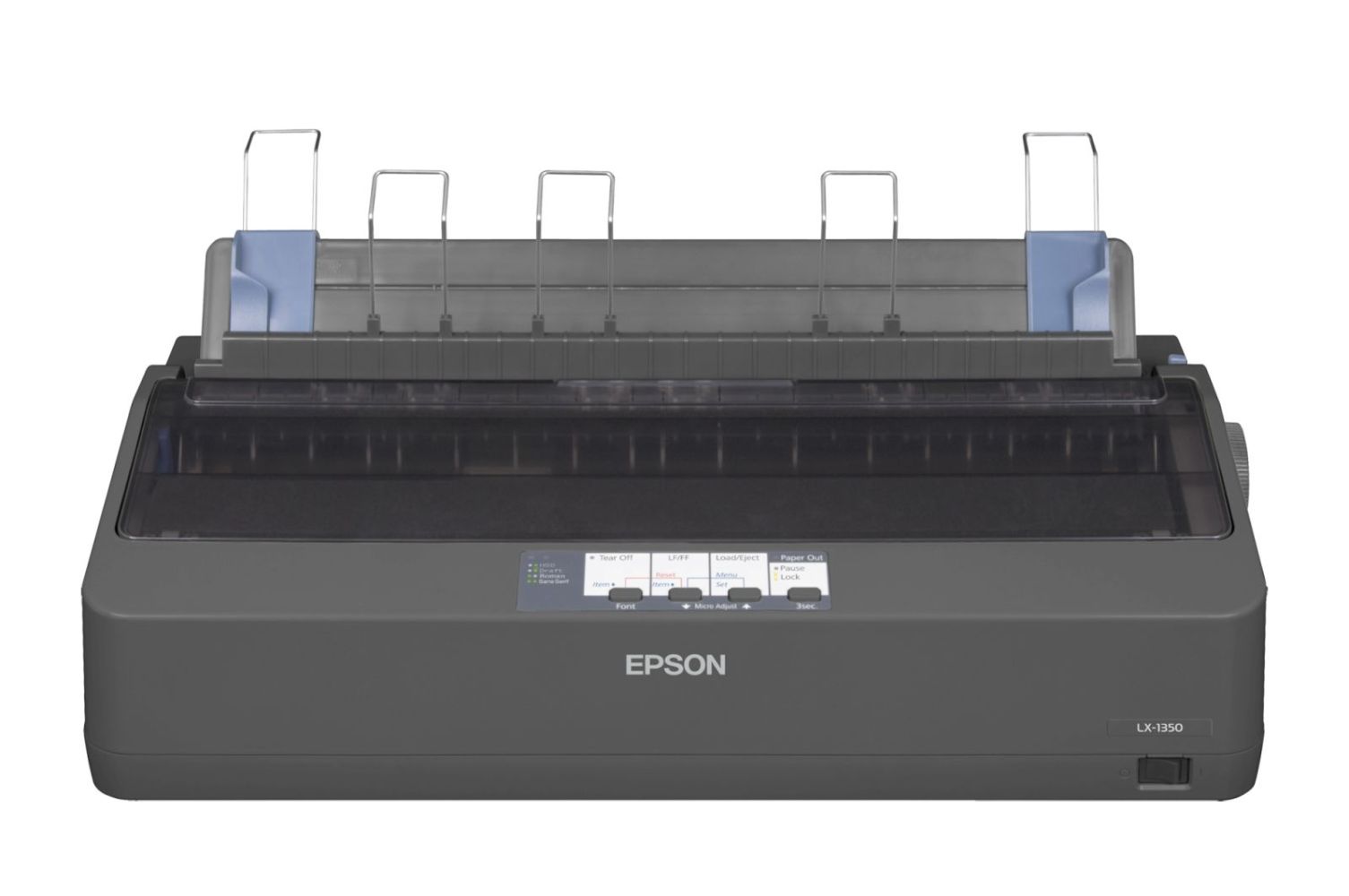

Epson LX-1350 dot matrix printer content_copy

Epson's 9-pin printers offer exceptional print speeds, high-precision alignment and sophisticated paper management. They enable cost-effective printing for commercial, industrial and logistical applications. With the extensive range of narrow and wide format printers, even the most demanding print jobs can be handled.

Highlights

• Dot matrix dot matrix printing
• Print resolution: 240 x 144 dpi
• Print speed up to 347 characters/s
• Ports: USB 2.0-A, Bidirectional parallel, RS-232
• Paper formats: Sheet paper, continuous paper, labels, roll paper, envelopes

Product type

• Standard printer
• ear category (ElektroG): relevant, Category 6: small devices in IT and telecommunications technology, small devices in IT and telecommunications technology B2C

Specifications

• Print function

Printer

• compatible operating systems: Windows
• Printing technology: Needle

Memory

• Internal memory: 128 KB

Connections

• USB standard: 2.0
• Data interfaces: parallel port

Power supply

• Mains
• Power consumption operation: 33 W
• Power consumption standby: 1.1 W

Paper supply

• printable media: envelopes

Basic properties

• Color: Black
• Height : 164 mm
• Length/Depth: 275 mm
• Width: 546 mm
• Weight: 6.6 kg

Scope of delivery

• Epson LX-1350 dot matrix printer
• Drivers and auxiliary programs (CD)
• Power cable
• Ribbon
• Software (CD)
• Operating instructions (CD)
• Installation instructions

Endurance
Print head	9-pin
Print direction	Bidirectional
Print head life	400 million characters
Ribbon life (black, draft)	4 million characters
Mean time between failures (MTBF)	10000 h
Features
Product colour	Black, Grey
Buffer size	128 KB
Sound pressure level (printing)	54 dB
Page description languages	ESC P, PPDS
Country of origin	Indonesia
Logistics data
Products per pallet	27 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.15 m
Products per pallet layer	3 pc(s)
Products per pallet layer (UK)	3 pc(s)
Products per pallet (UK)	27 pc(s)
Pallet length (UK)	120 cm
Pallet width (UK)	100 cm
Pallet height (UK)	2.15 m
Harmonized System (HS) code	84433210
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 80%
Other features
Standard media sizes	Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes
Connectivity technology	Wired
Print technology	Dot matrix
Box contents	Driver and utilities (CD), Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Needles	9 Needles
Packaging data
Quantity per pack	1 pc(s)
Package width	220 mm
Package depth	640 mm
Package height	380 mm
Package weight	7.73 g
Paper handling
Maximum print size	A3 (297 x 420 mm)
Paper tray media types	Envelopes, Labels, Roll
Continuous paper thickness range	0.065 - 0.39 mm
Single sheet thickness range	0.065 - 0.14 mm
Ports & interfaces
Standard interfaces	RS-232, USB 2.0
Power
Power consumption (typical)	33 W
AC input voltage	220 - 240 V
Printing
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	136
Maximum print speed	357 cps
Maximum print speed (draft)	312 cps
Character pitch	10,12 cpi
Maximum number of copies	5 copies
Built-in barcodes	Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Print speed	NLQ: 12 cpi: 78 chars/s, 10 cpi: 65 chars/s, Draft: 12 cpi: 312 chars/s, 10 cpi: 260 chars/s, HighSpeed-Draft: 12 cpi: 357 chars/s, 10 cpi: 347 chars/s
Colour
System requirements
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Server operating systems supported	Windows Server 2008 R2
Bundled software	Epson Status Monitor
Weight & dimensions
Width	546 mm
Depth	275 mm
Height	164 mm
Weight	6.6 kg

---
