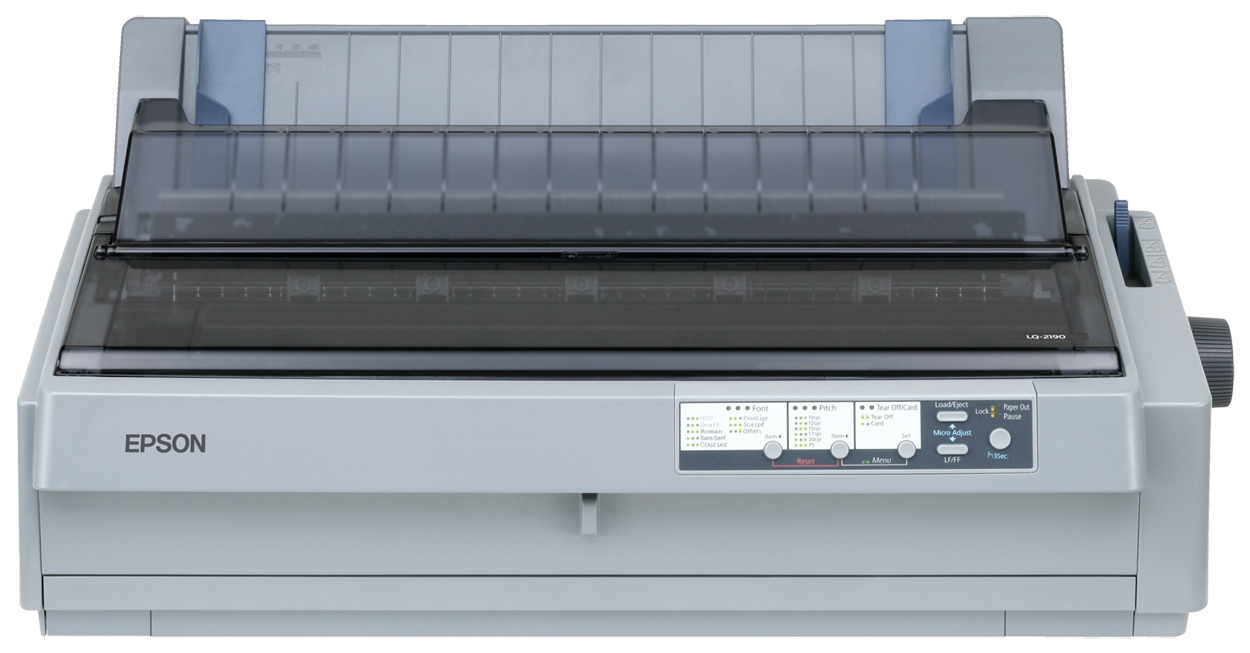

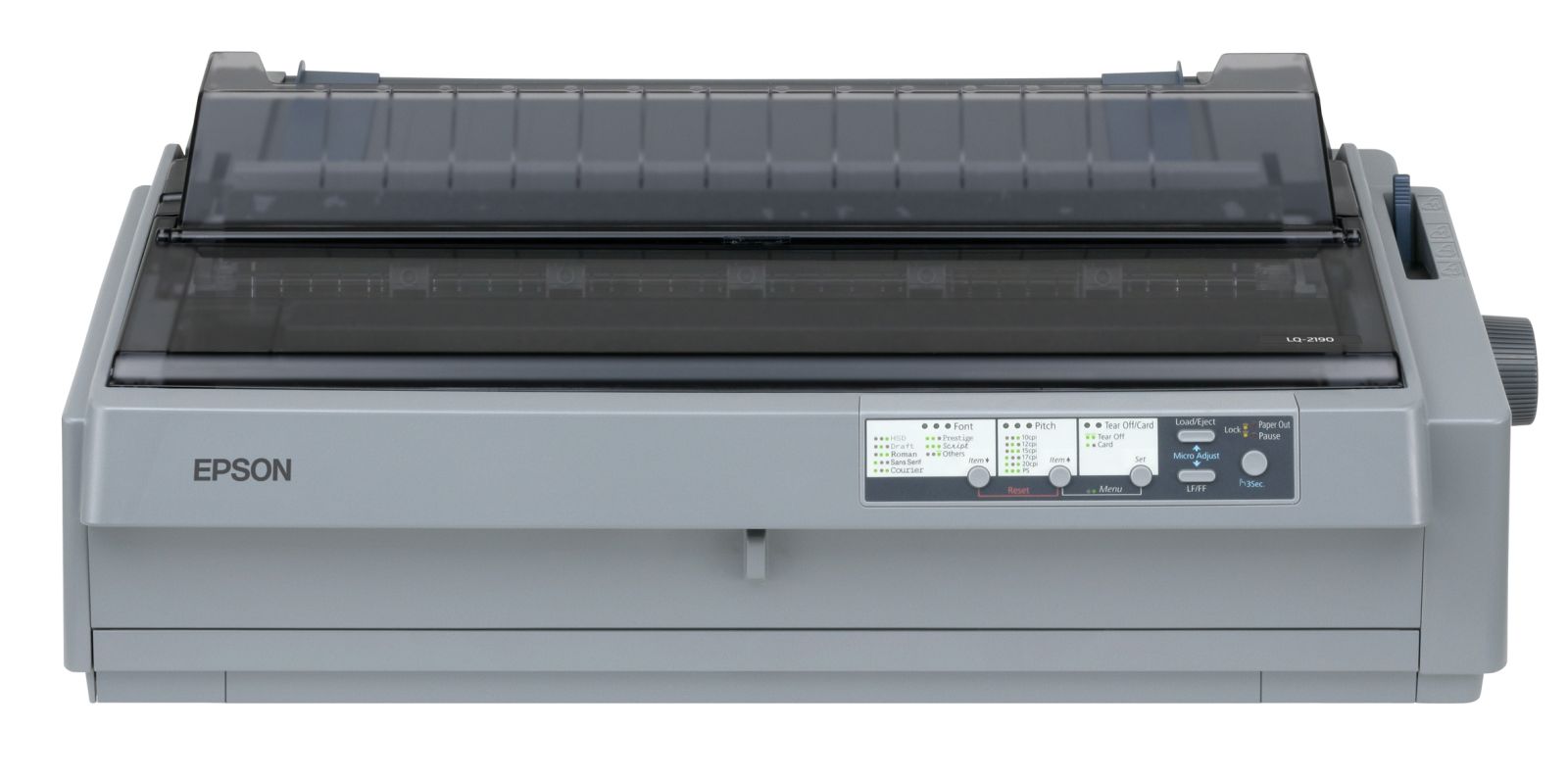

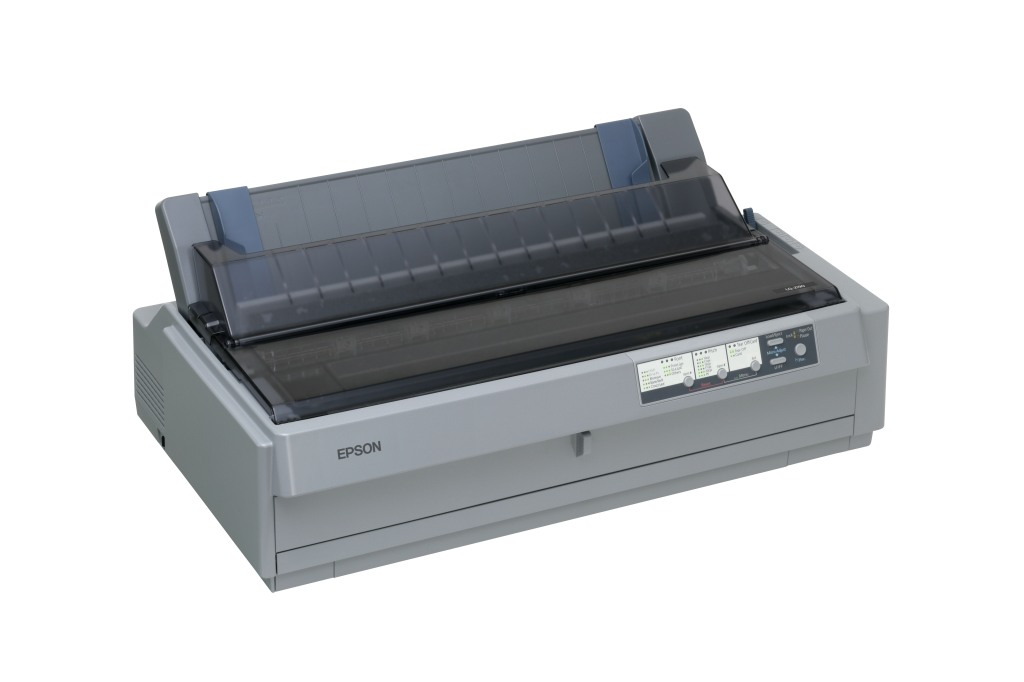

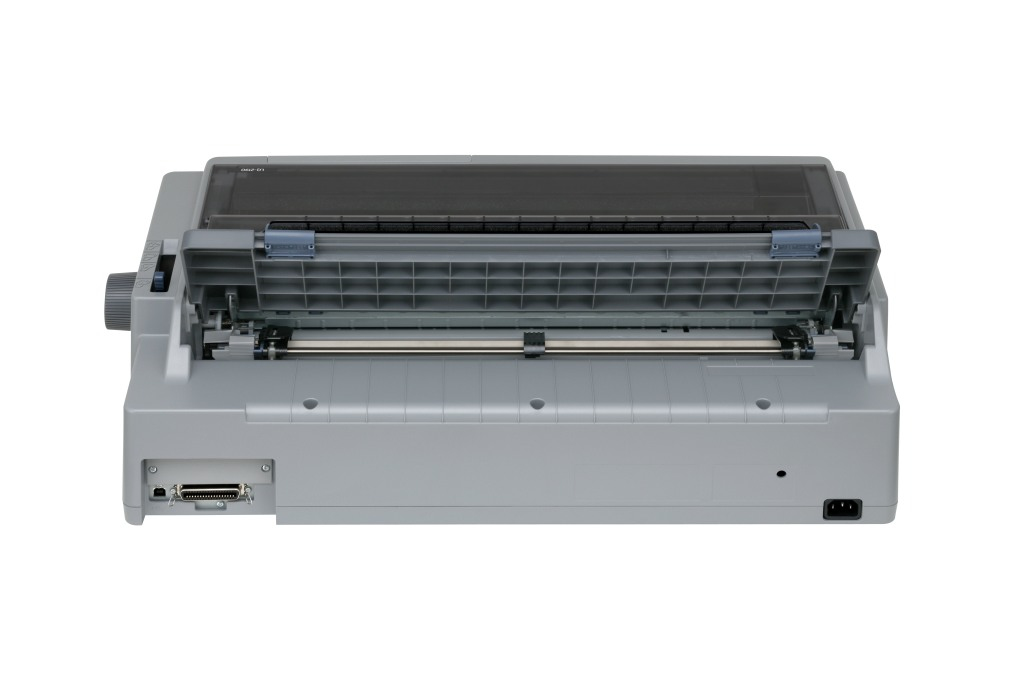

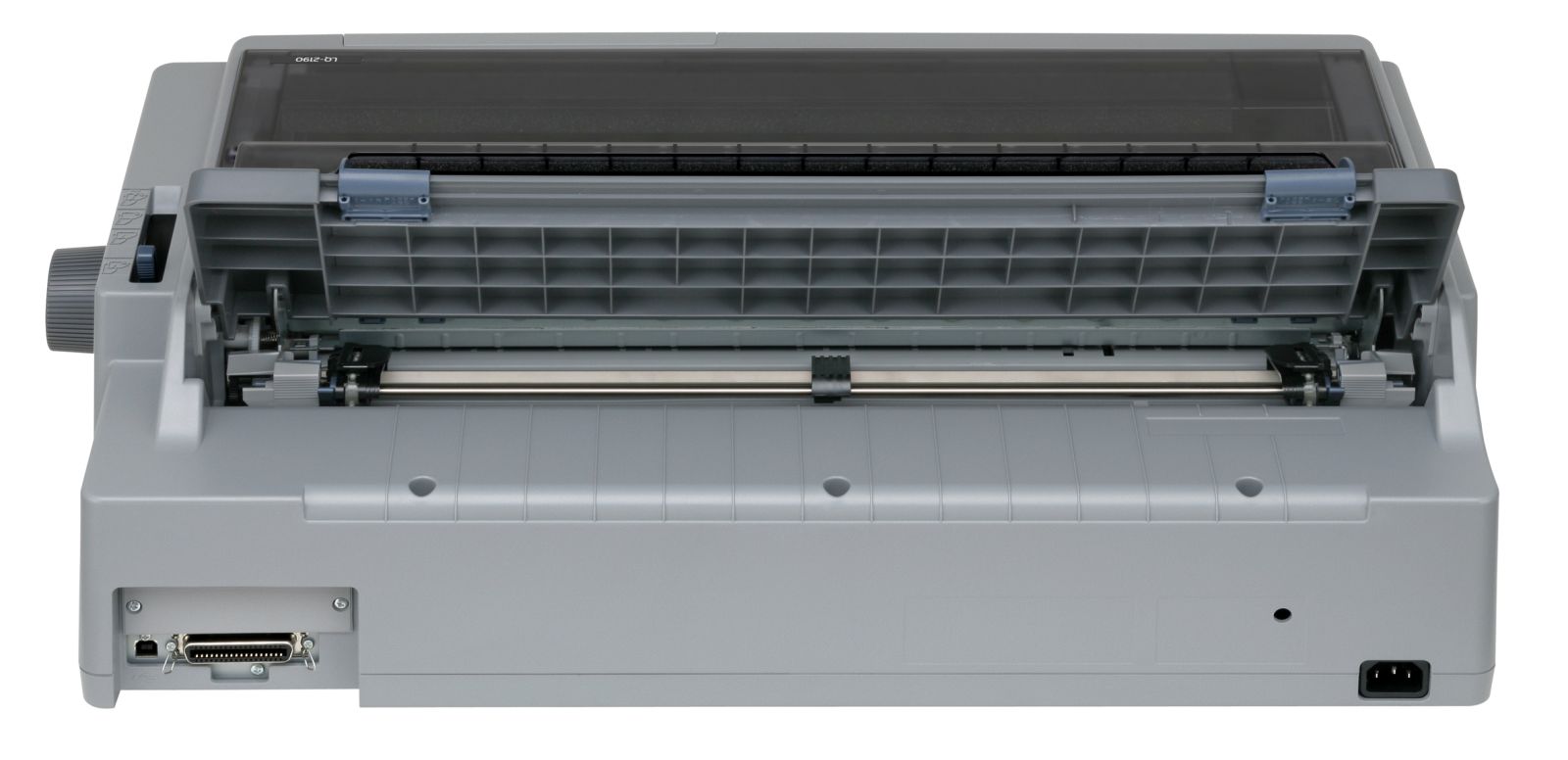

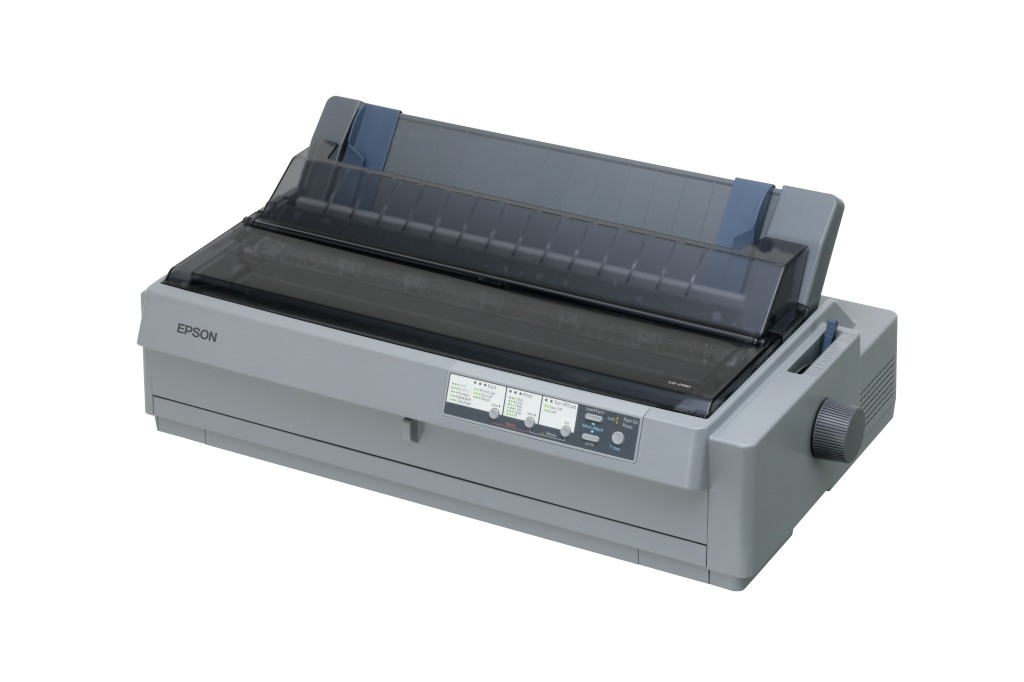

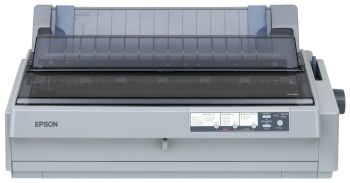

Epson LQ-2190 dot matrix printer content_copy

The Epson LQ-2190 is fast, reliable and economical. The flexible and reliable dot matrix printer ideally combines large print volumes with first-class quality. The cost-effective and reliable results make the printer ideal for invoices, delivery notes, inventory lists and labels. Reliable speed: This 24-pin wide format printer handles large print jobs with ease. Count on high-quality results on a variety of paper types. The impressive print speed of up to 576 characters per second (at 12 characters/inch) makes the printer ideal for high-volume printing. The robust device is very reliable and has a print head with a lifespan of 400 million strokes per needle and an MTBF (Mean Time Between Failure) value of 20,000 operating hours. Flexibility: Versatile front, back and bottom feed paper paths give you more flexibility with your desk space. And the additional USB port offers even more connection options. Longer ribbon life: The durable ribbon has a lifespan of up to 15 million characters and therefore rarely needs to be replaced. This reduces operating costs and maintenance times.Longer ribbon life:

Highlights

• Fast, reliable printing - Use the quality of a 24-needle printer up to DIN A3 format with 576 characters/sec.
• Multi-layer documents - Handles up to 6-layer forms (1 original + 5 carbon copies)
• Paper management - Paper paths with front, back and bottom feeds
• Print Speed Enhancer - For faster printing of graphic data under Windows
• Easy connectivity options - Standard USB and parallel port

Consumables

• Consumables type: Ribbon
• Consumables highlights: Epson SIDM Black ribbon cassette for LQ-2x70/2x80/FX- 2170/2180 (C13S015086) (C13S015086)

Product type

• Standard printer
• ear category (ElektroG): relevant, category 6: Small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Print function

Printer

• Compatible operating systems: Windows
• Printing technology: Needle
• Print resolution height: 360 dpi
• Print resolution width: 180 dpi
• Printer highlights: Print speed LQ: 10 cpi: 120 characters/s, 12 cpi: 144 characters/s

Ports

• USB standard: 2.0
• Data interfaces: Parallel port

Power supply

• Mains
• Input voltage: 220 V
240 V

• Power consumption operation: 46 W
• Power consumption standby: 3 W

Paper supply

• Printable media: plain paper, labels, envelopes
• Printable paper formats: A3, A4, A5, A6 (postcard)

Basic properties

• Color : Gray
• Height: 268 mm
• Length/Depth: 405 mm
• Width: 693 mm
• Weight: 13 kg
• icecat Import: 2022/08/08

Scope of delivery

• Epson LQ-2190
• Power cable
• Ribbon
• Installation instructions
• Operating instructions (CD )
• Software (CD)
• Drivers and utilities (CD)

Endurance
Print head	24-pin
Print direction	Bidirectional
Print head life	400 million characters
Ribbon life (black, draft)	15 million characters
Mean time between failures (MTBF)	20000 h
Features
Product colour	Grey
Buffer size	128 KB
Sound pressure level (printing)	54 dB
Page description languages	Epson ESC/P2, PPDS
Country of origin	Indonesia
Logistics data
Products per pallet	14 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.21 m
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	2 pc(s)
Products per pallet (UK)	14 pc(s)
Pallet length (UK)	120 cm
Pallet width (UK)	100 cm
Pallet height (UK)	2.21 m
Harmonized System (HS) code	84433210
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Other features
Print technology	Dot matrix
Needles	24
Packaging data
Quantity per pack	1 pc(s)
Package width	295 mm
Package depth	750 mm
Package height	520 mm
Package weight	15.48 g
Paper handling
Maximum print size	A3 (297 x 420 mm)
Paper tray media types	Envelopes, Labels, Roll
Ports & interfaces
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Ethernet
Power
Power consumption (typical)	46 W
Power consumption (standby)	3 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Printing
Maximum resolution	360 x 180 DPI
Maximum printing width (columns)	136
Maximum print speed	576 cps
Maximum print speed (draft)	432 cps
Maximum print speed (LQ)	144 cps
Character pitch	10,12 cpi
Maximum number of copies	6 copies
Built-in barcodes	Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Bitmap fonts	Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Script, Script C
Scalable fonts	Roman, Roman T, Sans Serif, Sans Serif H
Colour
System requirements
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP Home x64
Bundled software	Epson Status Monitor
Technical details
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	693 mm
Depth	405 mm
Height	268 mm
Weight	13 kg

---
