EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors

1.374,25 EUR
( 1.635,36 EUR incl. VAT ) ≈ £1,177.73 \| ≈ $1,561.15 plus delivery charges: 53,00 €

Made to order · Delivery time approx. 20 workdays
1x EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors 1.635,36 €
Printing view Bookmark Wholesale Inquiry
End-Of-Life:	29. Jul 2026
Lieske Part No.:	1440022
Mfg Part No:	50275561
Weight:	0.4 kg
Type:	LEAKCOMP HP

Further Mains filter from EPA Further products in category Mains filter All products of EPA

Product information for EPA 50275561:

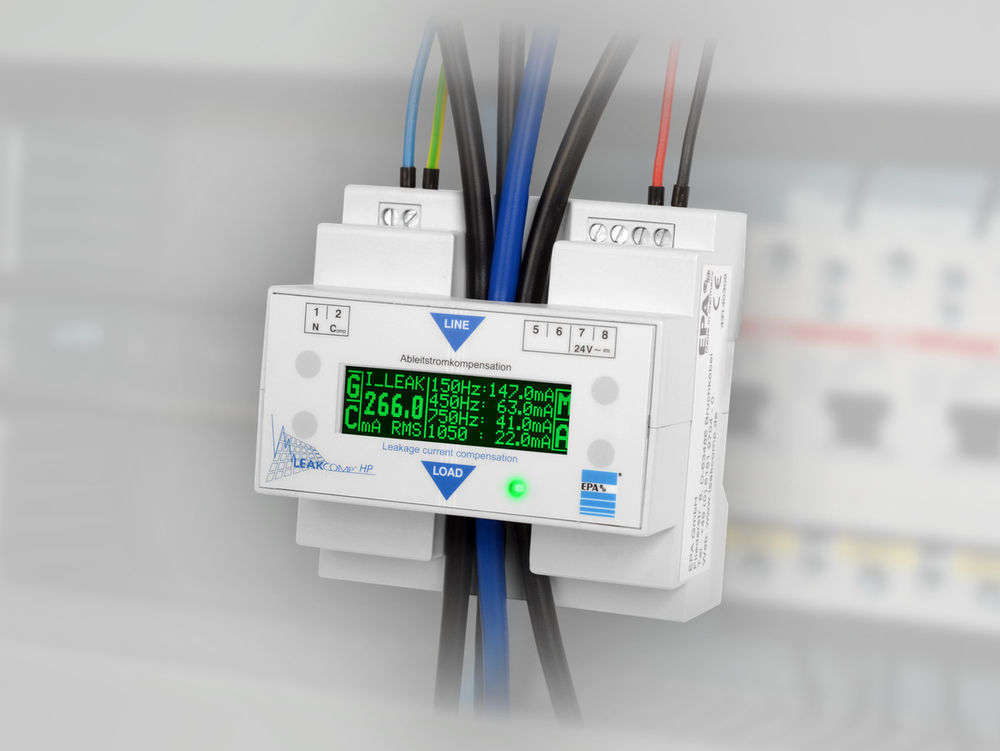

Active leakage current compensator for operational leakage currents up to 500 mA (RMS). Compensates leakage currents by active anti-phase current injection into the protective earth. Enables use of RCDs (30 mA) in systems with high leakage currents. For 3-phase TN networks with neutral conductor. Increases operational safety of systems with multiple frequency converters.

Technical Data:

Network types: TT / TN-S system
Rated voltage: 200–480 VAC (±10%), 3-phase
Rated frequency: 50 Hz (±1%)
Rated current: ≤125 A
Supply voltage: 24 V AC/DC (±10%), 0.5 A
Power loss: <15 W
Compensation freq.: 150, 450, 750, 1050 Hz
Compensation current: max. 500 mA RMS
Protection: IP20
Mounting: DIN EN 50022 rail
Ambient temp.: +10 to +55°C (operation); −25 to +70°C (storage)
Internal CT: Ø 25 mm (max. 4 × 25 mm²)
Approvals: CE, RoHS
Standards: EN 61326-1, EN 55011 Cl. A Gr. 1
Dimensions: 91 × 89 × 59 mm (L×W×H); approx. 400 g

Please note...

We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.

Questions & answers

What is the delivery time of EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors?

The article EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of EPA 50275561 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors always at the best possible price. We can give you a discount of 2% on EPA LEAKCOMP HP leakage current compensation device for networks with neutral conductors if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
