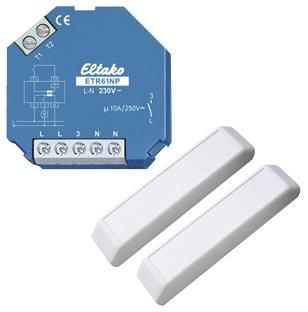

Eltako 61100631 ELT ETR61NP-off relay with 230V + FK, FK window contact. 1 S is not pot.frei 10 content_copy

1 normally open contact, not potential-free 10A/250V AC. With window contact. 230V LED lamps up to 100W, incandescent lamps 2000W. Standby loss only 0.7 watts. For built-in installation. 45mm long, 45mm wide, 18mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Control input with internally generated low voltage 24V DC. With an isolating transformer, galvanically isolated from the power supply and the working contact (PELV). Therefore, no external low voltage power supply is required. With two L terminals and 2 N terminals for simple and quick installation. Power supply 230V. The enclosed window contact consists of a reed relay with connection terminals and a magnet. The normally closed contact opens as soon as the magnet comes closer than 25mm. Connected to terminals T1 and T2 of the ETR61NP isolating relay, the power supply of an extractor hood is switched on as long as the window is open. The ETR61NP can be placed in the flush-mounted box behind the socket for the extractor hood. Installation of the FK window contact: Lever out the inserts on the narrow side of the housing. Connect the reed relay and cut out the housing for the cable. Glue both housings in parallel at a maximum distance of 15mm and screw them on if necessary. The magnet can be rotated lengthwise in any direction relative to the reed relay.
Type: ETR61NP-230V+FK
