Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001

This image may differ from the desired article.

114,15 EUR

( 135,84 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

616356

Mfg Part No:

31800001

UPC/EAN:

4010312316719

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
5	110,73 EUR
10	107,30 EUR
15	103,88 EUR
20	100,45 EUR

Further EIB material from Eltako Further products in category EIB material All products of Eltako

Product information for Eltako 31800001:

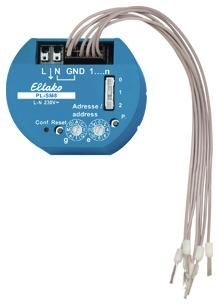

PPowerline sensor input with 8 channels. 53x43mm, 25mm deep, for installation in 58mm switch boxes. 8 sensor inputs with internal low voltage. Standby loss only 0.5 watts. For controlling and switching at different locations. Only use potential-free switching elements. Internal low voltage at the sensor inputs. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above this there is a slide switch as a configuration switch. Position 0: 2 adjacent inputs each as direction buttons for UP/DOWN or ON/OFF. Position 1: All sensor inputs work individually as normally open contacts. Position 2: All sensor inputs work individually as buttons. This setting always affects all 8 inputs. The setting can only be changed after a reset. To the left of the rotary switches there is a red LED that shows all activities. Next to it is the reset button and to the right of it a service pin. Functions as per the operating instructions. The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm². The addresses of the 8 inputs can also be freely assigned using the SIENNA-Professional PC software if necessary. The socket strip at the top with 9 strands with wire end ferrules is plugged in. 8 control inputs with internal low voltage.
Type: PL-SM8

Questions & answers

What is the delivery time of Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001?

The article Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eltako 31800001 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001 always at the best possible price. We can give you a discount of 2% on Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001 we can offer you a price of 110,73 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Eltako PL-SM8 - powerline sensor input 8 channels 31 800 001 Eltako 31800001 PL-SM8 powerline sensor input, 8 channels 31,800,001	114,15 EUR
