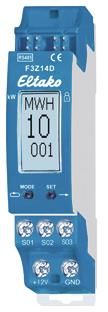

Radio meter collector for electricity, gas and water meters. For 3 S0 interfaces and/or 3 AFZ scanners, standby loss only 0.1 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. This meter collector can collect the data from up to three electricity, gas and water meters and make it available to the RS485 bus. Either for forwarding to an external computer or to send to the building radio. The connection is made either by connecting to the S0 interface of the meters or by using an AFZ scanner for each Ferraris meter. The scanner is stuck over the meter's turntable and connected with its connection cable to one of the terminals S01-S03/GND. The F3Z14D automatically detects whether an S0 interface or an AFZ is connected. The meter reading is entered via the display using two buttons, as is the pulse rate (number of pulses or revolutions per kilowatt hour or cubic meter). The settings can be locked. Meter readings can be entered and read using the PCT14 PC tool. In addition, the pulse rates can be entered, the normal display selected and the operation of the device locked. The display is divided into three fields. Field 1: Normal display is the unit of measurement of the meter reading currently shown in field 3, either kilowatt hours kWh or megawatt hours MWh or cubic meters M3 or cubic decameters DM3. Field 2: Current value of the active power in watts and kilowatts or the flow in centiliters and decaliters. The arrow on the left in display field 1 shows the automatic switching from 0 to 99W or cl/s to 0.1 to 65kW or dal/s. The display depends on the number of pulses of the meter. The minimum load that can be displayed is, for example, 10 watts at 2000 pulses per kWh and 2000 watts at 10 pulses per kWh. Field 3: Normal display is the meter reading. The three pre-decimal places and one decimal place from 0 to 999.9 and the other 1 to 3 pre-decimal places from 0 to 999 are displayed alternately every 4 seconds. Select the meter to be displayed: Press MODE and select the ANZ function with MODE. Then use SET to select the meter number that should be shown as the normal display. Confirm with MODE. Assign the device address in the bus and send learning telegrams as per the operating instructions. All Eltako electricity meters have an S0 interface and can therefore be connected to the F3Z14D electricity meter collector. Only the FWZ14-65A, DSZ14DRS-3x80A and DSZ14WDRS-3x5A are directly connected to the bus.
Type: F3Z14D
Questions & answers
What is the delivery time of Eltako 30014055 F3Z14D RS485 bus electricity meter, collector 30,014,055?
The article Eltako 30014055 F3Z14D RS485 bus electricity meter, collector 30,014,055 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 30014055 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 30014055 F3Z14D RS485 bus electricity meter, collector 30,014,055 always at the best possible price. We can give you a discount of 2% on
Eltako 30014055 F3Z14D RS485 bus electricity meter, collector 30,014,055 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Eltako 30014055 F3Z14D RS485 bus electricity meter, collector 30,014,055 we can offer you a price of 58,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
