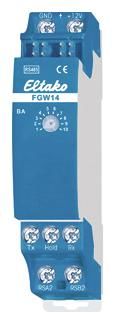

Eltako 30014017 FGW14 RS485-bus gateway content_copy

Multiple gateway. Bidirectional. Standby loss only 0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. The gateway is only 1 unit wide, but can be used multiple times: For coupling up to three FEMs, for direct connection to the PC via the RS232 interface, for connection to the bus components of the older series 12 or as a bus connector for two RS485 buses of the series 14. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. Operation in conjunction with FAM14 or FTS14KS. The hold terminal is connected to the FAM14 or FTS14KS. FEM radio receiver modules are connected in parallel to the RSA2 and RSB2 sub-bus terminals and the GND and +12V power supply terminals. Up to 10 FTS12EM push-button input modules are connected in series to the RSA2 and RSB2 sub-bus terminals, if necessary, in series with FEM radio receiver modules. The PC connection is made by connecting to the Tx and Rx terminals. Series 12 actuators are connected to the RSA2 and RSB2 sub-bus terminals. There is no hold connection here. A second series 14 bus is fed in via the RSA2/RSB2 terminals. The settings for the BA operating mode rotary switch are made in accordance with the operating instructions.
