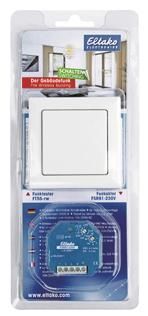

Eltako BPS55 blister pack switching FT55-wg+FSR61-230V 30000037

Blister pack switching with radio button F2T55E and radio actuator impulse switching relay FSR61-230V. Smart home sensor and smart home actuator. F2T55E: radio button pure white glossy for individual installation 80x80x15mm or installation in the E-Design55 switch system. Generates the energy for radio telegrams even when the button is pressed, therefore no connection cable and no standby loss. Radio buttons with a rocker can send two evaluable signals: press the rocker up and press the rocker down. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture with the included adhesive film. The sleeves in the box are used for screw fastening over a 55mm switch box. FSR61-230V: Radio actuator impulse switching relay 1 normally open contact potential-free 10A/250V AC, incandescent lamps 2000 watts, off-delay with switch-off warning and button permanent light can be switched on. Encrypted radio, bidirectional radio and repeater function can be switched on. Stand-by loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Local supply and control voltage 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional control button that may be mounted in front of it. A glow lamp current is not permitted.
Type: BPS55 Blister-Pack Schalten
