Eltako BPB55 blister pack shading FT55-wg+FSB61NP-230V 30000035

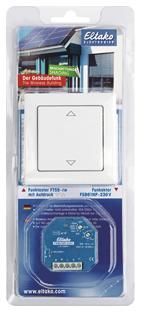

Blister pack shading consists of a battery- and cable-free radio button FT55 in pure white glossy and a radio actuator for shading elements and roller shutters FSB61NP-230V. FT55-wg: radio button, 80x80mm outside, frame inner dimensions 55x55mm, 15mm high. Generates the energy for radio telegrams even when the button is pressed, therefore no connection cable and no standby loss. The scope of delivery includes the frame R, a rocker W55, a double rocker DW55 (all the same color), a mounting frame BRF, the holding plate HP, the radio module and an adhesive film. Radio buttons with one rocker can send two evaluable signals: press the rocker up and press the rocker down. Radio buttons with double rockers can send four evaluable signals
Send: Press two rockers at the top and bottom. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture using the adhesive film provided. The sleeves in the box are used for screw fastening over a 55mm switch box. The FTB radio button lighting can then also be snapped onto the mounting plate from behind. The double rocker is snapped onto the radio module at the factory. If this is to be replaced with the large rocker, then pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker on so that the markings 0 and I on the back match the radio module. When gluing, first glue the mounting plate set with frame and fastening frame - with the notches at the top and bottom - onto it. Then snap the radio module set with rocker - marking 0 on the back always at the top - into place. Before screwing on, remove the frame with fastening frame from the mounting plate. To do this, press the notches on the mounting plate outwards. Then screw on the holding plate - with the catches at the top and bottom - snap on the frame with the fastening frame and snap in the radio module set with rocker - marking 0 on the back always at the top. For screw fastening, we recommend stainless steel countersunk screws 2.9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. The Eltako frame can be exchanged for a frame with the internal dimensions 55x55mm from another manufacturer at any time during installation. The radio module included in the radio button can be encrypted and taught in in all encryptable actuators of the 61 and 71 series, as well as in the FAM14, according to the operating instructions. The radio button encryption rocker FTVW is required for this. Encryptable actuators have the key pictogram. FSB61NP-230V: Radio actuator 230V. 1+1 normally open contact, not potential-free 4A/250V AC, for roller shutters and shading elements. Encrypted radio, bidirectional radio and repeater function can be switched on. Standby loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Local supply, switching and control voltage 230V. If the supply voltage fails, it is switched off in a defined manner. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be mounted in front of it. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change in status and incoming central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in to other actuators, the GFVS software and universal displays. With the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, including one or more central control buttons.Then the desired function of this impulse group switch is selected: GS1 = group switch with button control and release delay in seconds. A radio button with the function up-stop-down-stop can be taught in as a universal button like the local button, or a radio button like a
Type: BPB55
