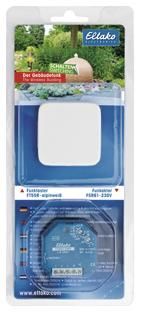

Eltako 30000021 BPS-east turn Blisterpack, FT55R-alpine white + FSR61-230V 30,000,021

Blister pack switching contains a battery- and wire-free radio button FT55R in alpine white (without frame) for Busch Reflex and Duro cover frames and a switching actuator FSR61-230V with impulse switch function. FT55R-alpine white: Radio button FT55R in alpine white for frame internal dimensions 55x55mm with radius, 15mm high. Generates the energy for radio telegrams itself when the button is pressed, therefore no connecting cable and no standby loss. For Busch Reflex and Duro cover frames. The scope of delivery includes a rocker, a double rocker, a fastening frame, a holding plate (all the same color), the radio module and an adhesive film. Radio buttons with one rocker can send two evaluable signals: press the rocker at the top and press the rocker at the bottom. Radio buttons with a double rocker can send four evaluable signals: press two rockers at the top and two at the bottom. The mounting plate can be screwed onto a flat surface or stuck to the wall, glass or furniture using the adhesive film provided. The sleeves in the box are used for screw fastening over a 55mm switch box. The FTB wireless button lighting can then also be snapped onto the mounting plate from behind. The double rocker is snapped onto the wireless module as standard. If this is to be replaced with the large rocker, pull the rocker halves forwards and do not bend them towards the middle. Then snap the large rocker onto the plate so that the markings 0 and I on the back match the radio module. When gluing, first glue the mounting plate set with frame and fastening frame - with the notches at the top and bottom. Then snap the radio module set with rocker into place - with the 0 marking always at the top on the back. Before screwing, remove the frame with fastening frame from the mounting plate. To do this, press the notches on the mounting plate outwards. Then screw on the holding plate - with the catches at the top and bottom -, snap on the frame with the fastening frame and snap in the radio module set with rocker - marking 0 on the back always at the top. For screw fastening we recommend sheet metal countersunk screws 2.9x25mm, DIN 7982 C. Both with dowels 5x25mm and on 55mm switch boxes. FSR61-230V: 1 normally open contact potential-free 10A/250V AC, incandescent lamps 2000 watts, release delay with switch-off warning and button permanent light can be switched on. Encrypted radio, bidirectional radio and repeater function can be switched on. Stand-by loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Local supply and control voltage 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, the device is switched off in a defined manner. After installation, wait for the short automatic synchronization before connecting the switched consumer to the grid.In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional control button that may be mounted in front of it. A glow lamp current is not permitted. From production week 11/14, encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change of status and incoming central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in other actuators, the GFVS software and universal displays. Scene control: With one of the four control signals from a button with a double rocker that has been taught in as a scene button, several FSR61s can be switched on or off to form a scene. With the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, one or more of which are central control buttons. In addition, wireless window-door contacts with the function of closing or opening when the window is open, wireless outdoor brightness sensors FAH and wireless motion detectors FBH. The desired function of this surge protector is then
Type: BPS Blister-Pack Sch
