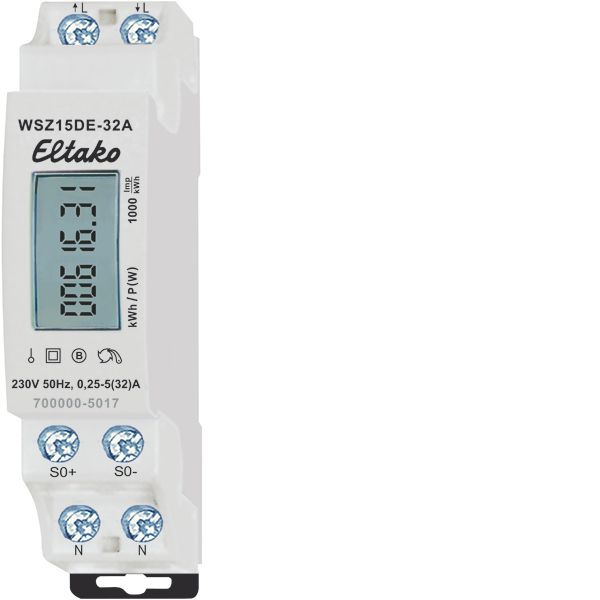

Eltako 28032615 WSZ15DE-32A active current meter 32 A uncalibrated content_copy

Maximum current 32A, standby loss only 0.4 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Accuracy class B (1%). With S0 interface. This AC meter measures the active energy based on the current flowing between the input and the output. The internal consumption of only a maximum of 0.4 watts of active power is not measured and not displayed. Like all meters without an MID declaration of conformity in Europe, not approved for monetary electricity billing. Every 30 seconds the display switches for 5 seconds from the accumulated active energy in kWh to the current consumption in watts. 1 external conductor with a current of up to 32A can be connected. If a load of more than 50% is expected, a ventilation distance of 1/2 division unit must be maintained from devices mounted next to it. Use the DS12 spacer if necessary. The starting current is 20mA. The display can only be read when there is a power supply. However, the consumption is stored in a non-volatile memory and is immediately displayed again after a power failure. Two N terminals for the safe cross-wiring of several meters. The digital display has 7 digits. Up to 99999.99kWh, two decimal places are displayed. From 100000.0kWh, only one. The power consumption is shown in the display with a bar that flashes 1000 times per kWh. Error message: If there is a connection error, an LED flashes in the display.
