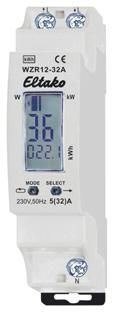

Maximum current 32A, standby loss only 0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. This AC meter with reset function measures the active energy based on the current flowing between input and output and stores the consumption in non-volatile memory. Like all meters without a MID declaration of conformity, it is not approved for monetary electricity billing in Europe. As with all Eltako AC meters, the accuracy corresponds to class B at MID (1%), the starting current is 20mA. The display is divided into 3 fields. Field 1: This display refers to the accumulated value in field 3. IIII slowly moving to the right = field 3 shows the accumulated consumption since the last reset. This is the normal display. S01 = field 3 shows the consumption for the last full hour up to S24 = 24 hours ago. T01 = Field 3 shows consumption for the last full days up to T95 = 95 days ago. Field 2: Current value of power consumption (active power) in watts (W) or kilowatts (kW). The display arrows on the left and right show the automatic switching between W and kW. Field 3: Accumulated value up to 9999kWh. Display up to 9.999kWh with 3 decimal places, from 10kWh with 1 decimal place and from 1000kWh without decimal places. Use the left MODE button to scroll through the display options and these are shown in field 1: S01 and T01 as described above. Finally, press MODE to see the country code for the set language. D for German, GB for English, F for French and ES for Spanish. Use the right SELECT button to increase the number displayed by 1 within the display options each time you press it and the corresponding value is shown in field 3. The last full hour becomes the hour before last, and so on. If the active language was selected with MODE, you can switch to another language with SELECT. If you exit the new language setting with MODE, it is active. 20 seconds after the last MODE or SELECT operation and if both buttons are pressed briefly at the same time, the program automatically returns to the normal display. Reset: Hold the MODE and SELECT buttons down for 3 seconds until RES appears in field 1. If SELECT is now pressed briefly, all memories are reset to zero. The program then automatically returns to the normal display.
Questions & answers
What is the delivery time of Eltako 28032410 AC meter, WZR12-32A?
The article Eltako 28032410 AC meter, WZR12-32A is currently
in stock
According to our experience the article is ready for dispatch within 2 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Eltako 28032410 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eltako 28032410 AC meter, WZR12-32A always at the best possible price. We can give you a discount of 2% on
Eltako 28032410 AC meter, WZR12-32A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Eltako 28032410 AC meter, WZR12-32A we can offer you a price of 69,33 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Eltako 28032410 AC meter, WZR12-32A via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
