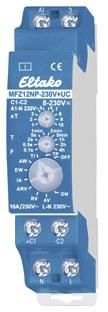

Eltako MFZ12NP-230V+UC multifunctional time relay 10 functions 1S 23100001

1 normally open contact not potential-free 16A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2300W*. Standby loss only 0.5 watts. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. Contact switching at zero crossing to protect the contacts and lamps. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Control voltage 230V and additional galvanically isolated universal control voltage 8..230V UC. Supply and switching voltage 230V. Very low switching noise. Times adjustable between 0.1 seconds and 40 hours. Functions F: RV = release delay. AV = response delay. TI = clock generator starting with pulse. TP = clock generator starting with pause. IA = pulse-controlled response delay. EW = Wiping contact. AW = Wiping contact. ARV = Response and release delay. ON = Permanently ON. OFF = Permanently OFF. The LED under the upper rotary switch provides information about the contact position as the time elapses. It flashes as long as the working contact is open and lights up constantly as long as it is closed. The time base T is set using the middle locking rotary switch T. The base values available are 0.1 second, 0.5 seconds, 2 seconds, 5 seconds, 1 minute, 2 minutes, 5 minutes, 1 hour, 2 hours and 4 hours. The total time is the time base multiplied by the multiplier. The multiplier xT is set using the upper locking rotary switch xT and is between 1 and 10. This means that times between 0.1 seconds (time base 0.1 seconds and multiplier 1) and 40 hours (time base 4 hours and multiplier 10) can be set. * The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced as follows: up to 2 seconds to 15%, up to 2 minutes to 30%, up to 5 minutes to 60%.
Type: MFZ12NP-230V+8..230V
