Eltako 23100001 MFZ12NP-230V+UC multifunction timer relay 10 functions 1NO

Your rating:
Average rating
product review for Eltako 23100001 MFZ12NP-230V+UC multifunction timer relay 10 functions 1NO
( 4.5 / 5 ) 39 ratings
Eltako 23100001
This image may differ from the desired article.
Eltako 23100001Eltako 23100001
62,94 EUR 65,59 EUR
( 74,90 EUR incl. VAT )
≈ £52.68  |  ≈ $69.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Eltako 23100001 MFZ12NP-230V+UC multifunction timer relay 10 functions 1NO
Lieske Part No.:401003
Mfg Part No: 23100001
UPC/EAN: 4010312602935
Weight:0.0914 kg
Type:MFZ12NP-230V+UC
Graduated prices net
From piecesPrice per pieces
659,16 EUR
1255,39 EUR
2451,61 EUR
3647,83 EUR

Product information for Eltako 23100001:

The Eltako MFZ12NP-230V+UC is a modular device for controlling lighting systems, particularly for stairway lighting installations, with a wide range of adjustable functions. It is a multifunctional time relay with a non-potential-free closing contact, designed for mounting on a DIN-EN 60715 TH35 support rail. The device occupies a mounting width of 18 mm and depth of 58 mm and is designed for use in electrical installations where precise time-controlled switching is required.

Applications
This device is suitable for controlling 230V LED lamps up to a power of 200W and incandescent lamps up to 2300W. The maximum load power, however, depends on the set delay or cycle time: full load can be used for times of 5 minutes or longer. For shorter times, the maximum load is reduced – to 15% at up to 2 seconds, 30% at up to 2 minutes, and 60% at up to 5 minutes. Typical applications are in residential and commercial buildings where automated lighting control with variable time delays or cycling functions is required.

Functions and Features in Detail
The time relay offers 10 different functions, selectable via a rotary switch: Delayed Release (RV), Delayed Operation (AV), Pulse Generator starting with impulse (TI), Pulse Generator starting with pause (TP), Impulse-Controlled Delayed Operation (IA), On-Trigger (EW), Off-Trigger (AW), Delayed Operation and Release (ARV), Continuous ON, and Continuous OFF. These functions allow flexible adaptation to various requirements, such as controlling stairway lights that remain on for a specific time after activation.

Technology Explained Simply
The device is based on hybrid technology, combining the advantages of wear-free electronic control with the high power capacity of a special relay. The contact switching occurs at zero crossing, extending the life of the contacts and connected lamps. The supply and switching voltage is 230V, with an additional galvanically isolated universal control voltage of 8 to 230V UC available. The device features very low switching noise, making it suitable for sensitive environments. Standby power consumption is only 0.5 W, ensuring energy-efficient operation.

Compatibility and Accessories
The device is designed for mounting on a DIN-EN 60715 TH35 support rail and can therefore be integrated into standard installation enclosures. The 230V control voltage and additional universal control voltage 8–230V UC allow flexible connection to various control sources. No special accessories are required, as all functions and connections are directly available on the device.

Mounting and Installation

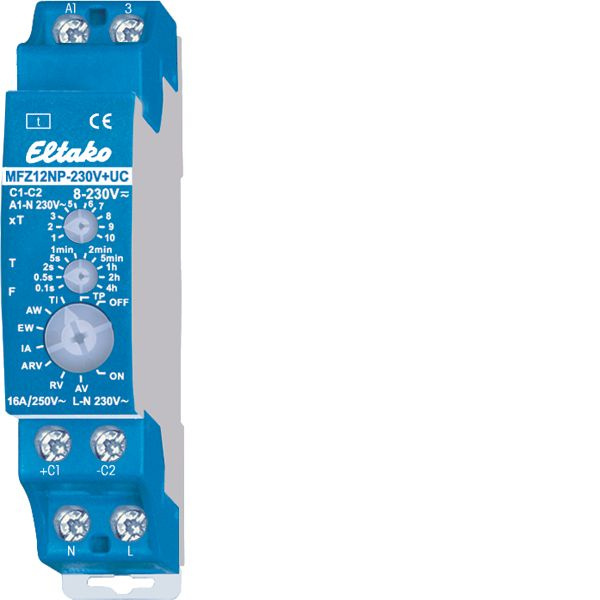

Mounting is done by inserting into a DIN-EN 60715 TH35 support rail. The device is designed for use in electrical distributions, with electrical connections to be made in accordance with applicable standards and regulations. Time function settings are adjusted via three detented rotary switches: the top switch selects the multiplier xT (1 to 10), the middle switch selects the time base T (0.1 s to 4 h), and the bottom switch selects the function F. The LED below the top rotary switch indicates contact position: it blinks when the contact is open and remains lit when closed.

Operational Advantages
The combination of hybrid technology and zero-crossing switching ensures high reliability and long service life. Adjustable times from 0.1 seconds to 40 hours allow precise adaptation to different requirements. The low standby power of 0.5 W reduces energy consumption in idle state. The clear indication of contact position via the LED simplifies commissioning and maintenance.

General
Switching function1 normally open contact, not potential-free
Maximum load200 W
Operating voltage230 V
Control voltage230 V
Universal control voltage8..230 V
Stand-by loss0,5 W
Switching typeZero-crossing
Time range0.1 seconds to 40 hours
FunctionsRV, AV, TI, TP, IA, EW, AW, ARV, ON, OFF
Time base0.1 s, 0.5 s, 2 s, 5 s, 1 min, 2 min, 5 min, 1 h, 2 h, 4 h
Multiplier1 to 10
IndicationLED
MountingDIN-EN 60715 TH35
