ELSYS · LoRa · LoRAWAN ELT-2 Outdoor Sensor Analog or digital signals. Analogue 0-10V in (without antenna)

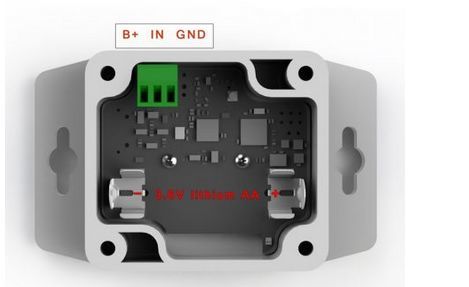

Elsys ELT2 analog/digital outdoor sensor
Overview
The ELT-2 is the ideal sensor for measurements in highly developed locations or under extreme weather conditions. It is easy to install and configure to form your solution. ELT-2 has two generic inputs. You can configure ELT-2 for external temperature sensors, pulse counting, analog input 0-10V, digital input, water leak, switch, distance sensor, soil moisture sensor and many more options. The ELT-2 can be equipped with additional modules to provide additional functions such as external PT1000 sensors, load cell input or output control.
Battery life is estimated to be up to 10 years, but depends on sampling interval, transmission interval, data rate and environmental factors. It is powered by a 3.6V AA lithium battery. This is not included in the delivery!!
All our sensors are equipped with NFC (Near Field Communication) for easy configuration with an Android phone. You can change the sample rate, data rate, encryption key, trigger, activation and much more in our Sensor Settings application. All of our sensors are built on Semtech's LoRaWAN® stack. Features Near Field Communication - All Elsys sensors are equipped with NFC for easy configuration with an Android phone. You can change the sample rate, data rate, encryption key, trigger, activation and much more. All changes can be made using our Sensor Settings application. The battery lasts up to 10 years -Our sensors have a remarkably good battery life. With this sensor it can last up to 10 years. How long the battery actually lasts depends on the sampling interval, the transmission interval, the data rate and environmental factors.
!!! Battery not included and must be ordered separately!!! ADC Module - The ADC module fits into the ELT-2 and is intended for connecting PT1000 platinum sensors or as a universal bridge amplifier. Install the ADC module in the ELT-2 to measure extreme temperatures or connect a load cell. EXT Module - With the EXT module installed, the ELT-2 can be used as a Class C or Class A device. Add this module to the ELT-2 to control external sensors such as lightning, external power (o - 10V) or actuators/relays. ApplicationSmart cities Agriculture Industries Extreme weather conditions Exposed areas (e.g. containers) Technical dataOperating temperature: -40° - +60° C Configuration: via downloading or NFC Protection class: IP67 Operating humidity: 0 - 100% RL Power supply: 1 x 3.6V lithium battery (changeable) Measured variables: analogue, digital, pulse counter, I/O, temperature, humidity, acceleration and atmospheric pressure
