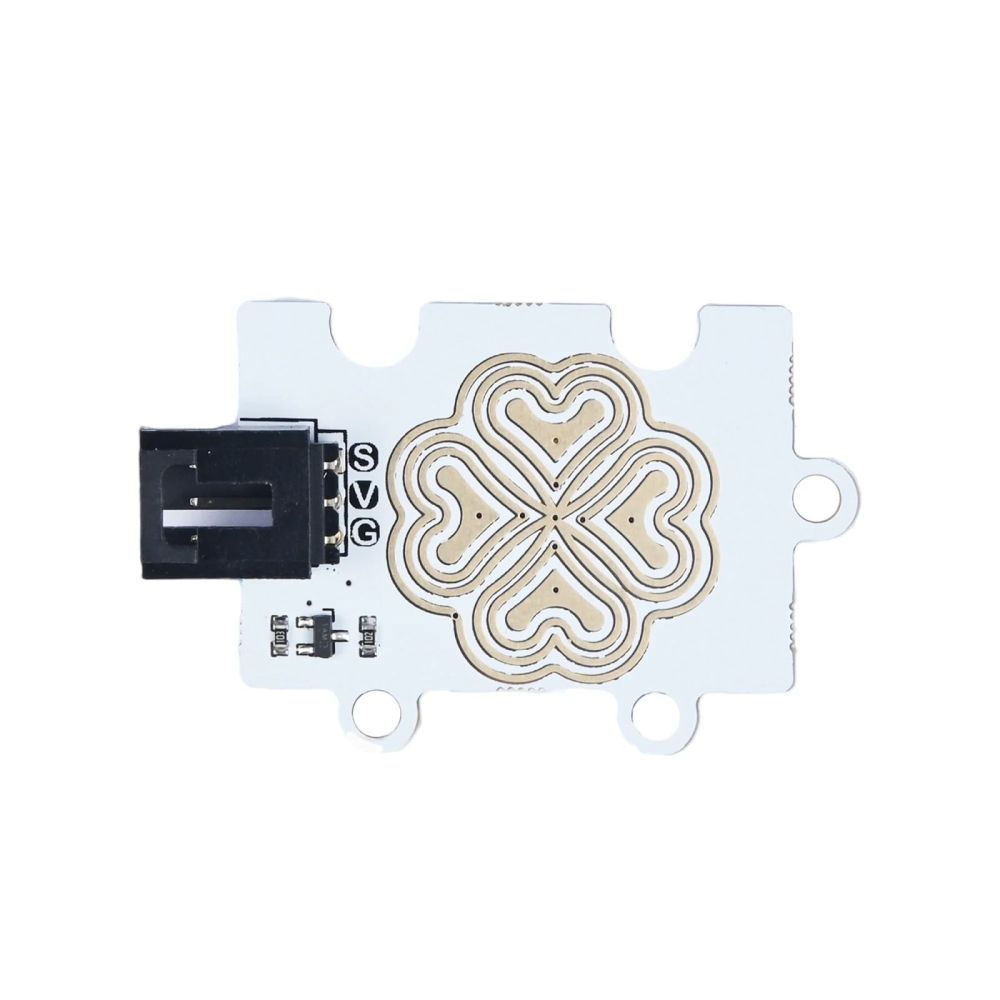

Elecfreaks EF04024 Octopus Rain/Steam Sensor

Your rating:
Average rating
product review for Elecfreaks EF04024 Octopus Rain/Steam Sensor
( 0 / 5 ) 0 ratings
Elecfreaks EF04024
This image may differ from the desired article.
1,66 EUR
( 1,98 EUR incl. VAT )
≈ £1.38  |  ≈ $1.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >50 pieces
1x Elecfreaks EF04024 Octopus Rain/Steam Sensor
Lieske Part No.:823578
Mfg Part No: EF04024
Weight:0.005 kg
Graduated prices net
From piecesPrice per pieces
501,60 EUR
1001,54 EUR
2501,47 EUR
5001,41 EUR

Product information for Elecfreaks EF04024:

The Octopus Rain/Steam Sensor from Elecfreaks is an analog sensor for detecting humidity, rain, and water vapor. The module features a sensitive sensor surface that reacts directly to water or air humidity and generates an analog output signal, the strength of which increases proportionally to the measured humidity. The simple interface with three connections – Signal, VCC, and GND – allows for direct connection to microcontrollers such as micro:bit or Arduino. The plug-and-play design of the Octopus series reduces setup effort and is particularly suitable for educational purposes and maker projects where quick commissioning is required.

Applications

The sensor is suitable for applications in environmental monitoring, smart gardening, and weather stations. It can, for example, be used to monitor soil moisture in plant cultures or to detect precipitation outdoors. The high sensitivity and fast response time enable precise and timely detection of humidity changes. Additionally, the sensor surface can also be used as a simple touch sensor, increasing the versatility of the module in interactive projects.

Functions and Features in Detail

The sensor surface consists of a material that reacts to moisture and changes its electrical resistance accordingly. This resistance change is converted into an analog voltage signal, which is transmitted to the microcontroller via the Signal connection. The output voltage is proportional to the humidity concentration, allowing for quantitative evaluation of the measured values. The three connections (Signal, VCC, GND) are standardized and compatible with common development environments.

Technology Explained Simply

The sensor operates on the basis of an analog sensor, which does not require digital signal processing but instead delivers a continuous voltage signal. This signal must be converted by the control unit (e.g., Arduino) via an analog-to-digital converter (ADC) into digital values to be processable. The sensitivity of the module is designed to detect even slight changes in humidity. The response time is short, allowing environmental changes to be detected quickly.

Compatibility and Accessories

The sensor is compatible with various microcontrollers, especially micro:bit and Arduino. Connection is made via the three connections (Signal, VCC, GND), with the supply voltage (VCC) being provided by the control unit.

Mounting and Installation

Installation is done by directly connecting the three connections to the corresponding pins on the microcontroller board. No additional components or tools are required. The sensor surface should be freely accessible to ensure uninterrupted humidity detection. When used outdoors, care should be taken to prevent mechanical damage to the sensor surface.

Advantages in Operation

The sensor is characterized by its easy handling, high sensitivity, and fast response time. The plug-and-play functionality reduces the entry barrier for users without in-depth electronics knowledge. Its use in educational projects is particularly advantageous, as the interface is intuitive to understand. The versatility of the module, which can be used both as a humidity sensor and as a touch sensor, increases its utility in various application scenarios.

General
Sensor typeAnalog sensor
Connection3-Pin
ConnectionsSignal, VCC, GND
Output signalAnalogue
Response timefast
Compatibilitymicro:bit, Arduino
Application rangeEnvironmental monitoring, Smart Gardening, weather stations
Additional functionTouch sensor


Questions & answers

What is the delivery time of Elecfreaks EF04024 Octopus Rain/Steam Sensor?

The article Elecfreaks EF04024 Octopus Rain/Steam Sensor is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Elecfreaks EF04024 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Elecfreaks EF04024 Octopus Rain/Steam Sensor always at the best possible price. We can give you a discount of 2% on Elecfreaks EF04024 Octopus Rain/Steam Sensor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Elecfreaks EF04024 Octopus Rain/Steam Sensor we can offer you a price of 1,60 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
