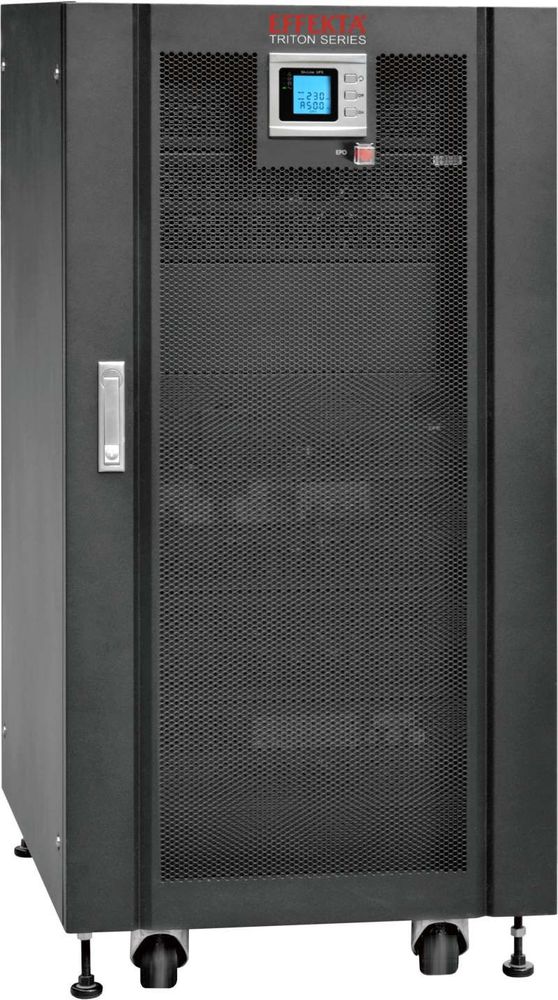

Effekta Online-USV,30000VA, 60min bei cos phi 0,7 , Triton 3/3,
|
13.727,23 EUR |
|
|
( 16.335,40 EUR incl. VAT ) ≈ £11,791.69 | ≈ $15,731.41 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226949 |
|---|---|
| Mfg Part No: | ACX33TRS30K0HM60 |
| Weight: | 1284 kg |
Product information for Effekta ACX33TRS30K0HM60:
*Auftragsbezogen, nicht Stornierbar*, USV Triton 30 kVA, Online-Dauerw. 60 min., 3/3-phasig, schwarz, Modularer Aufbau mit 1 Modul, 30kVA/27kW RS232, RS485, IGBT-Gleichrichter LAN-Powershut+M2505 Kabel mit folgenden Spezifikationen: USV-Klassifizierung: Online Dauerwandler (VFI-SS-111) nach IEC 62040-3 Gleichrichter: IGBT-Gleichrichterbrücke Eingangsleistungsfaktor: 0,99 Netzrückwirkungen: <3 % THD (Strom) Eingangsspannung: 3 x 380/400/415 VAC +15% / -45 % Eingangsfrequenz: 50 / 60 Hz, +15 % / -20 % Wechselrichter: IGBT-Wechselrichter Ausgangsleistung: 30 kVA / 27 kW Ausgangsspannung: 3 x 380/400/415 VAC, einstellbar Ausgangsfrequenz: 50 Hz ± 1% Überlastfähigkeit: bis 125% für 10 min., 125% für 10 min., 150% für 1 min. Nennausgangsstrom bei 400 V: 39 A Kurzschlußstrom: 99 A (200 ms) Crest-Faktor: 3:1 Statischer Bypass: Elektronischer Thyristorschalter, unterbrechungsfrei Überlastfähigkeit: 150% dauernd, 1000% für 20ms Batterien: 2x432V/45Ah, wartungsfreie Blei-Vlies-Akkumulatoren mit 10 Jahren Gebrauchsdauererwartung Batterietyp: 72 Stück EFFEKTA BTL12-45 Ladestrom: max. 10 A Autonomiezeit: 60 Minuten bei Nennlast und cos phi 0,8 Allgemein: Maße USV: 1600 x 600 x 780 (HxBxT in mm) Maße Bat. Schrank: 1200 x 600 x 780 (HxBxT in mm) Gewicht USV: 678 kg Gewicht Batterieschrank inkl. Akkus: 606 kg Arbeitstemperatur: 0 - 40°C, Batterie max. 20° C Wärmeverlustleistung: 1150 W Kühlluftstrom: 643 cbm/h Geräuschpegel: max. 55dB(A) Schutzart: IP20 Farbe: RAL 9004 Funkentstörung: nach DIN EN 62040-2, Klasse C3 Leistungsmerkmale: wartungsfreundlich durch Modulbauweise, dadurch sehr geringer MTTR-Wert IGBT Gleichrichter sehr großes Eingangsspannungsfenster elektronischer Bypass, manueller Servicebypass umfangreiche Kommunikationsschnittstellen (2 x RS232, 2 x RS485, EPO, 2 x Slot für Relaiskarte oder SNMP, Parallelport)
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Effekta Online-USV,30000VA, 60min bei cos phi 0,7 , Triton 3/3,?
The article Effekta Online-USV,30000VA, 60min bei cos phi 0,7 , Triton 3/3, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Effekta ACX33TRS30K0HM60 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Effekta Online-USV,30000VA, 60min bei cos phi 0,7 , Triton 3/3, always at the best possible price. We can give you a discount of 2% on Effekta Online-USV,30000VA, 60min bei cos phi 0,7 , Triton 3/3, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
