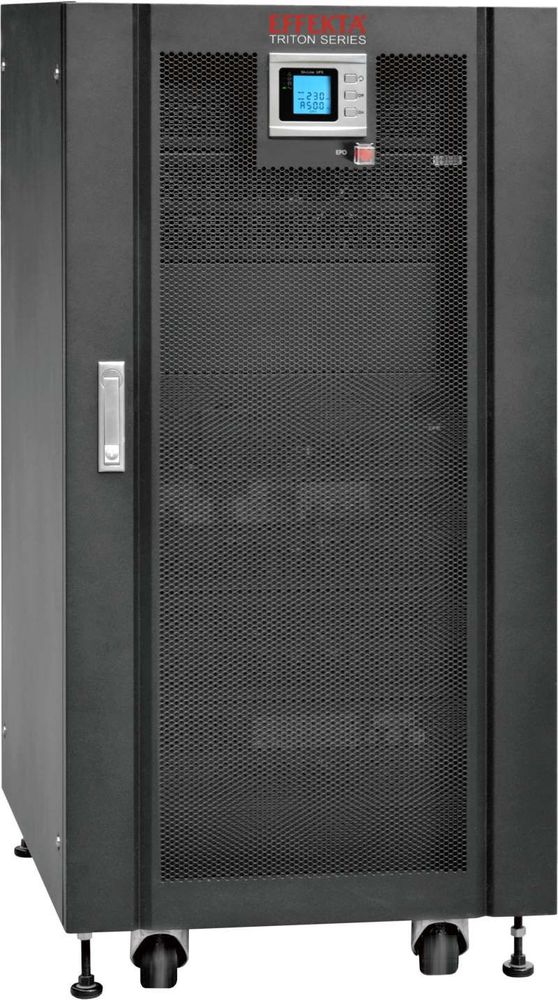

Effekta online UPS, 15000VA, 34min at cos phi 0.7, Triton 3/3,
|
7.176,75 EUR |
|
|
( 8.540,33 EUR incl. VAT ) ≈ £6,164.83 | ≈ $8,224.56 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 115712 |
|---|---|
| Mfg Part No: | ACX33TRS15K0HM34 |
| Weight: | 750 kg |
Product information for Effekta ACX33TRS15K0HM34:
*Order-related, non-cancellable*, UPS Triton 15 kVA, online continuous. 34 min., 3/3-phase, black, modular design with 1 module each 15kVA/13.5kW RS232, RS485 IGBT rectifier LAN powershut+M2505 cable with the following specifications: UPS classification: Online double converter (VFI-SS-111) according to IEC 62040-3 Rectifier: IGBT rectifier bridge Input power factor: 0.99 Mains harmonics: < % THD (current) Input voltage: 3 x 380/400/415 VAC +15% / -45 % Input frequency: 50 / 60 Hz, +15 % / -20 % Inverter: IGBT inverter Output power: 15 kVA / 13.5 kW Output voltage: 3 x 380/400/415 VAC, adjustable Output frequency: 50 Hz ± 1% overload capacity: up to 125% for 10 min., 125% for 10 min., 150% for 1 min. Nominal output current at 400 V: 19 A Short circuit current: 92 A (200ms) Crest factor: 3:1 Static bypass: Electronic thyristor switch, uninterruptible Overload capacity: 150% continuous, 1000% for 20ms Batteries: 432V/33Ah, maintenance-free lead-fleece batteries with 10-year service life expectancy Battery type: 36 pieces EFFEKTA BTL12-33 Charging current: max. 6 A Autonomy time: 34 minutes at nominal load and cos phi 0.8 General: Dimensions UPS: 1600 x 600 x 780 (HxWxD in mm) Weight UPS: 189 kg weight UPS including internal batteries: 561 kg Working temperature: 0 - 40°C, battery max. 20° C Heat loss: 575 W Cooling air flow: 504 cbm/h Noise level: max. 55dB(A) Protection class: IP20 Color: RAL 9004 Radio interference suppression: according to DIN EN 62040-2, class C3 Performance features: easy to maintain thanks to modular design, resulting in a very low MTTR value IGBT rectifier very large input voltage window electronic bypass, manual service bypass extensive communication interfaces (2 x RS232, 2 x RS485, EPO, 1 x slot for relay card or SNMP, parallel port)
| Technical details | |
| Source data-sheet | Icecat.biz |
| License | |
| License quantity | 1000 user(s) |
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Effekta online UPS, 15000VA, 34min at cos phi 0.7, Triton 3/3,?
The article Effekta online UPS, 15000VA, 34min at cos phi 0.7, Triton 3/3, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Effekta ACX33TRS15K0HM34 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Effekta online UPS, 15000VA, 34min at cos phi 0.7, Triton 3/3, always at the best possible price. We can give you a discount of 2% on Effekta online UPS, 15000VA, 34min at cos phi 0.7, Triton 3/3, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
