Effekta Logo

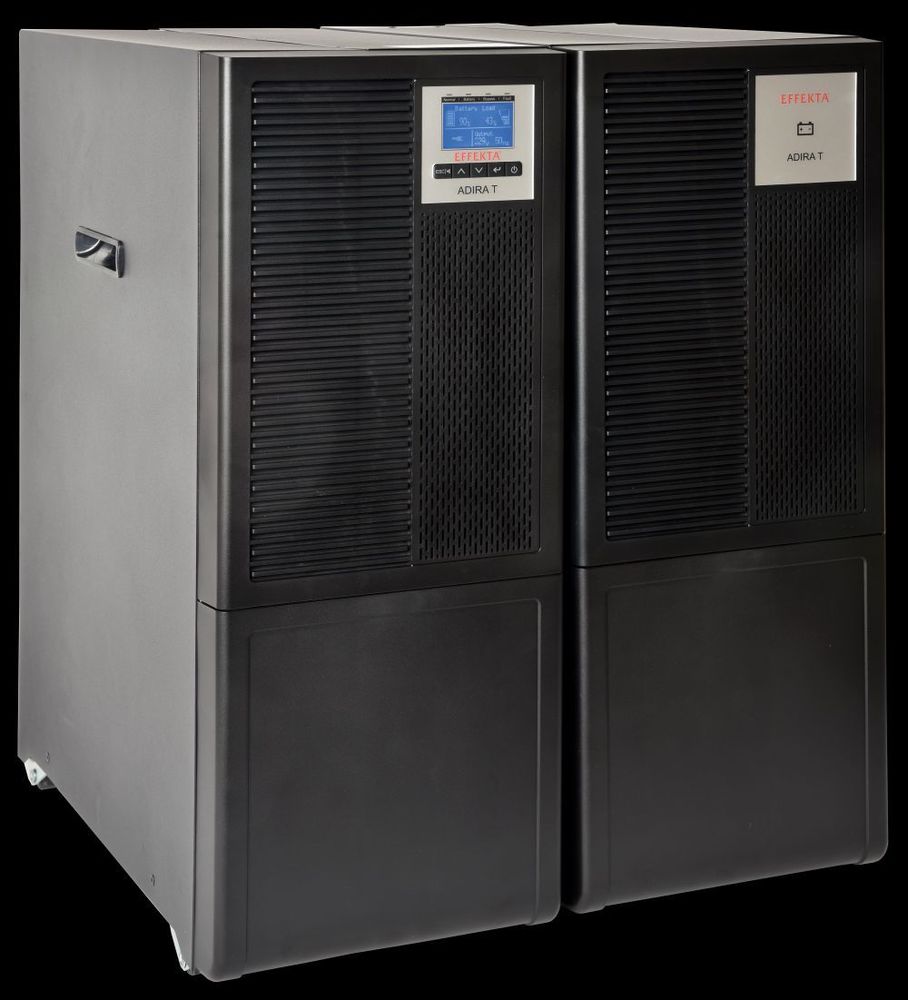

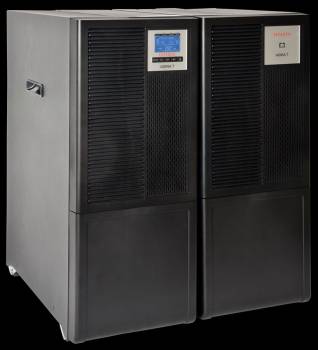

Effekta ACX11A1S10K00M15
Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase

Your rating:
Average rating
product review for Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase
( 4 / 5 ) 1 ratings
Effekta ACX11A1S10K00M15Effekta ACX11A1S10K00M15Effekta ACX11A1S10K00M15Effekta ACX11A1S10K00M15
Effekta ACX11A1S10K00M15
This image may differ from the desired article.
2.569,86 EUR
( 3.058,13 EUR incl. VAT )
≈ £2,189.52  |  ≈ $2,937.35
Delivery time on requestinfo_outline
1x Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase
Lieske Part No.:1553509
Mfg Part No: ACX11A1S10K00M15
Weight:136 kg

Product information for Effekta ACX11A1S10K00M15:

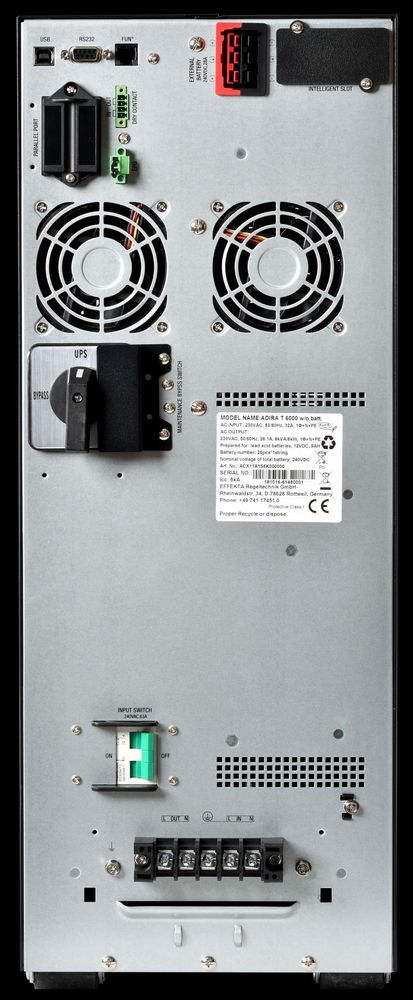

  • Order-related, cannot be canceled * UPS ADIRA T 10000, online continuous converter 10000VA/10000W, 15 min. (PF 0.7) 1/1-phase, tower download UPS software, USB+RS232 cable consisting of: 1 x ADIRA T 10000 including batteries 1 x battery pack with the following specifications: UPS classification: Online continuous converter (VFI-SS-111) according to IEC 62040-3 Output power: 10000 VA / 10000 W Input voltage: 1 x 230 (160VAC-276) VAC Input frequency: 50/ 60 Hz (45 - 66 Hz) Output voltage: 1 x 230 VAC ± 1% Output frequency: 50/60 Hz ± 0.1% Charger: adjustable up to max. 4 A Autonomy time: 15 minutes (pf 0.7), expandable Maintenance-free lead -Fleece batteries with 5-year service life expectancy. UPS dimensions: 589 x 225 x 600 (HxWxD in mm) Weight: 70 kg incl. batteries Dimensions battery pack: 589 x 225 x 490 (HxWxD in mm) Weight: 66 kg incl. batteries technology /Equipment: Online continuous converter with sine output Electronic bypass Connections: Input and output on terminals USB and RS232 interface, EPO, parallel port Signaling contact interface Communication slot for optional SNMP/relay card Performance features: Power factor 1.0 Efficiency in HE mode up to 98%, normal operation 95% Expandable battery time through external battery packs Parallel redundant operation possible Software: free download LAN-PowerShut UPS shutdown and management software for all current operating systems (incl. RS232 + USB cable)



  • Please note...
    This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

    Questions & answers

    What is the delivery time of Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase?

    The article Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase is currently not in stock and must be ordered on a per-order basis.

    According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Effekta ACX11A1S10K00M15 to our sales team for an exact delivery time.

    How can I buy the item at a lower price?

    We offer you Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase always at the best possible price. We can give you a discount of 2% on Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase if you choose payment in advance on ordering.

    We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




    Fitting accessory for Effekta ACX11A1S10K00M15 Effecta online UPS, 10000VA, 15min at cos phi 0.7, ADIRA, 1/1-phase

    Effekta accessory Shutdown PowerShut Plus NW, Win3.x/95/98/2000 Effekta LogoEffekta accessory Shutdown PowerShut Plus NW, Win3.x/95/98/2000 + Monitoring of UPS systems with potential free contacts or serial port + Optional local or network shut-down of up to several hundred computers + Graphical interface with all UPS information + ...

    Lieske Part No.: 138509
    Mfg Part No: LAN-POWERSHUT
    48,78 EUR
    Effekta LAN-POWERSHUT plus VAT
    ≈ £41.56  |  ≈ $55.76
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta accessory Sensor for SNMP adapter, temperature, Effekta LogoEffekta accessory Sensor for SNMP adapter, temperature, On order *, temperature sensor for direct connection to the SNMP adapter extenen

    Lieske Part No.: 353266
    Mfg Part No: GE/SMTCOM
    110,66 EUR
    Effekta GE/SMTCOM plus VAT
    ≈ £94.28  |  ≈ $126.48
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta zbh.Bypass Externally, 10000VA, 1phase, 63A, wall mounting, Effekta LogoEffekta zbh.Bypass Externally, 10000VA, 1phase, 63A, wall mounting, external, manual, * order-related, non refundable *

    Lieske Part No.: 534945
    Mfg Part No: ZBBEFBEINBYP6311
    354,06 EUR
    Effekta ZBBEFBEINBYP6311 plus VAT
    ≈ £301.66  |  ≈ $404.69
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta accessory Sensor for SNMP adapter Professional, temperature Effekta LogoEffekta accessory Sensor for SNMP adapter Professional, temperature On order *, temperature-humidity sensor for direct connection to the extenen SNMP adapter,

    Lieske Part No.: 574725
    Mfg Part No: GE/SMTHCOM
    206,64 EUR
    Effekta GE/SMTHCOM plus VAT
    ≈ £176.06  |  ≈ $236.19
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta accessory shutdown PowerShut Plus LizLan PowerShut-L, Li ** Effekta LogoEffekta accessory shutdown PowerShut Plus LizLan PowerShut-L, Li ** PRODUCT INFORMATION: Description: UPS management with the local network management software shutdown shutdown (operating system-wide multi-server shutdown) shutdown event-controlled display of all ...

    Lieske Part No.: 775854
    Mfg Part No: LAN-POWERSHUT-L
    25,18 EUR
    Effekta LAN-POWERSHUT-L plus VAT
    ≈ £21.45  |  ≈ $28.78
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta GE/CS141BSCBG-SL Effect e.g. SNMP adapter, internal, TP, standard, for MTD RT/RTXL, MCI, MKD RT/RTXL Effekta LogoEffekta GE/CS141BSCBG-SL Effect e.g. SNMP adapter, internal, TP, standard, for MTD RT/RTXL, MCI, MKD RT/RTXL GE/CS141BSCBG-SL, 1xTP 10/100Mbit, * Order-related order * (Same network functionality as professional version but without extended connections for peripherals) SNMP adapter Budget internal type ...

    Lieske Part No.: 929986
    Mfg Part No: GE/CS141BSCBG-SL
    277,93 EUR
    Effekta GE/CS141BSCBG-SL plus VAT
    ≈ £236.80  |  ≈ $317.67
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
    Effekta GE/CS141SCPF-SL Effect e.g. SNMP adapter, internal, TP, Professional Effekta LogoEffekta GE/CS141SCPF-SL Effect e.g. SNMP adapter, internal, TP, Professional Effecta zbh.SNMP adapter, internal, TP, Professional,
    1xTP 10/100Mbit, * Order-related order *

    Lieske Part No.: 929987
    Mfg Part No: GE/CS141SCPF-SL
    397,56 EUR
    Effekta GE/CS141SCPF-SL plus VAT
    ≈ £338.72  |  ≈ $454.41
    plus delivery charges: 53,00 €
    Delivery time on requestinfo_outline
