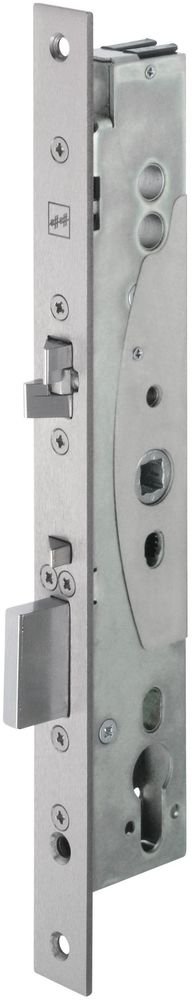

Eff Eff Fritz Fuss 709X202PZ---G41
EFF SI lock handleSt 35/24/92 PZ Universal

Security lock with handle control 709X tubular frame version, The security lock with handle control is used primarily where the advantage of a handle-controlled unlocking must be combined with the mechanical security requirements of the lock models 309X and 409X. The integrated monitoring contacts can be used to query important lock states., The bolt is retracted by the coupled external handle and the locking of the cross latch is released. When the door is closed, the control latch in conjunction with the cross latch causes the pre-tensioned bolt to be released and the cross latch to be blocked, which thus serves as an additional locking mechanism., The panic side can be set on the lock as required, as well as the choice between idle and working current., Mechanical self-locking, Mechanical sequence control between cross latch and control latch, With cross latch, can therefore be switched for doors DIN L / DIN R, Panic side can be switched, idle / working current can be switched, Burglar-resistant thanks to solid bolt with 20 mm throw, Panic function ¿ Approved according to EN 179 ¿ Approved according to EN 1125, Suitable for fire doors, Controllable outside handle, Changeover function for unlocking with a key from the outside, Monitoring functions, The locks in the 709X model series have a split handle follower and therefore require an inside handle (or a panic handle bar) and an outside handle., The lock is controlled by an impulse from a card reader, Code lock, timer, button etc.
Type: 709X202PZ---G41
