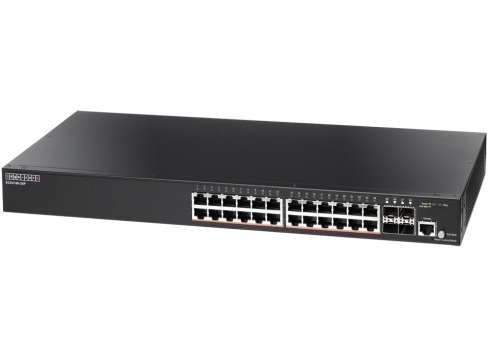

EdgeCore ECS-2100-28P 24+4-Port Gigabit PoE Switch
|
644,00 EUR |
|
|
( 766,36 EUR incl. VAT ) ≈ £536.45 | ≈ $706.47 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 101181 |
|---|---|
| Mfg Part No: | ECS-2100-28P |
| Weight: | 0.2 kg |
Product information for EdgeCore ECS-2100-28P:
Applications
This switch is suitable for use in medium to large networks, particularly in environments requiring centralized management and power delivery over the network cable. Typical applications include IP surveillance systems, VoIP telephone systems, WLAN access points, or other PoE-enabled end devices in offices, schools, industrial facilities, or public areas. The combination of high PoE budget and 24 Gigabit ports makes it especially suitable for applications where many end devices must be powered and connected simultaneously.
Functions and Features in Detail
The ECS-2100-28P offers a wide range of networking functions that enhance network stability and efficiency. These include Spanning Tree to prevent network loops, VLAN (including QinQ) for logical segmentation of network segments, LACP (Link Aggregation Control Protocol) for bundling physical connections to achieve higher bandwidth and redundancy, and IGMP Snooping for efficient multicast management. The QoS function (Quality of Service) enables prioritization of data traffic to protect critical applications such as video transmission or VoIP from delays. Integrated support for SNMP (v1, v2, v3) allows monitoring and control of the device via network management systems.
Technology Explained Simply
The 24 RJ-45 ports support Gigabit Ethernet (10/100/1000 Mbps), ensuring high data transfer rates for end devices. The four SFP slots allow the use of fiber optic transceivers to connect over longer distances or in environments with high electromagnetic interference. The PoE function (Power over Ethernet) supplies power to compatible devices via the network cable, eliminating the need for separate power sources. The IEEE 802.3af and IEEE 802.3at standards define power delivery and are widely used in IT infrastructure. The 200-watt PoE budget is sufficient to operate multiple PoE devices simultaneously. Management interfaces (CLI, Telnet, web, SNMP) enable flexible configuration and monitoring, with SNMP being particularly suitable for professional network management systems.
Compatibility and Accessories
The switch is compatible with standard Mini-GBIC modules, which can be inserted into the SFP slots to establish optical connections. The PoE function is designed for devices supporting IEEE 802.3af or IEEE 802.3at standards. Networking functions such as VLAN, LACP, IGMP Snooping, and QoS are designed for integration into existing, structured networks. The device is designed for use in 48,3 cm ( 19 inch ) racks, and the delivery includes the necessary mounting kit for rack installation.
Mounting and Installation
The switch is designed for mounting in a 48,3 cm ( 19 inch ) rack. The included mounting kit enables secure fixation in the rack. Installation involves connecting network cables to the RJ-45 ports and, if required, inserting SFP modules into the corresponding slots. Configuration is performed via the management interfaces, with the web interface offering user-friendly operation. Power supply is provided via the mains, and the PoE function supplies power to connected end devices through the RJ-45 connections.
Operational Advantages
The ECS-2100-28P offers high flexibility through the combination of 24 Gigabit ports and four SFP slots. The PoE function reduces the need for additional power supplies and simplifies end device installation. Management functions enable centralized control and monitoring, making network administration more efficient. Support for VLAN and QoS ensures structured and prioritized data transmission, improving network performance in critical applications. The integrated mounting kit simplifies rack installation, enabling quick and secure setup.
| General | |
| Number of RJ-45 ports | 24 piece |
| Number of SFP slots | 4 piece |
| Port speed RJ-45 | 10/100/1000 Mbps |
| Port speed SFP | 100/1000 Mbps |
| PoE standard | IEEE 802.3af and IEEE 802.3at |
| PoE budget | 200 W |
| Management interfaces | CLI, Telnet, Web, SNMP (v1, v2, v3) |
| Supported functions | Spanning Tree, VLAN (QinQ), LACP, IGMP Snooping, QoS |
| Scope of delivery | 19" mounting kit |
