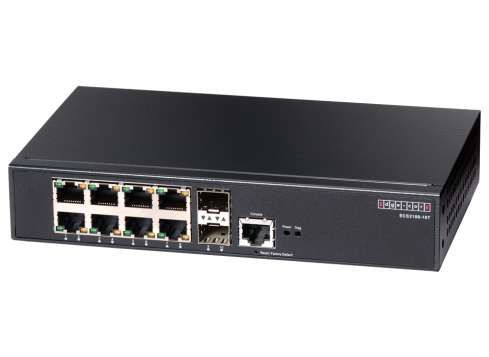

EdgeCore ECS-2100-10T 8+2-Port Gigabit Switch
|
188,10 EUR |
|
|
( 223,84 EUR incl. VAT ) ≈ £156.69 | ≈ $206.35 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 102022 |
|---|---|
| Mfg Part No: | ECS-2100-10T |
| Weight: | 0.2 kg |
Product information for EdgeCore ECS-2100-10T:
Applications
This switch is suitable for office and corporate networks where a reliable, high-performance and compact network connection is required. The combination of RJ-45 and SFP ports makes it flexible for use, such as connecting LAN segments via fibre optics or linking network components that communicate via optical connections. The fanless design reduces noise emissions and is particularly suitable for environments where a disturbance-free working atmosphere is important.
Functions and Equipment in Detail
The 8 RJ-45 ports offer Gigabit Ethernet connections and are designed for use with standard network cables (Cat5e, Cat6). The two SFP slots allow the use of Mini-GBIC modules, which are suitable for fibre optic connections or longer reach distances. The management functions via CLI, Telnet, web interface and SNMP enable detailed network control, with SNMP supporting integration into existing network management systems. Support for VLAN (QinQ) allows logical separation of network segments, improving network security and management. LACP (Link Aggregation Control Protocol) enables bundling of multiple physical connections into a single logical link, increasing bandwidth and providing redundancy. IGMP Snooping optimises multicast traffic by activating only those ports that receive multicast data. The QoS function (Quality of Service) enables prioritisation of specific data streams, for example for VoIP or video transmissions.
Technology Explained Simply
The switch operates on Layer 2 of the OSI model, meaning it forwards data packets based on MAC addresses. The fanless design ensures silent operation, as no mechanical fans are used for cooling. The SFP slots are intended for Mini-GBIC modules, which can be used for fibre optic connections. The management functions via CLI, Telnet, web and SNMP allow flexible control and monitoring of the device, with SNMP (Simple Network Management Protocol) being a standard technology for network management. Support for Spanning Tree prevents loops in the network that could lead to broadcast storms. QinQ (VLAN-in-VLAN) allows nesting of VLANs, which is useful in carrier networks or when connecting multiple customer networks.
Compatibility and Accessories
The switch is compatible with standard Mini-GBIC modules, which can be inserted into the two SFP slots. These modules enable connections via fibre optics or longer copper cables. Network management is performed via common protocols such as CLI, Telnet, web interface and SNMP, allowing integration into existing network management systems. The included 48,3 cm ( 19 inch )-mounting kit enables installation in standard rack systems.
Mounting and Installation
Installation is carried out using the included 48,3 cm ( 19 inch )-mounting kit, which allows secure fixation in the rack. The fanless design does not require additional ventilation; however, the ambient temperature should remain within the recommended operating range to ensure stable performance. Configuration is performed via the management options (CLI, Telnet, web, SNMP), with detailed steps described in the manufacturer's documentation.
Advantages in Operation
The switch provides a reliable, quiet and compact network connection with extended management functions. The combination of RJ-45 and SFP ports enables flexible network design. Support for VLAN, QoS, LACP and IGMP Snooping improves network efficiency and security. The fanless design ensures disturbance-free operation, making it particularly suitable for office environments. Integration into existing network management systems via SNMP simplifies network monitoring and maintenance.
| General | |
| Number of RJ-45 ports | 8 piece |
| Number of SFP slots | 2 piece |
| Data rate RJ-45 ports | 10/100/1000 Mbps |
| Data rate SFP slots | 100/1000 Mbps |
| Management options | CLI, Telnet, Web, SNMP (v1,v2,v3) |
| Supported protocols | Spanning Tree, VLAN (QinQ), LACP, IGMP Snooping, QoS |
| Construction type | fanless |
| Mounting | 19" mounting kit |
Questions & answers
What is the delivery time of EdgeCore ECS-2100-10T 8+2-Port Gigabit Switch?
The article EdgeCore ECS-2100-10T 8+2-Port Gigabit Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of EdgeCore ECS-2100-10T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you EdgeCore ECS-2100-10T 8+2-Port Gigabit Switch always at the best possible price. We can give you a discount of 2% on EdgeCore ECS-2100-10T 8+2-Port Gigabit Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
