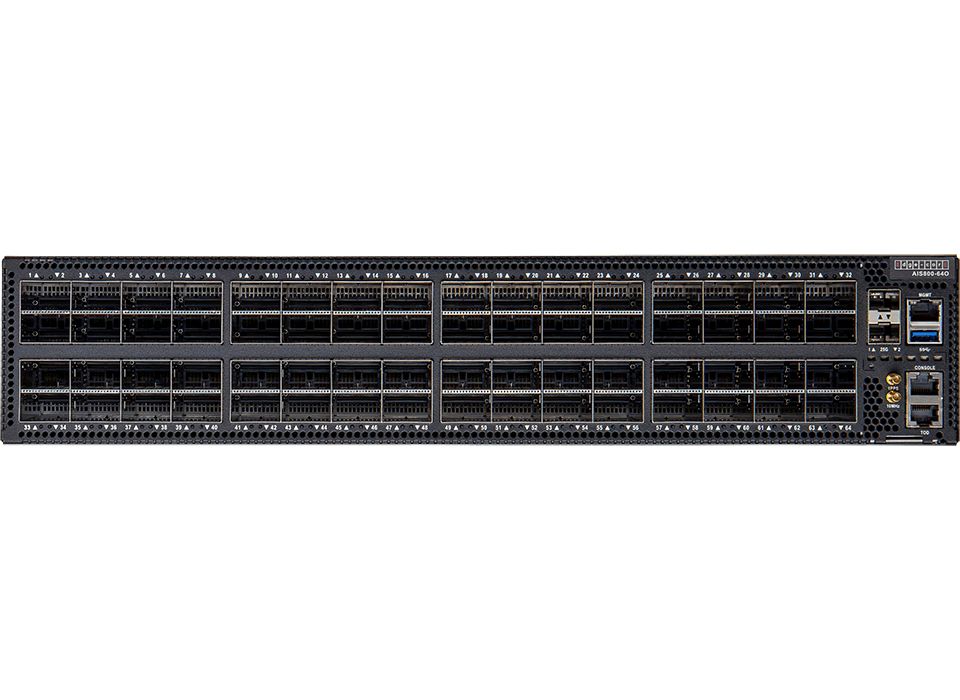

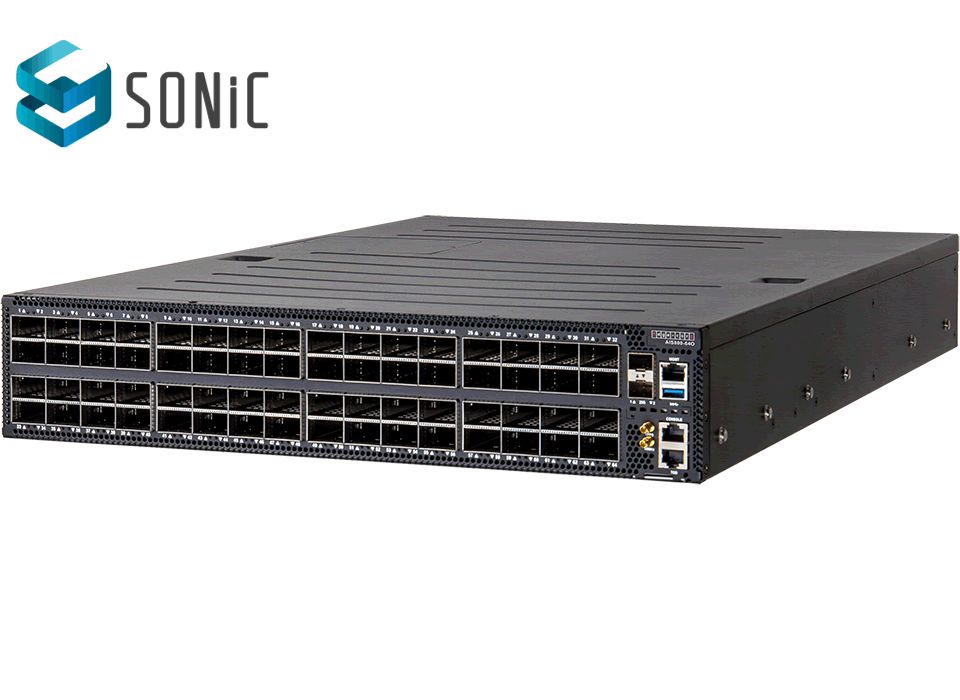

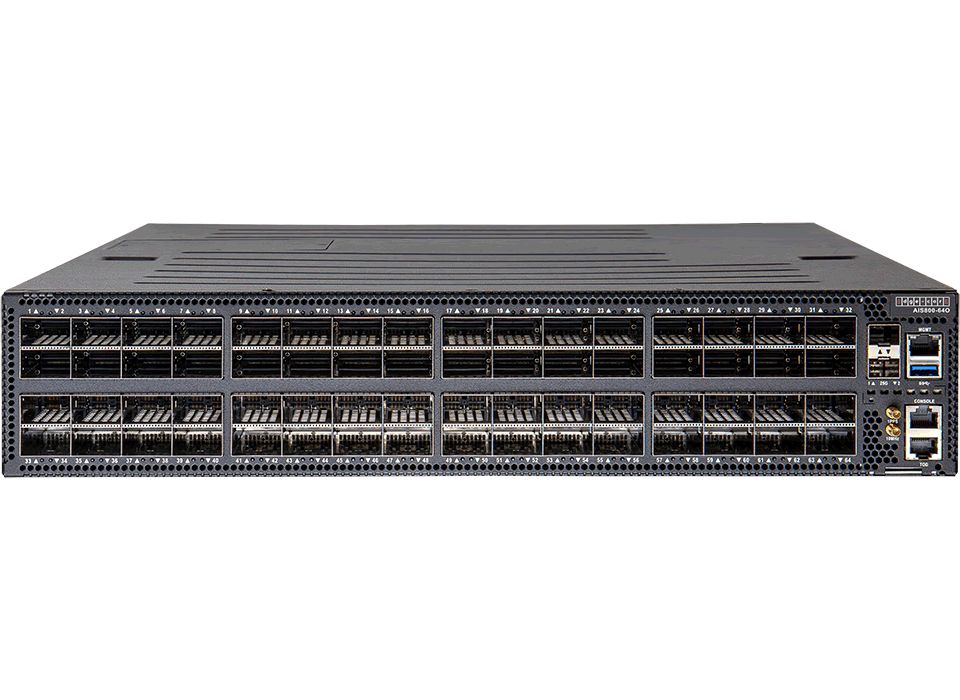

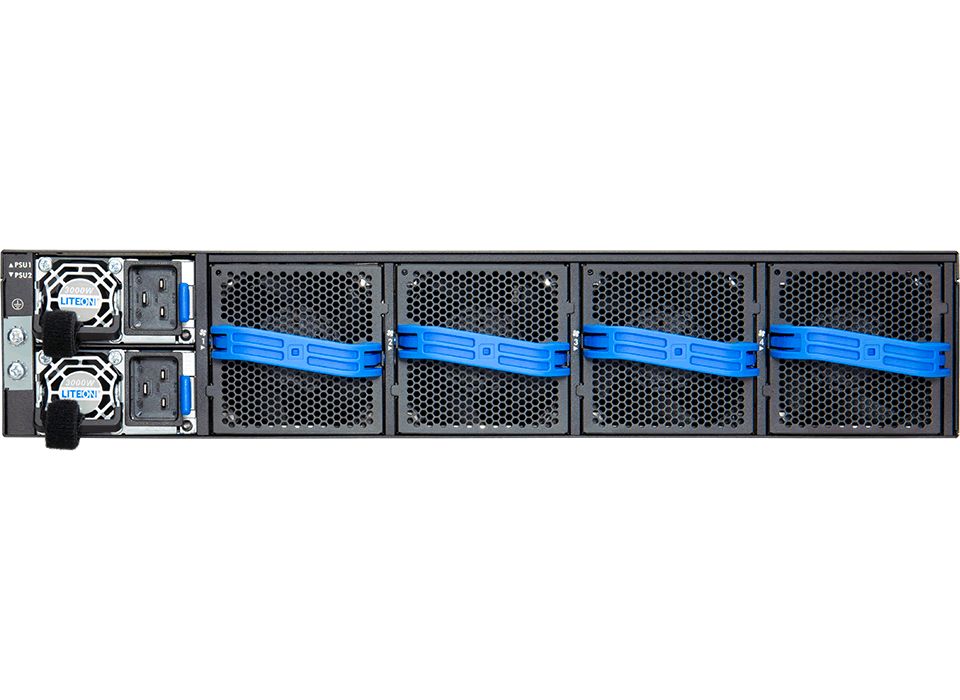

EdgeCore AIS800-64D, 64 x 800G QSFP-DD800 ports, Broadcom Tomahawk 5 51.2Tbps ASIC, Quad-core Intel Xeon® D1713NTE CPU, dual hot-swappable 3000W AC PSUs and 4 Fan Modules with Front-to-Rear airflow, rack mount kit (Back-to-front), 3 years Hardware Warranty 51.2 Tbps Bandwidth In a Single Device 64x800G or 128x400G Configuration Through Transceiver Type 2X Throughput Increased Compared to TH4 5nm Process Technology Features QSFP-DD800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE. QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE. Up to 30W power budget per QSFP-DD800 port. Incorporates Broadcom Tomahawk 5 switch series silicon. • Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB) • Advanced shared buffering • Programmable in-band telemetry • Supports end-to-end congestion control • Power efficient due to a monolithic 5nm die • Support for SRv6 • Highest Radix: Up to 320 logical ports on a single chip, low latency • Support for VxLAN RIOT • Hardware-based link failover for network resiliency and reduced job completion time BMC module with serial-over-LAN support SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel Contains e-fuses to protect transceivers and internal components 2 RU form factor Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU All ports on front PSUs and fans accessible from rear Hot-swappable, load-sharing, redundant 3000W AC/DC PSUs 4 Hot-swappable fan modules with 7+1 redundant fans Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings Compatible Software Option SONiC
Questions & answers
What is the delivery time of EdgeCore Switch full manged 64 Port • 64 x 800G OSFP800 • 48,3 cm ( 19 inch ) 2 HE • Datacenter Switch • Back-to-front • AIS800-64O-AF?
The article EdgeCore Switch full manged 64 Port • 64 x 800G OSFP800 • 48,3 cm ( 19 inch ) 2 HE • Datacenter Switch • Back-to-front • AIS800-64O-AF is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of EdgeCore AIS800-64D-AF to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you EdgeCore Switch full manged 64 Port • 64 x 800G OSFP800 • 48,3 cm ( 19 inch ) 2 HE • Datacenter Switch • Back-to-front • AIS800-64O-AF always at the best possible price. We can give you a discount of 2% on
EdgeCore Switch full manged 64 Port • 64 x 800G OSFP800 • 48,3 cm ( 19 inch ) 2 HE • Datacenter Switch • Back-to-front • AIS800-64O-AF if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
The following item has been put into your shopping cart by our system:
1x
EdgeCore AIS800-64D-AF
EdgeCore Switch full manged 64 Port • 64 x 800G OSFP800 • 48,3 cm ( 19 inch ) 2 HE • Datacenter Switch • Back-to-front • AIS800-64O-AF
38.898,22 EUR
Sum of all articles in cart
plus VAT
